RMU Components
RMU components solution, including heat shrinkable bushing boots, SF6 load switch, load break switch, bus-bar system, deadbreak separable connector systems, operating mechanism, etc. All products are from platform qualified suppliers.

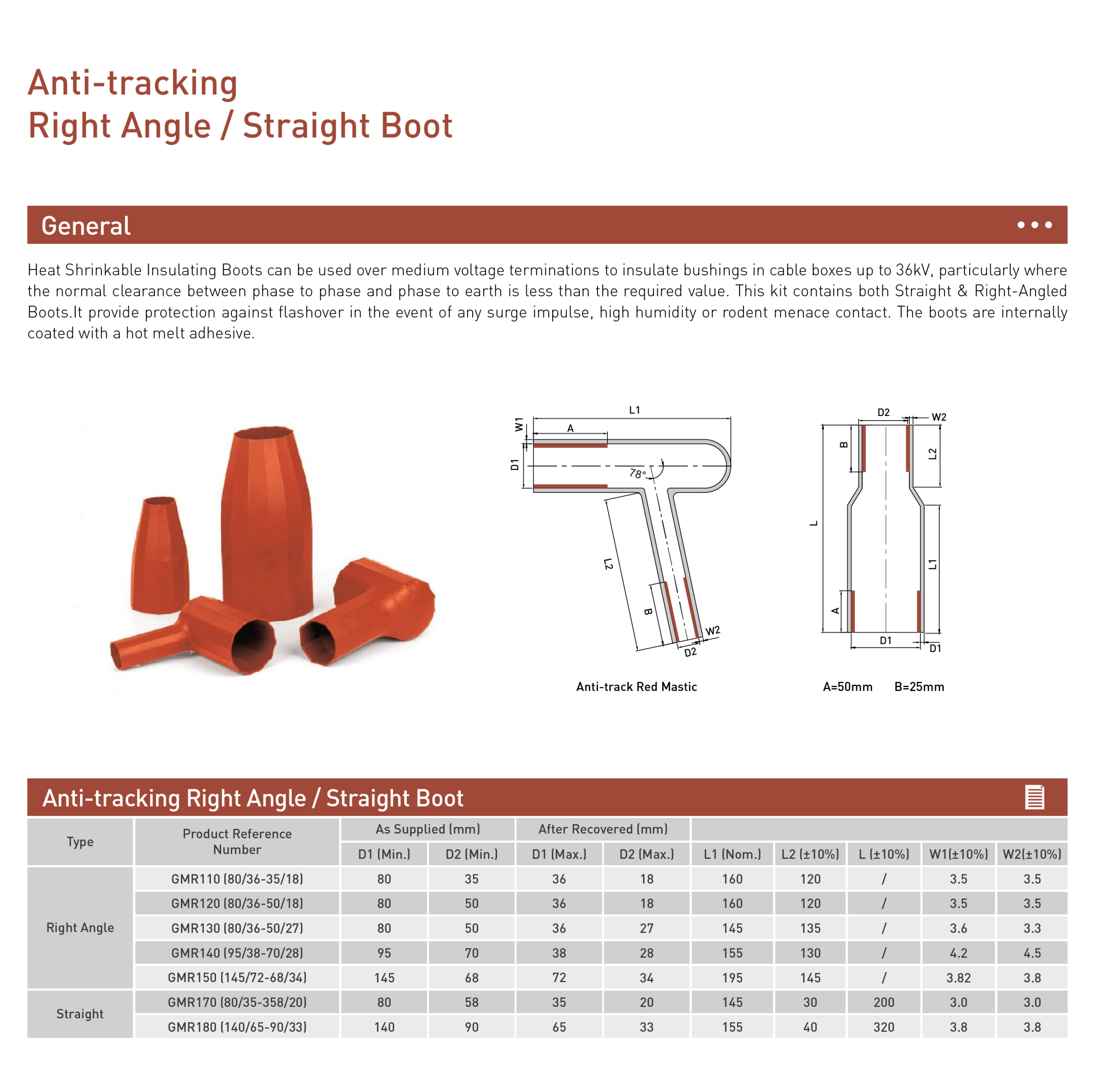

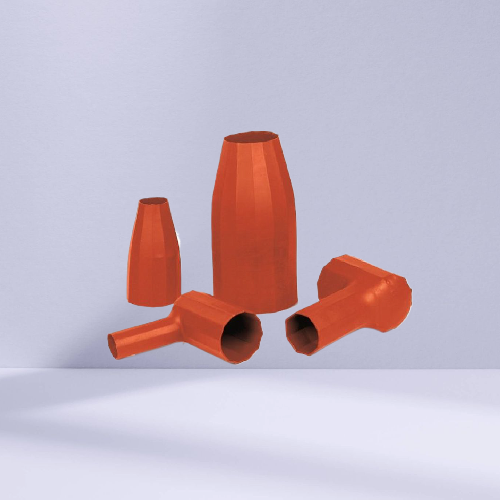

1. RIGHT-ANGLED & STRAIGHTY HEAT SHRINKABLE BUSHING BOOT
Product Name : Heat Shrinkable Right Angle/Straight Boot
Series : G4 BMR
Optional Models :
Right 120 : 80/36-50/18
RIght 110 : 80/36-35/18
Right 130 : 80/36-50/27
Right 140 : 95/38-70/28
Right 150 : 145/72-70/34
Straight 160 : 80/35-34/20
Straight 170 : 80/35-58/20
Straight 180 : 140/65-90/33
2. CIRCUIT BREAKER
Product Name : Circuit Breaker
Optional Type :
12kV : Voltage
24kV : Voltage
Rated Voltage : 12kV/24kV
Rated Current : 630A
Bus Short-time Withstand Current : 20kA/25kA
Rated Peak Withstand Current : 50KA
Short Circuit on-off Current : 50KA
Place of Original : China
Brand : GRID POWER TECHNOLOGY
3. OPERATING MECHANISM
Product Name : Circuit Breaker Mechanism
Optional Models :
Operation method : Manual
Operation method : Automatic
Rated Voltage : DC220V
Machine Life : 10000
Place of Original : China
Brand : GRID POWER TECHNOLOGY

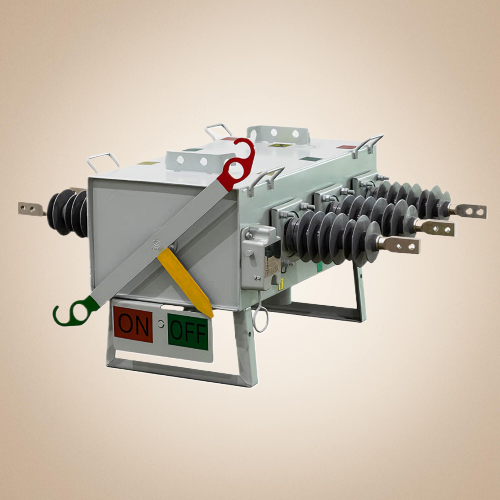

4. SF6 LOAD SWITCH
Product : 33kV,630A SF6 Load-break Switch 25kA,5000 Times,375mm,1500mm
Model No. : FGW01-33T/630-25
Standard : 01-SDMS-01 REV.02 &30-SDMS-05 REV.0
Rated Voltage : 33kV
Rated Current : 630A
Rated Breaking Current : 25kA
Mechanical Life : 5000 Times
Interphase Spacing : 375mm
Minimum Nominal Creepage Distance : 1500mm
Brand : GRID POWER TECHNOLOGY

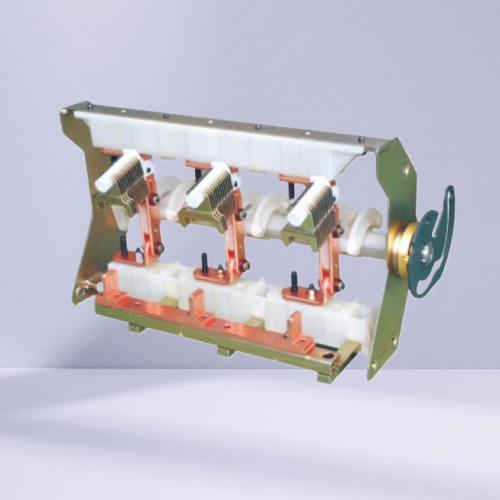

5. LOAD BREAK SWITCH
Product Name : 12kV Load Break Switch for RMU
Optional Model :
Current : 630A
Current : 800A
Rated Frequency : 50HZ
Rated Current : 630A/800A
Rated Peak Withstand Current : 50KA
Short Circuit on-off Current : 50KA
Machine Life : 5000
Bus Short-time Withstand Current : 20/25
Rated Voltage : 12kV
Place of Original : China
Brand : GRID POWER TECHNOLOGY

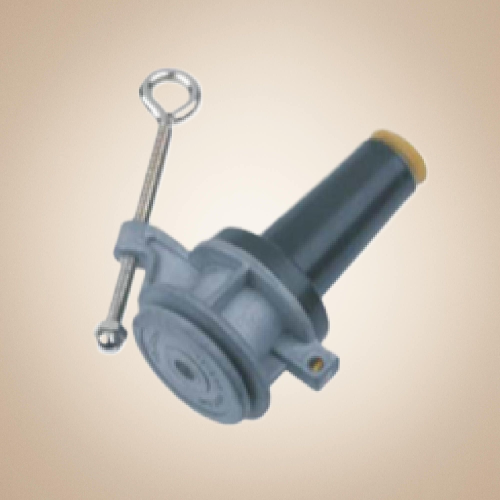

6. INSULATING BUSHING
Product Name : 15kV 200A Insulated Standoff Bushing
Model No. :G4 SB-15/200
DC 15 Min. Withstand : 53KV
BIL Rating : 95KV
Partial Discharge : 11KV<3PC
Continuous Current : 200A
AC 50Hz 1 Min. Withstand : 34KV
Place of Original : China
Brand : GRID POWER TECHNOLOGY

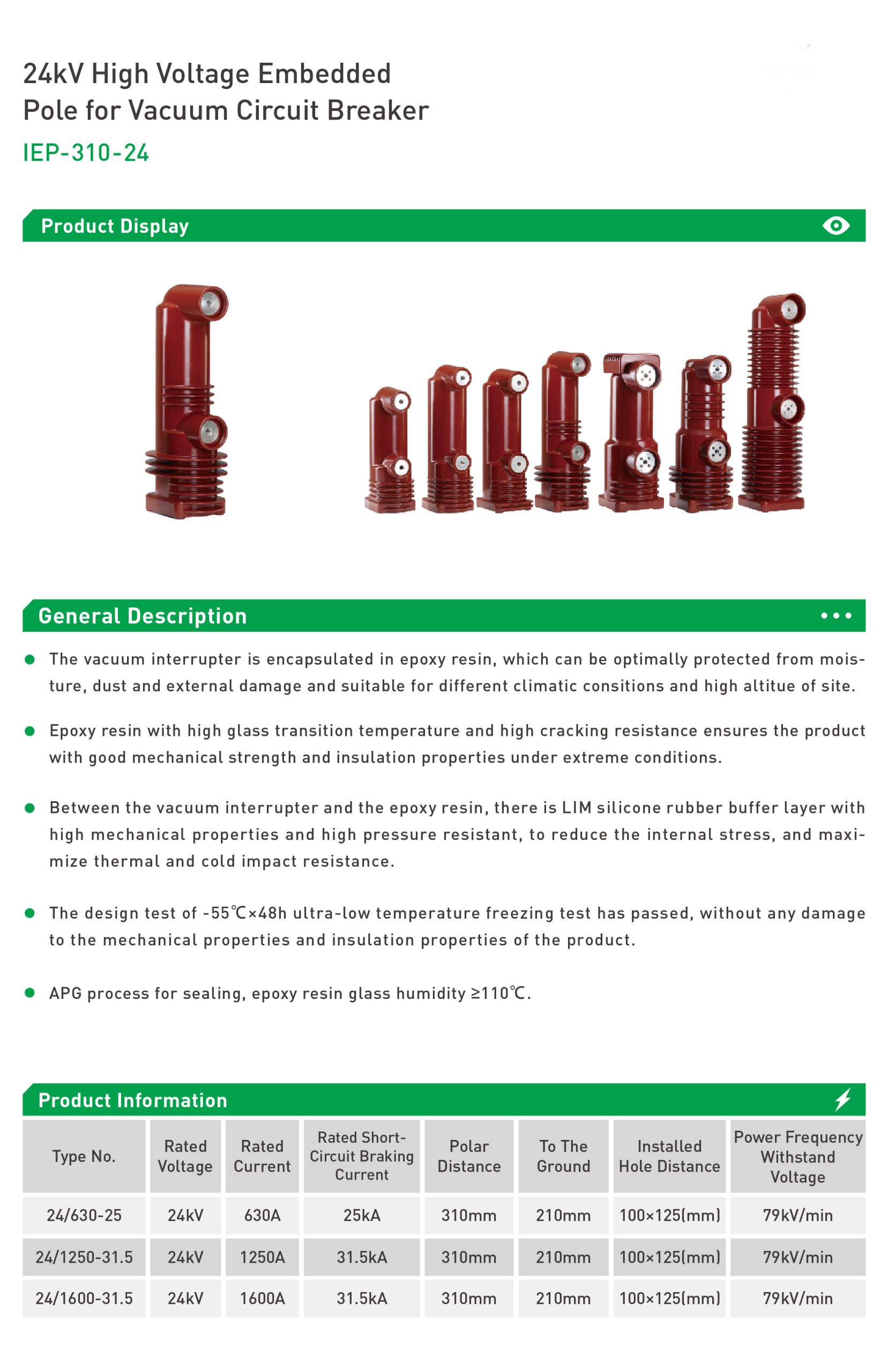

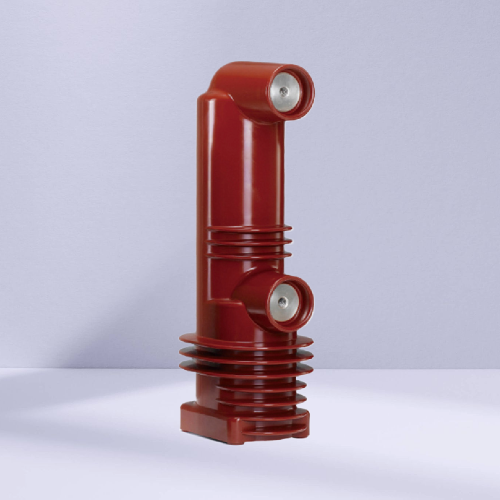

7. EMBEDDED POLE
Product Name : 24kV High Voltage Embedded Pole
Optional Model :
24/1250-31.5 : 24kV；1250A；31.5kA
24/1600-31.5 : 24kV；1600A；31.5kA
24/630-25 : 24kV；630A；25kA
Rated Voltage : 24kV
Polar Distance : 310mm
To The Ground : 210mm
Installed hole distance : 100×125（mm）
Power frequency withstand voltage : 79kV/min
Place of Original : China

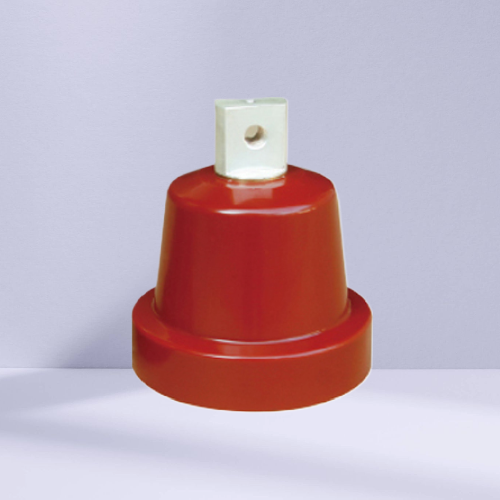

8. INNER CORE BUSHING
Product Name : Epoxy Resin BusBar Insulated Bushing High Voltage Copper Support Inner Cone Tube
Model No. : IBC-73；IBC-107
Optional Model :
IBC-73/24 : 24kV, 73mm
IBC-107/12 : 12kV, 107mm
IBC-107/24 : 24kV, 107mm
IBC-73/12 : 12kV, 73mm
Rated Current : 1250A, 630A
Power frequency withstand voltage : 48kV/min, 65kV/min
Partial Discharge ; 13.2KV≤5Pc, 26.4KV≤5Pc
Place of Original : China
9. TOP BUS BAR SYSTEM
Product Name : KJQ 15KV 630AMP Busbar Connector
Model No. : TC KJQ-D/S-15/630
Continuous Nominal Current : 630A
Continuous Operating Voltage : 15kV
Place of Original : China

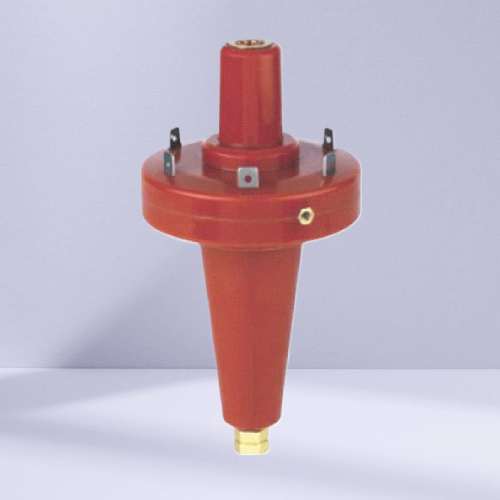

10. M.V DEAD-BREAK CONNECTOR SYSTEMS
Product Name : 24kV 250A Deadbreak Plug-in Bushing
Model No. : G4 DB-24/250
Standard : IEC60502-4
DC 15 Min. Withstand : 48KV
BIL Rating : 125KV
Partial Discharge : 20KV (<10pc)
Continuous Current : 250A
Interface : Interface A
Place of Original : China
Brand : GRID POWER TECHNOLOGY

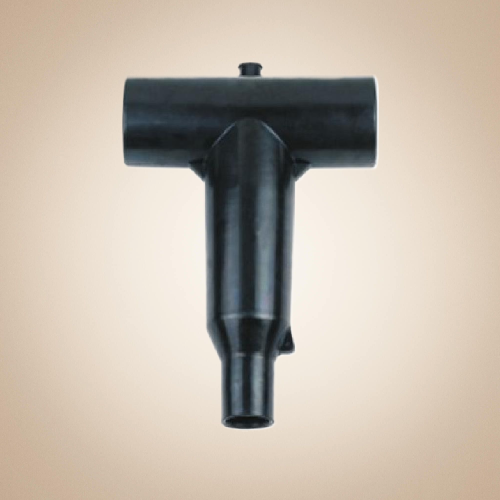

11. CONNECTOR KIT
Product Name : TT 35KV 630AMP T Cable Connector
Standard : IEEE592
Model No. : TC TT 35/630
Optional Model :
TC TT 35/630-50
TC TT 35/630-70
TC TT 35/630-95
TC TT 35/630-120
TC TT 35/630-150
TC TT 35/630-180
TC TT 35/630-240
TC TT 35/630-300
TC TT 35/630-400
TC TT 35/630-500
Continuous Operating Voltage : 35kV
Continuous Nominal Current : 630A
DC withstand voltage : 104kV
AC 50Hz 5 Min. Withstand : 117kV
Place of Original : China

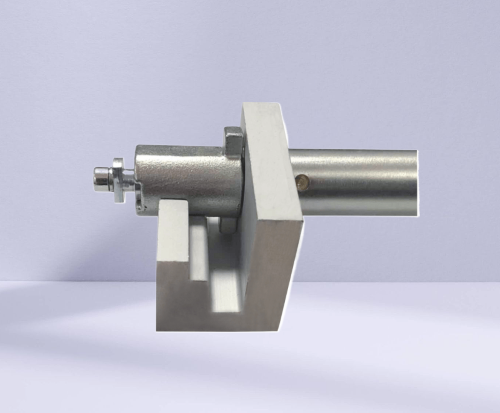

12. METAL ACCESSORY
Product Name : Zn-Ni Electrical Plating Lower Door Interlock Assembling
The surface of the lower door interlock assembling apply on Zn-Ni different with common production in market Cooperate with operation mechanism to make under door move
Place of Original : China
