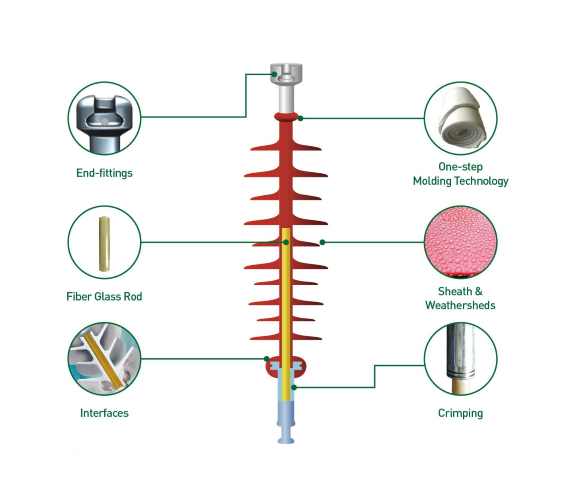

Composite Insulator Components Solution
Semi Knock Down Solution for composite & polymer insulator, including fiber glass rod, polymer sheath & weather sheds, end-fittings, crimping, etc.

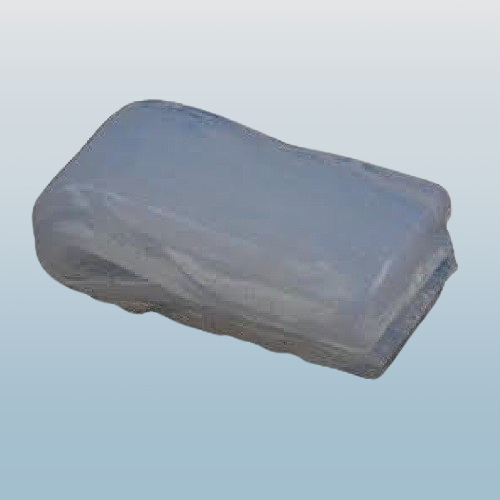

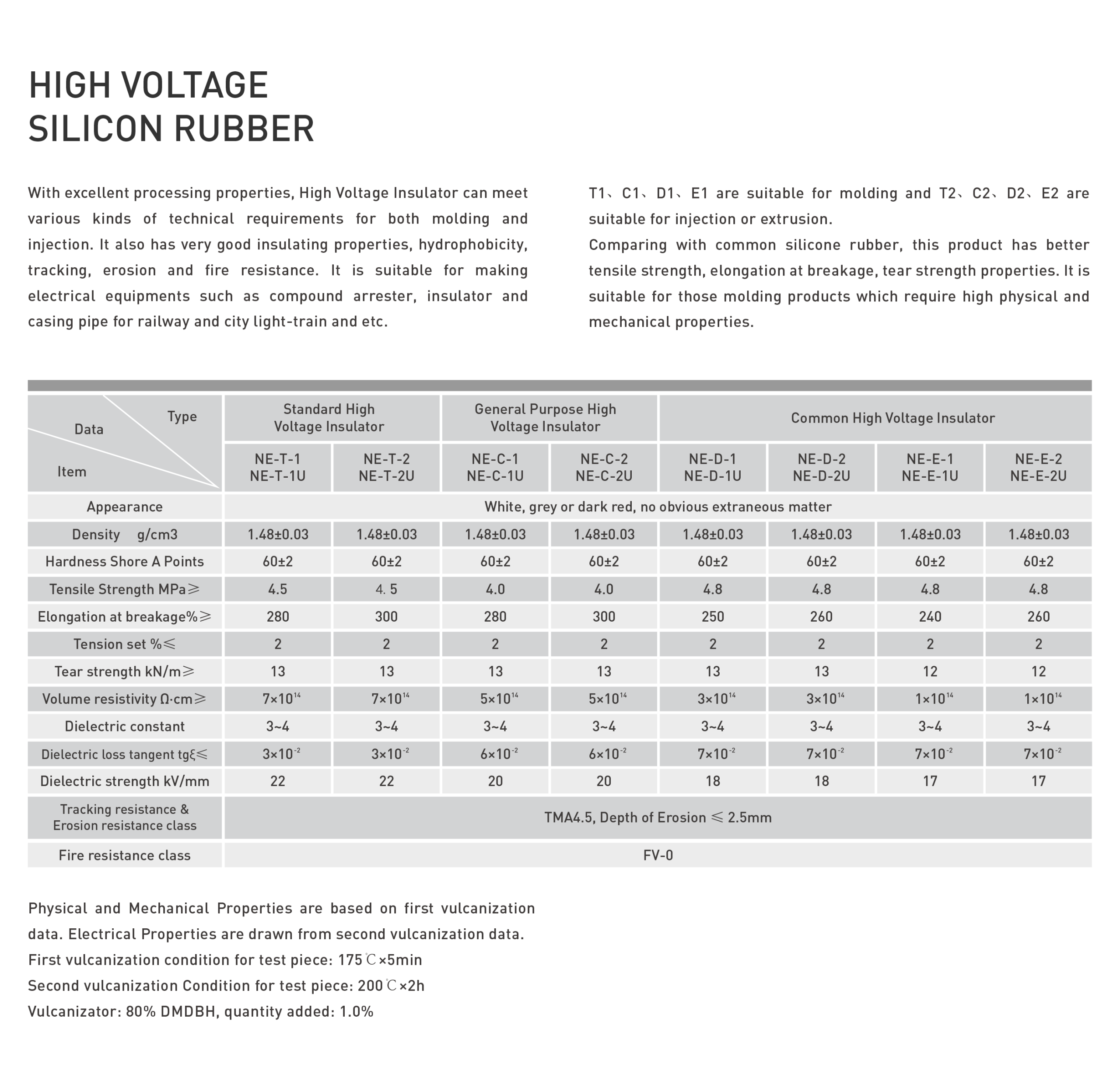

Silicone Rubber for Common HV Composite Insulator
Series : NE-D/E Series
Optional Model :
NE-D-1(U) : SUITABLE FOR MOLDING
NE-D-2(U) : SUITABLE FOR INJECTION OR EXTRUSION
NE-E-1(U) : SUITABLE FOR MOLDING
NE-E-2(U) : SUITABLE FOR INJECTION OR EXTRUSION
Appearance : White, Grey or Dark red, no obvious extraneous matter
Density : 1.48±0.03 g/cm3
Tensile Strength : > 4.8MPa
Elongatio : 240%, 250%, 260%
Volume Resistivity : >3×10^14, >1×10^14
Dielectric Constant : 3~4
Dielectric Loss Tangent : ≤7×10^-2
Dielectric Strength : 17kV/mm, 18kV/mm
Tracking Resistance : TMA4.5, Depth of Erosion ≤ 2.5mm
Fire Resistance Class : FV-0
Place of Original : China
Remarks : Clevis&Tongue Coupling
Brand : GRID POWER TECHNOLOGY

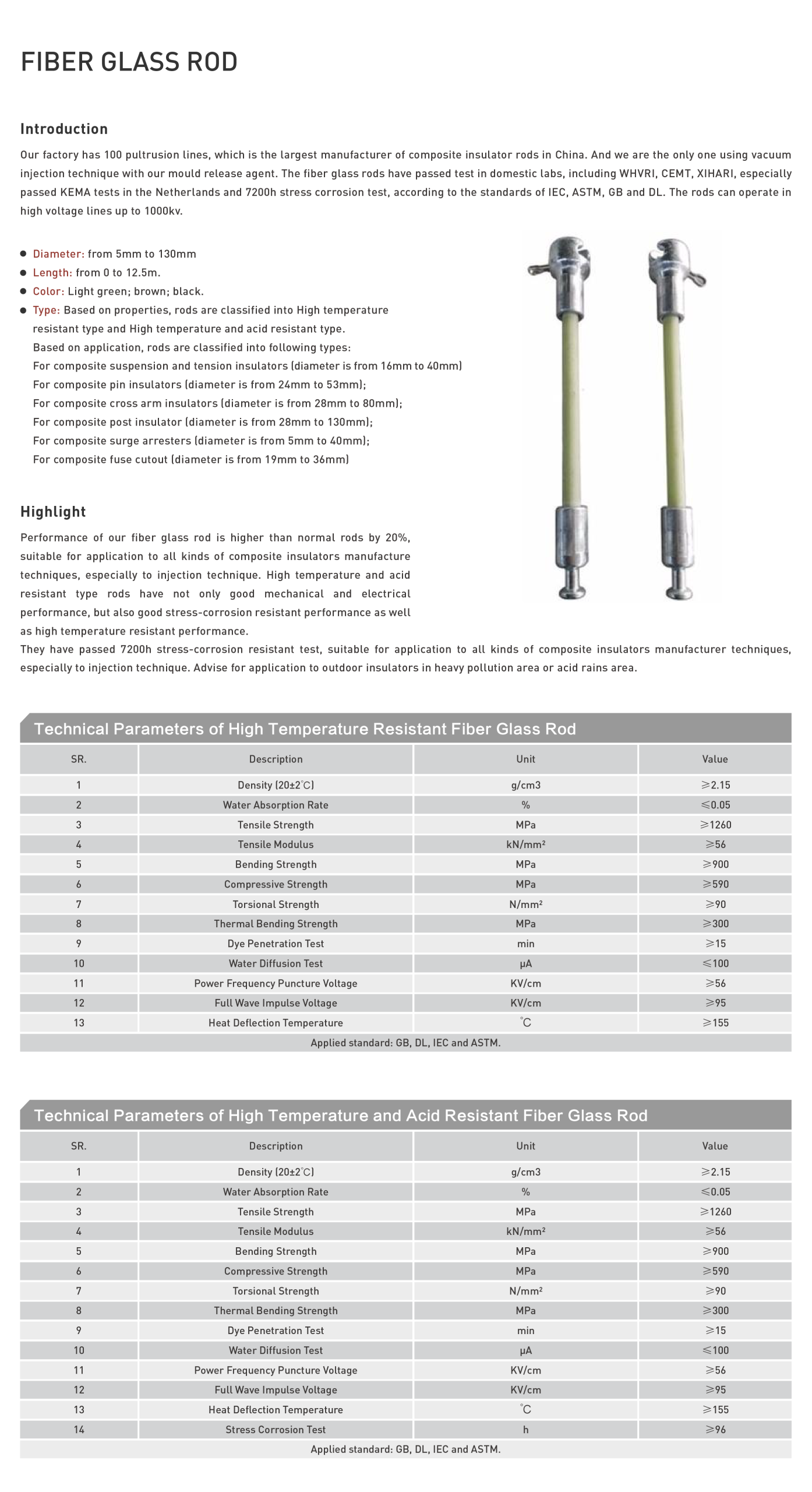

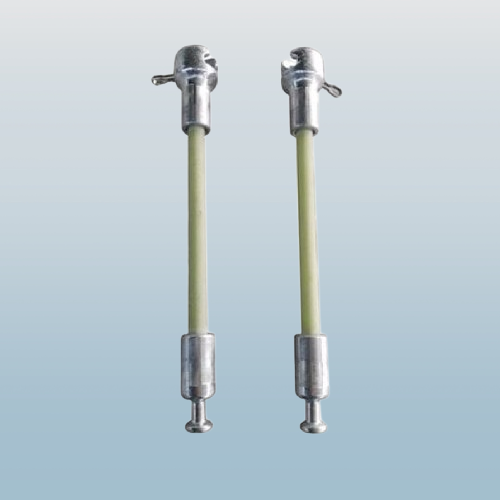

Fiber Glass Rod for Insulator Core
Optional Model :
#1 : High Temperature Resistant Type
#2 : High Temperature and Acid Resistant Type
Standard : IEC/ASTM
Diameter : 5~130mm
Length : 0~12.5m
Colour : Light Green, Brown, Black
Density : ≥ 2.15 g/cm3
Tensile Strength : ≥ 1260MPa
Bending Strength : ≥ 900MPa
Power Frequency Puncture Voltage : ≥ 56 kV/cm
Place of Original : China
Brand : GRID POWER TECHNOLOGY

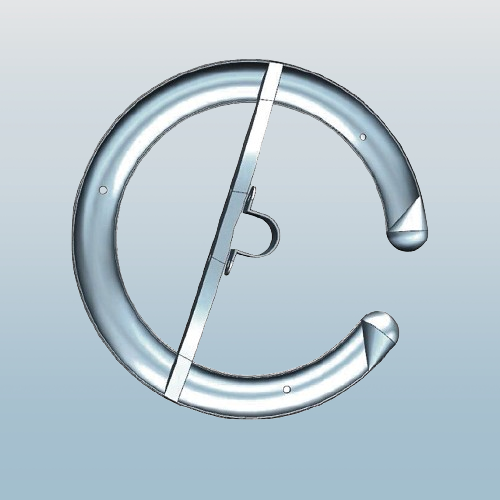

Corona Ring
Optional Model :
R160 : 750KV TOWER END
R250 : 220KV LINE END
R250-2 : 220KV LINE END
R305 : 330KV LINE END AND TOWE END
R305-2 : 330KV LINE END AND TOWE END
R350 : 400KV LINE END AND TOWE END
R370 : 500KV LINE END AND TOWE END
R370-2 : 500KV LINE END AND TOWE END
R450 : 750KV LINE END

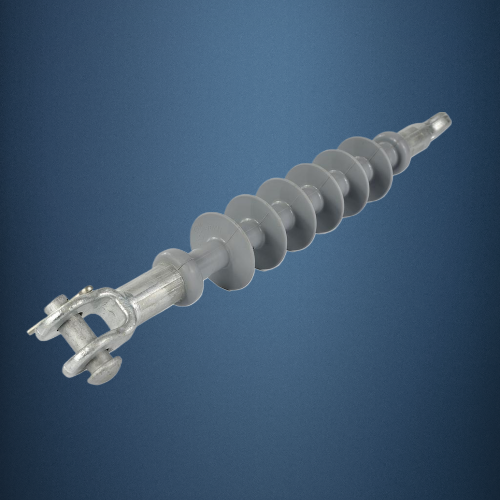

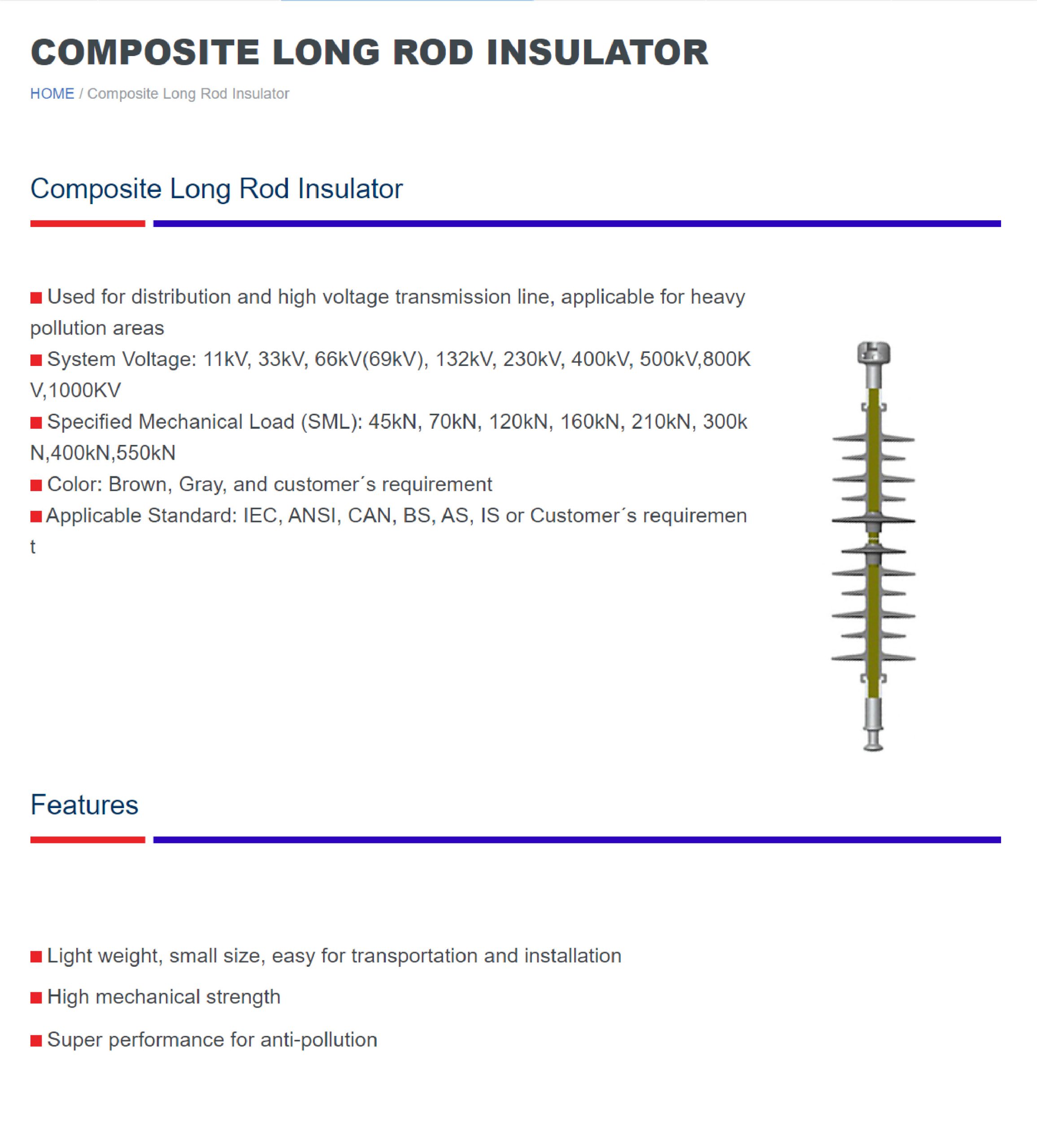

Composite Long Rod Insulator
Type : 10kV-1000kV Long Rod (suspension or tension)
Standard : IEC, ANSI, BS, CAN, AS, IS
AC Voltage : 10kV-1000kV
Specified Mechanical Load : 45-550kN
Place of Original : China
Brand : GRID POWER TECHNOLOGY

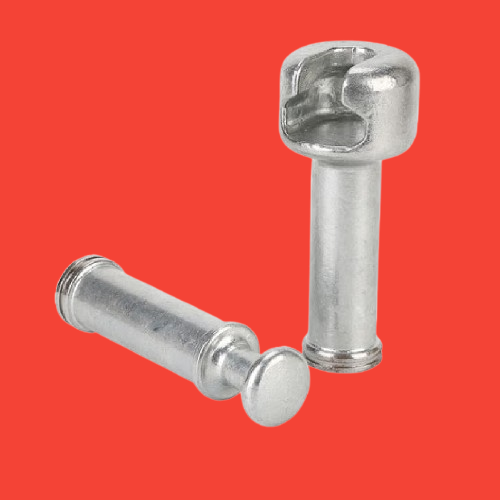

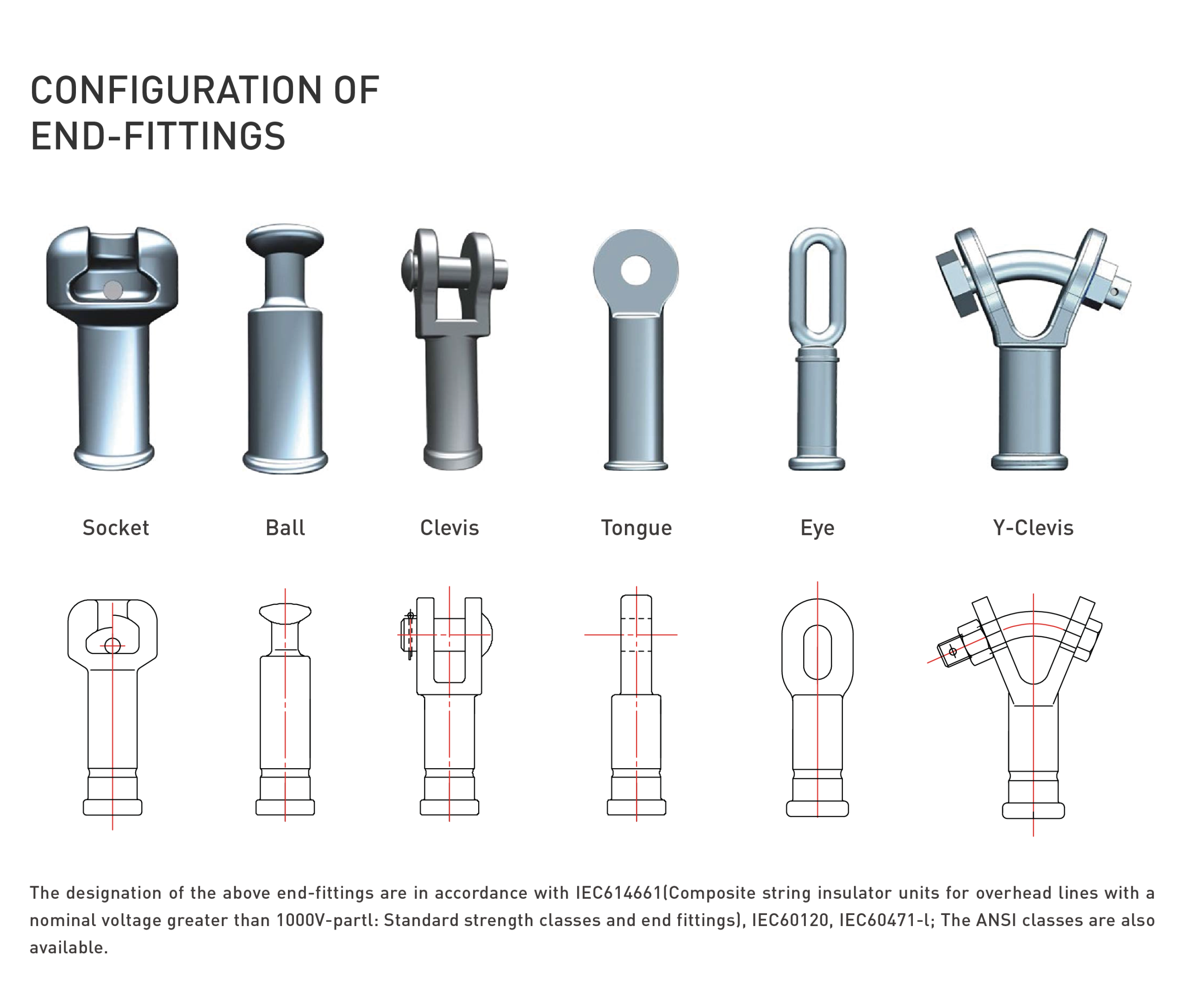

End Fittings for Composite Insulator
Standard : IEC 614661
Optional Model :
Socket : Socket
Ball : Ball
Clevis : Clevis
Tongue ; Tongue
Eye : Eye
Y-Clevis : Y-Clevis
Place of Original : China
Brand : GRID POWER TECHNOLOGY
