Drop Fuse Cutout Components
Semi Knock Down Solution for Drop Fuse Cutout, including polymer insulator, porcelain insulator, terminal clamp, upper and lower contacts, fuse holder, fuse tube, fuse link, etc.

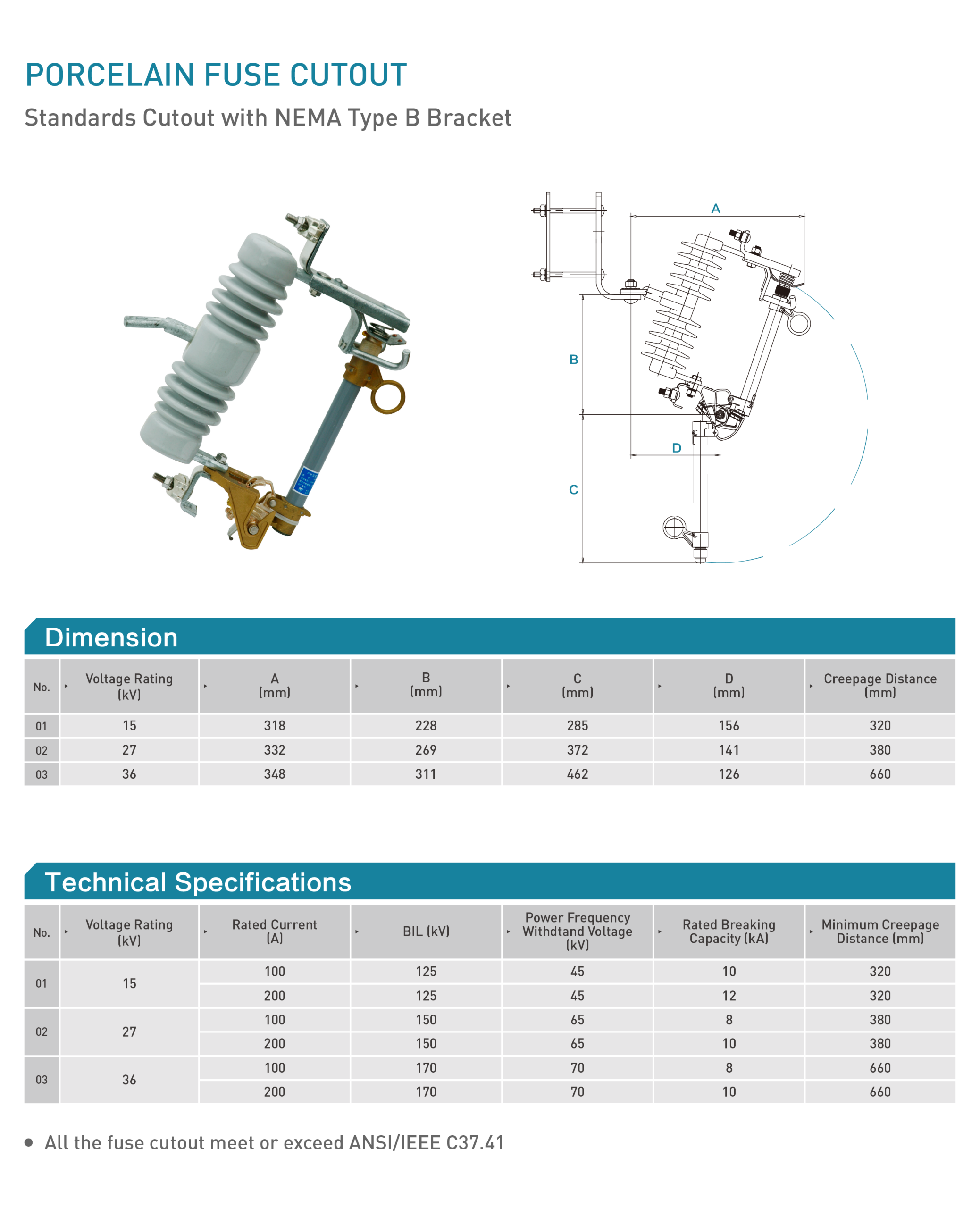

A. PORCELAIN FUSE CUTOUT :

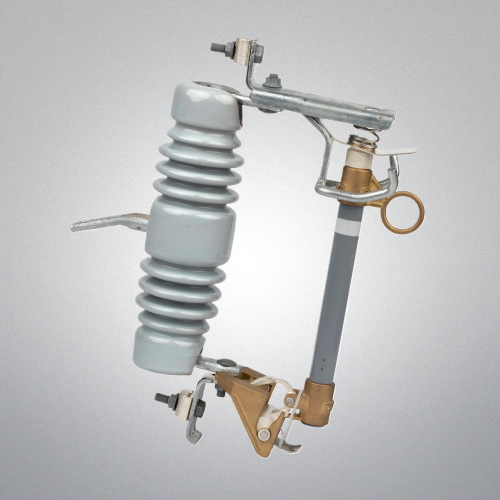

Product : 15kV 100APorcelain DCO/Porcelain Drop Fuse Cutout 240mm,125kV,7.1kA
Model No. : PRW01-15/100-7.1
Rated Voltage : 15kV
Rated Current : 100A
Minimum Nominal Creepage Distance : 240mm
Lightning Impulse Voltage : 125kV
Rated Breaking Current : 7.1kA
Standard : IEC 60282-2&ETU 122.1&ETU122.2&ETU 122.3
Place of Original : China
Brand : GRID POWER TECHNOLOGY

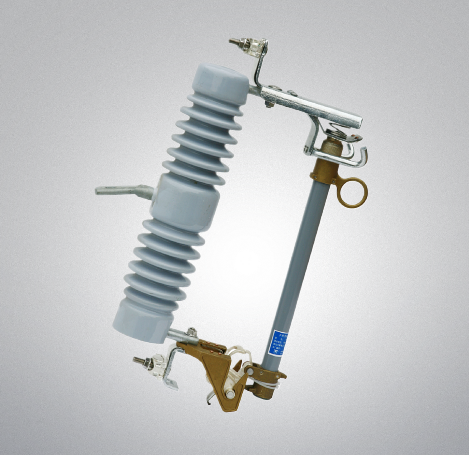

Product : 27kV 100A Porcelain DCO/Porcelain Drop Fuse Cutout280mm,140kV,4.5kA
Model No. : PRW01-27/100-4.5
Standard : IEC 60282-2&ETU 122.1&ETU122.2&ETU 122.3
Rated Voltage : 27kV
Rated Current : 100A
Minimum Nominal Creepage Distance : 280mm
Lightning Impulse Voltage : 140kV
Rated Breaking Current : 4.5kA
Place of Original : China
Brand : GRID POWER TECHNOLOGY

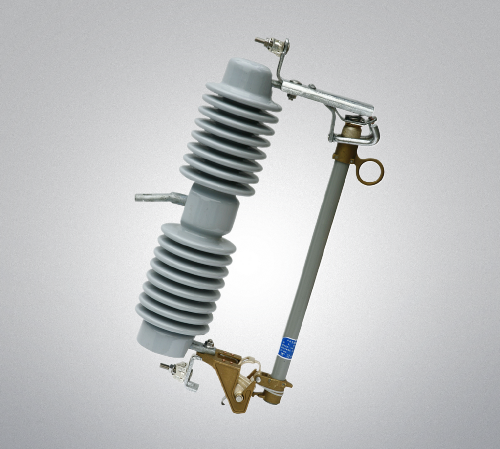

Product : 36kV 100A Porcelain DCO/Porcelain Drop Fuse Cutout 410mm,165kV,3.5kA
Model No. : PRW01-36/100-3.5
Standard : IEC 60282-2&ETU 122.1&ETU122.2&ETU 122.3
Rated Voltage : 36kV
Rated Current : 100A
Minimum Nominal Creepage Distance : 410mm
Lightning Impulse Voltage : 165kV
Rated Breaking Current : 3.5kA
Place of Original : China
Brand : GRID POWER TECHNOLOGY

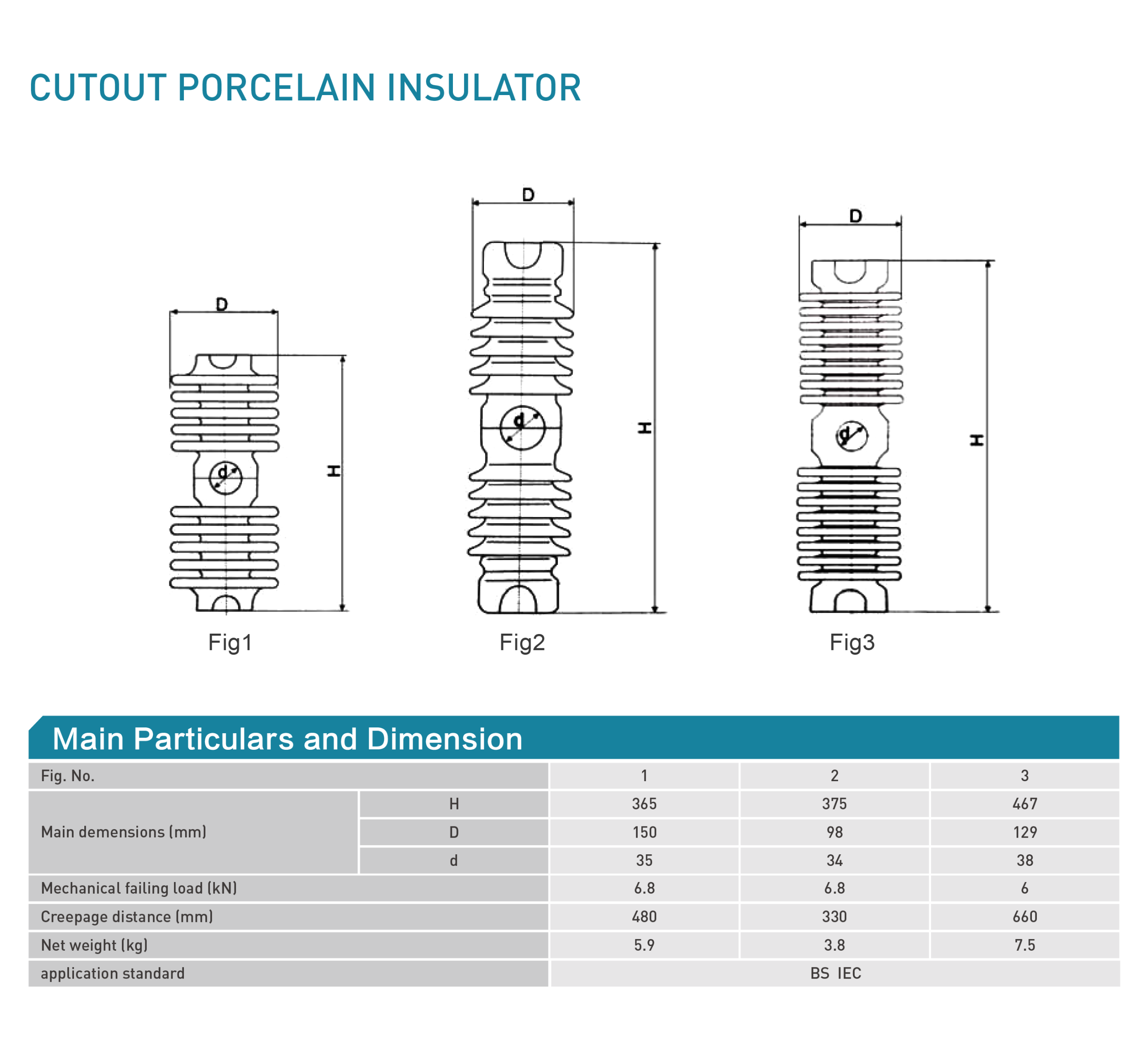

B. PORCELAIN INSULATOR
Optional Type :
Type 1 : H*D(mm): 365*150
Type 2 : H*D(mm): 375*98
Type 3 : H*D(mm): 467*129
Standard : BS/IEC
Mechanical Strength : 6kN~6.8kN
Creep Distance : 330~660

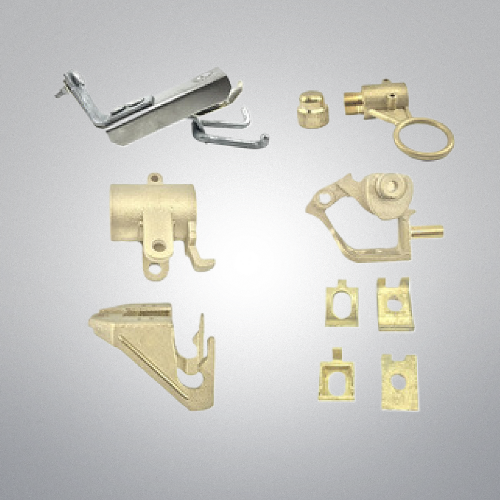

C. FUSE CUTOUT COMPONENTS
Fuse Holder : Fuse Holder
Fuse Link : Fuse Link
Upper Contact : Upper Contact
Lower Contact : Lower Contact
Porcelain Body : Porcelain Body
NEMA Bracket : NEMA Bracket
