Surge Arrester Components Solution

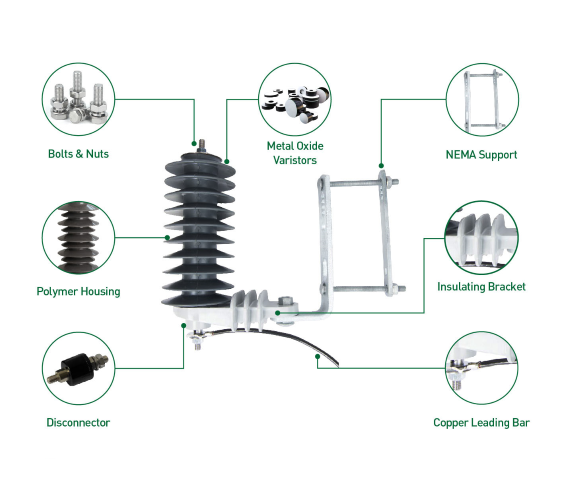

Semi Knock Down Solution for Surge Arrester, including metal oxide varistors, polymer housing, disconnector, copper leading bar, insulating bracket, NEMA support, etc.

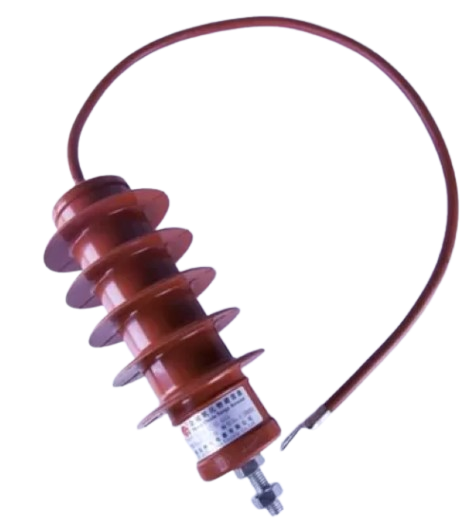

1. SURGE ARRESTER

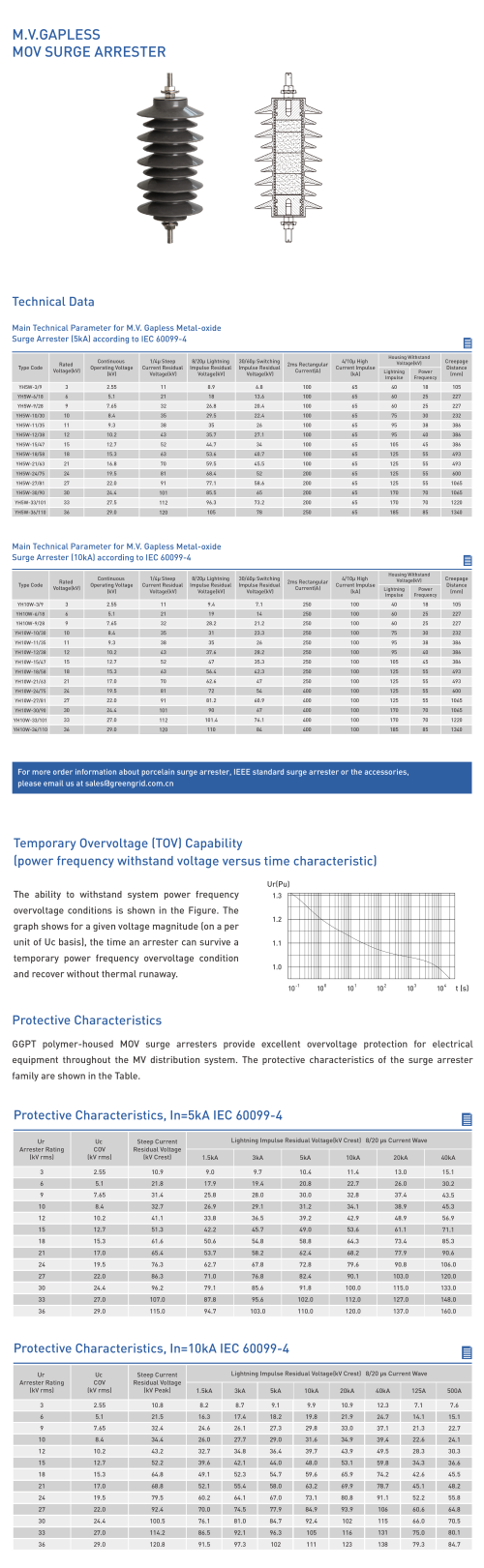

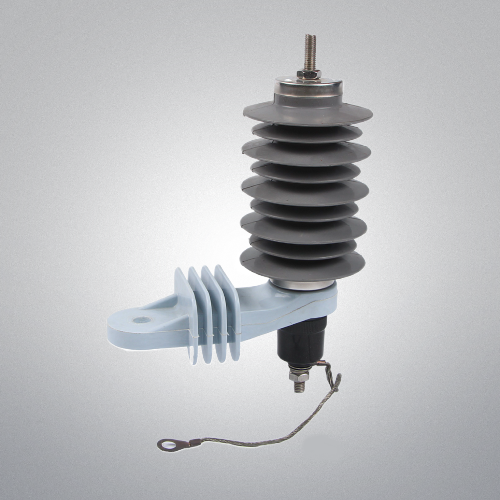

Product Name : M.V. 5kA Gapless MOV Surge Arrester up to 36KV
Series : YH5W Series
Optional Model :
YH5W-3/9 : 3KV, 100A
YH5W-6/18 : 6KV, 100A
YH5W-9/28 : 9KV, 100A
YH5W-10/30 : 10KV, 100A
YH5W-11/35 : 11KV, 100A
YH5W-12/38 : 12KV, 100A
YH5W-15/47 : 15KV, 100A
YH5W-18/58 : 18KV, 100A
YH5W-21/36 : 21KV, 100A
YH5W-24/75 : 24KV, 200A
YH5W-27/81 : 27KV, 200A
YH5W-30/90 : 30KV, 200A
YH5W-33/101 : 33KV, 200A
YH5W-36/110 : 36KV, 250A
Standard : IEC 60099-4
Rated Voltage : 3~36
Continuous Operating Voltage : 2.55~29
2ms Rectangular Current Impulse : 100A, 250A, 200A
High Current Impulse Capacity : 65 (4/10µs)
1/4µ Steep Current Residual Voltage [kV] : 11~120
8/20µ Lighting Impulse Residual Voltage [kV] : 8.9~105
30/60µ Switching Impulse Residual Voltage [kV] : 6.9~78
4/10 High Current Impulse : 65kA
Housing Withstand Voltage [kV] : Lighting Impulse: 40~185, Power Frequency:18~85
Creep Distance : 105~1340
Place of Original : China
Brand : GRID POWER TECHNOLOGY

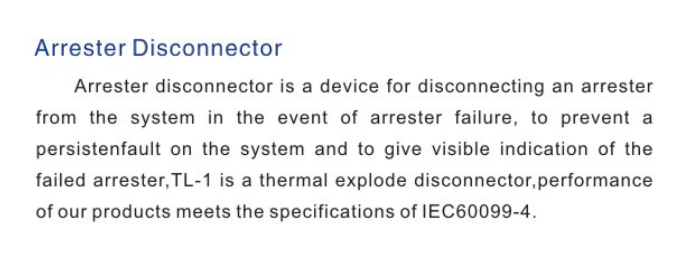

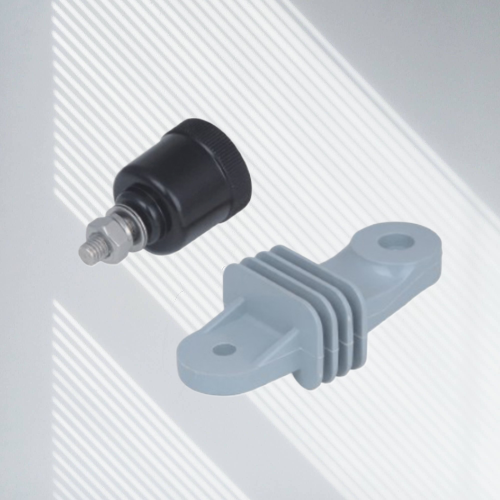

2. DISCONNECTOR
3. NEMA SUPPORT

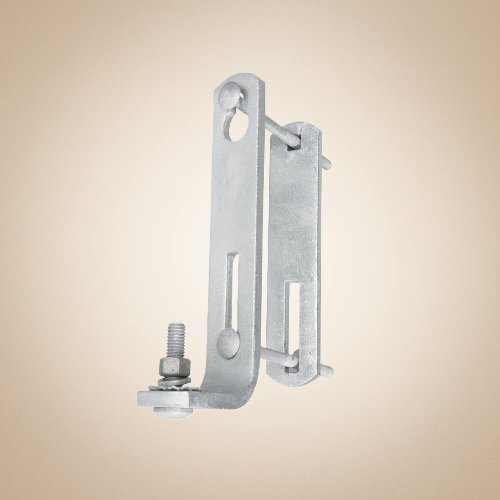

Product Name : NEMA Mounting Brackets for Surge Arrester

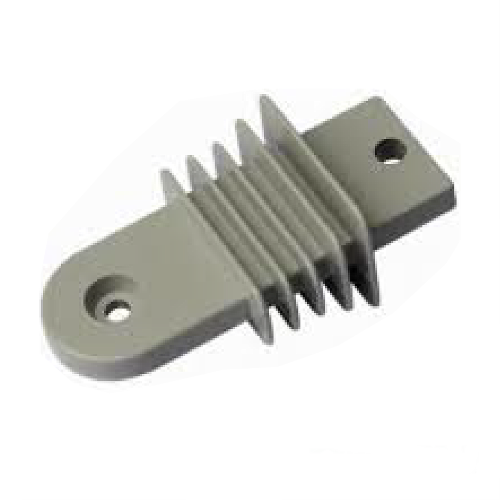

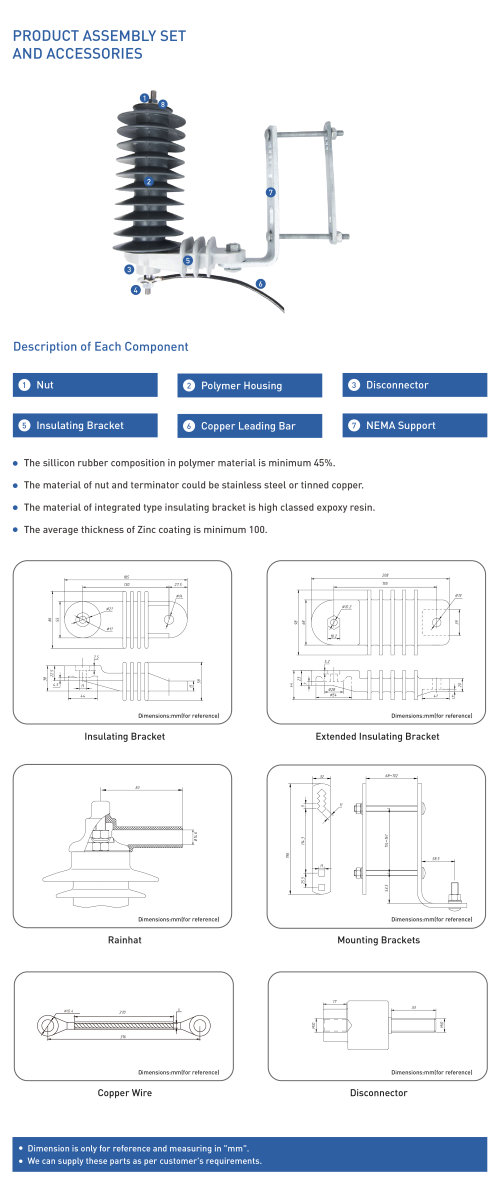

4. INSULATING BRACKET
Bracket : Insulating bracket, Epoxy resion.
Extended Bracket : Extended Insulating bracket, Epoxy resion.

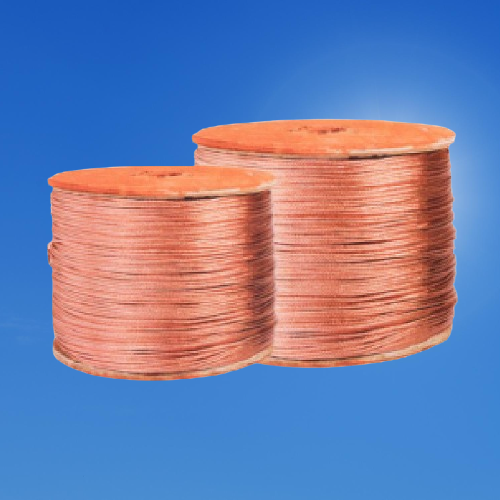

5. COPPER LEADING WIRE

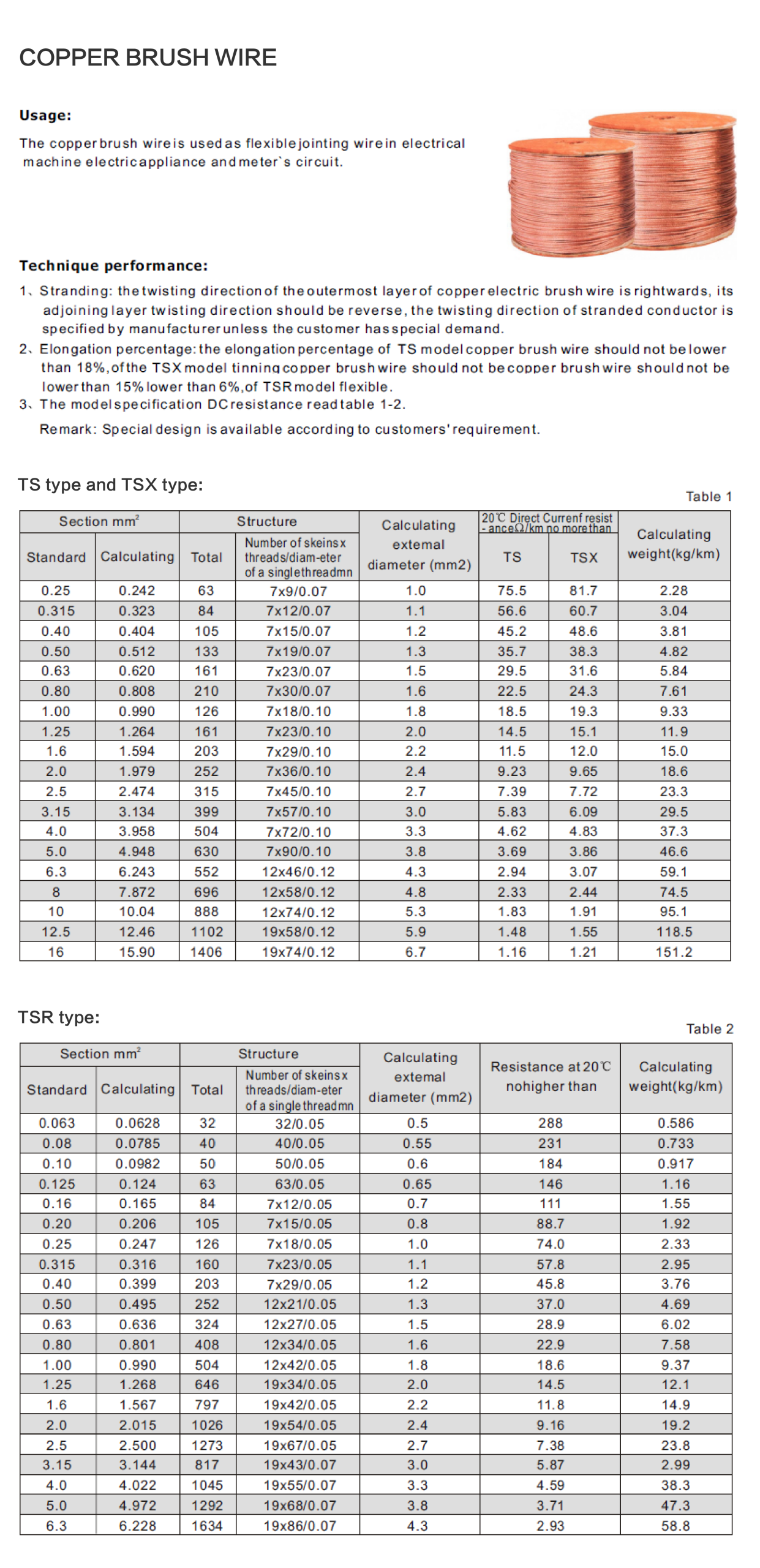

Product Name : Copper Brush Wire
Optional Model :
TS : Without tin-plating, Elongation lower than 18%
TSX : With tin-plating, Elongation lower than 15%
TSR : Elongation lower than 6%
Place of Original : China

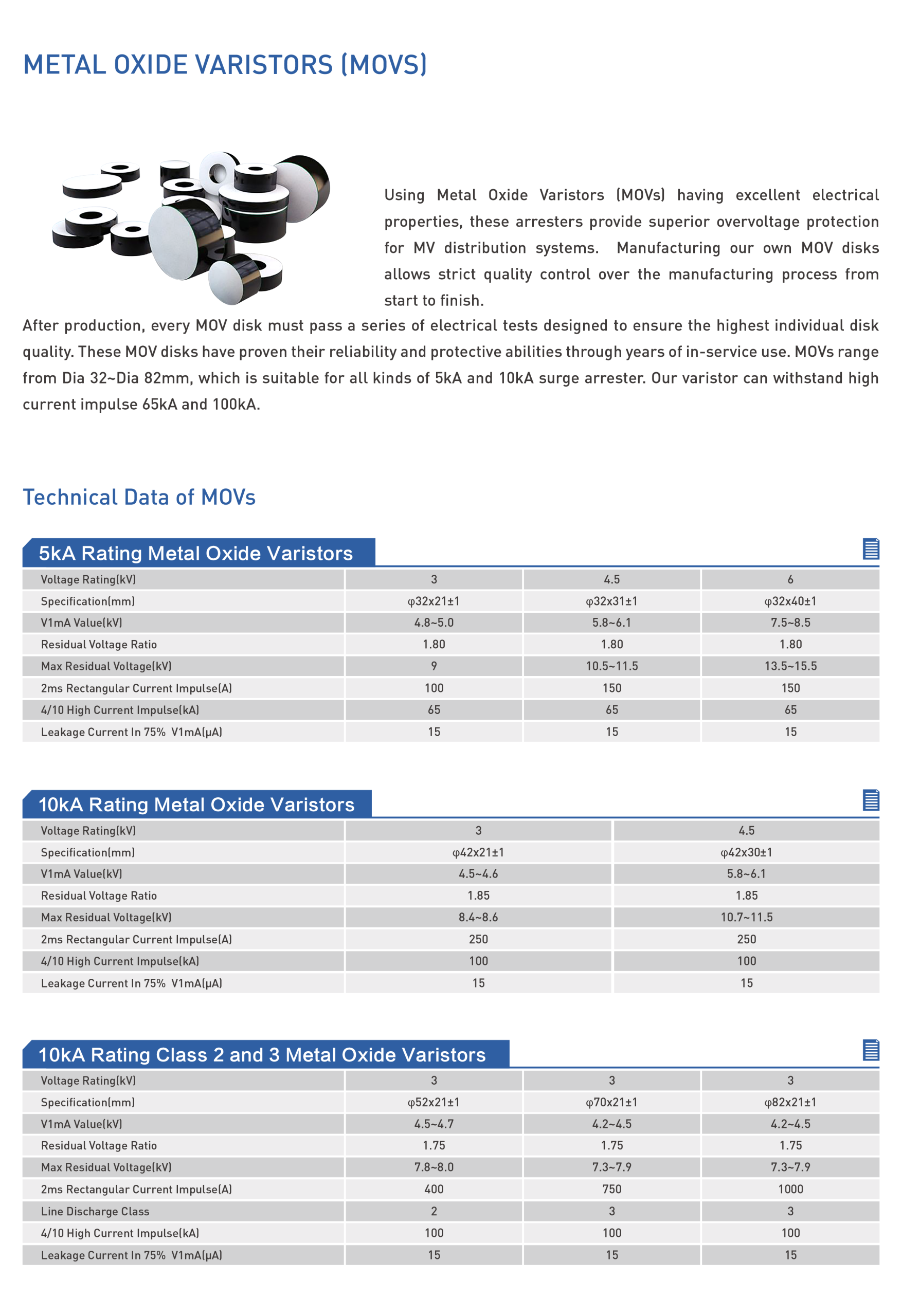

Product Name : 5KA 32mm Metal Oxide Varistors (MOVS)
Optional Model :
Φ32*21mm : 3kV, 5kA
Φ32*31mm : 4.5kV, 5kA
Φ32*40mm : 6kV, 5kA
Rated Voltage : 3kV, 4.5kV, 6kV
Diameter : 32mm
Residual Voltage Ratio : 1.8
Residual Voltage : 9~15.5kV
2ms Rectangular Current Impulse : 100A, 150A
4/10 High Current Impulse : 65kA
Leakage Current : 15µA in 75% V1mA
Place of Original : China
Brand : GRID POWER TECHNOLOGY
