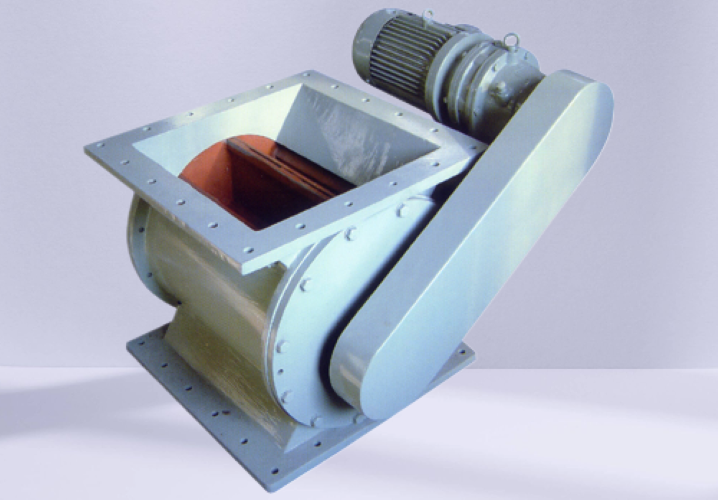

Electric Airlock
Series : DS SERIES
Brand : Newplan Energy & Environment Technology Co., Ltd.
I. Applications and Features
The electric airlock, also known as a feeder or rotary valve, is used in thermal power plants, chemical plants, and grain processing plants for conveying dry powdery or granular materials, ensuring airlocking and uniform feeding.
In thermal power plants, it is typically installed at the bottom of the ash hopper in electrostatic precipitators, economizers, and air preheaters.
This product can operate continuously below 200℃, features a novel structure, excellent sealing, and convenient maintenance.
II. Main Technical Parameters:
| Model | DS10 | DS15 | DS20 | DS40 | DS60 | DS80 | DS100 | DS200 | |
| Output t/h | 10 | 15 | 20 | 40 | 60 | 80 | 100 | 200 | |
| A × A | 420×420 | 420×420 | 420×420 | 530×530 | 530×530 | 640×640 | 640×640 | 640×640 | |
| N1×A1（A2） | 3×120（0） | 3×120（0） | 3×120（0） | 3×120 (55) | 3×120 (55) | 5×116(0) | 5×116(0) | 5×116(0) | |
| N2 – d | 12-Ф14 | 12-Ф14 | 12-Ф14 | 16-Ф14 | 16-Ф14 | 20-Ф18 | 20-Ф18 | 20-Ф18 | |
| drive unit | Power KW | 0.75 | 0.75 | 1.5 | 0.75 | 2.2 | 4 | 4 | 5.5 |
| External dimensions | h | 455 | 504 | 504 | 550 | 550 | 600 | 600 | 600 |
| t | 15 | 18 | 18 | 20 | 20 | 25 | 25 | 25 | |
| L×M×H | 700×547×530 | 790×547×587 | 790×547×587 | 895×664×634 | 895×664×634 | 1063×780×788 | 1063×780×788 | ||
