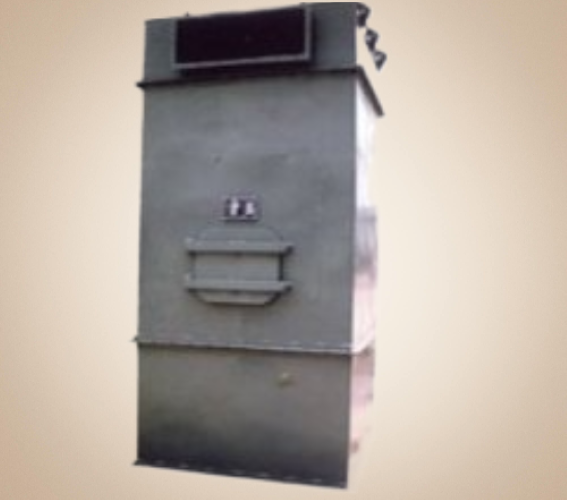

Pulse Jet Bag Filter

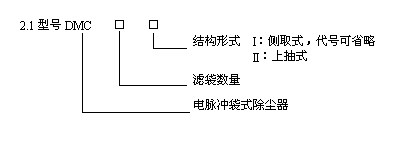

Series : DMC Series
Brand : Newplan Energy & Environment Technology Co., Ltd.
I. Applications and Features:
The DMC type electro-pulse bag filter is a high-efficiency purification device specifically designed for the working conditions of ash and slag silos in thermal power plants. It adopts advanced cleaning technology and features a large gas handling capacity, excellent purification effect, simple structure, reliable operation, and low maintenance. Its structural design takes into account its layout characteristics; due to its good sealing performance, it can be installed outdoors.
The electro-pulse bag filter adopts a top-drawing structure, and the filter bags use an expansion ring structure, ensuring a reliable seal between the filter bags and the perforated plate, facilitating installation and maintenance.
The key component of the electro-pulse bag filter’s pulse-jet cleaning system, the electromagnetic pulse valve, has a service life of up to one million cycles, ensuring thorough cleaning and high efficiency, with a dust removal efficiency of up to 99.9%.
The perforated plates of the electro-pulse bag filter are machined using German equipment, resulting in smooth inner holes and minimal roundness error.
II. Main Technical Parameters:
| Model Technical Parameters |
DMC-24 | DMC-36 | DMC-48 | DMC-60 | DMC-72 | DMC-84 | DMC-96 | DMC-108 | DMC-120 |
| Filtration area (m2) | 22 | 34 | 45 | 57 | 68 | 79 | 90 | 102 | 113 |
| Number of filter bags | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 |
| Equipment resistance | 100-120mmH2O | ||||||||
| Dust removal efficiency | 99-99.5% | ||||||||
| Filtration speed | 1-2 m/min | ||||||||
| Processing air volume | 1320-2640 |
2040-4080 | 2700-5400 | 3400-6800 | 4080- 8160 | 4740- 9480 | 5400-10800 | 6120- 12240 | 6780- 13560 |
| Blowing pressure | 0.5-0.7MPa | ||||||||
| Air volume (m/min) | 0.072-0.144 | 0.108-0.216 | 0.144-0.288 | 0.18-0.36 | 0.216-0.432 | 0.252-504 | 0.288-576 | 0.324-0.648 | 0.36-0.72 |
| Input voltage | ∽220v | ||||||||
