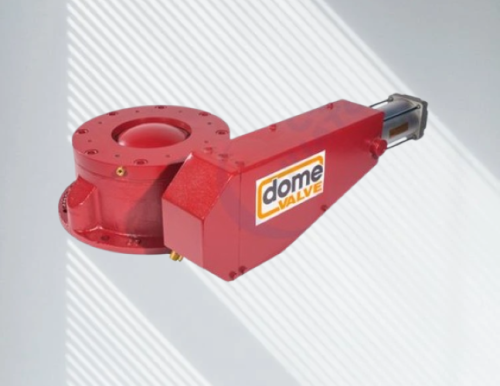

Dome Valve (Spherical Airlock Valve)
Series : QQF SERIES
Brand : Newplan Energy & Environment Technology Co., Ltd.
The dome valve (spherical airlock valve) is a new type of quick-closing valve. It adopts an internationally advanced air-sealing structure, ensuring no contact between the valve core and the inflatable sealing ring during opening and closing. The sealing ring is made of a specially formulated rubber and can be widely used for sealing powdery materials.
It is a key component in pneumatic conveying systems and is widely used in power, metallurgy, chemical, food, and pharmaceutical industries.
Features include:
No contact between the valve core and the sealing ring during operation, low operating resistance, and long service life;
Uses an inflatable sealing ring for excellent sealing performance;
The pneumatic actuator uses a fully enclosed rotary push rod type straight cylinder drive, with rotary output, reliable performance, and high output torque, meeting the requirements for operation under harsh conditions.
Main Technical Parameters:
| Model | QQF100 | QQF125 | QQF150 | QQF175 | QQF200 | QQF250 | QQF300 | |
| Diameter DN mm | 100 | 125 | 150 | 175 | 200 | 250 | 300 | |
| Working pressure MPa | ≤ 0.5 | |||||||
| Operating temperature ° C | ≤ 150 | |||||||
| Control gas source | Pressure MPa | 0.4~0.6 | ||||||
| Gas consumption (L/time) | 1~3 | |||||||
| Cylinder output torque Nm/5bar | 75~650 | |||||||
| working medium | Powdered or granular materials | |||||||
