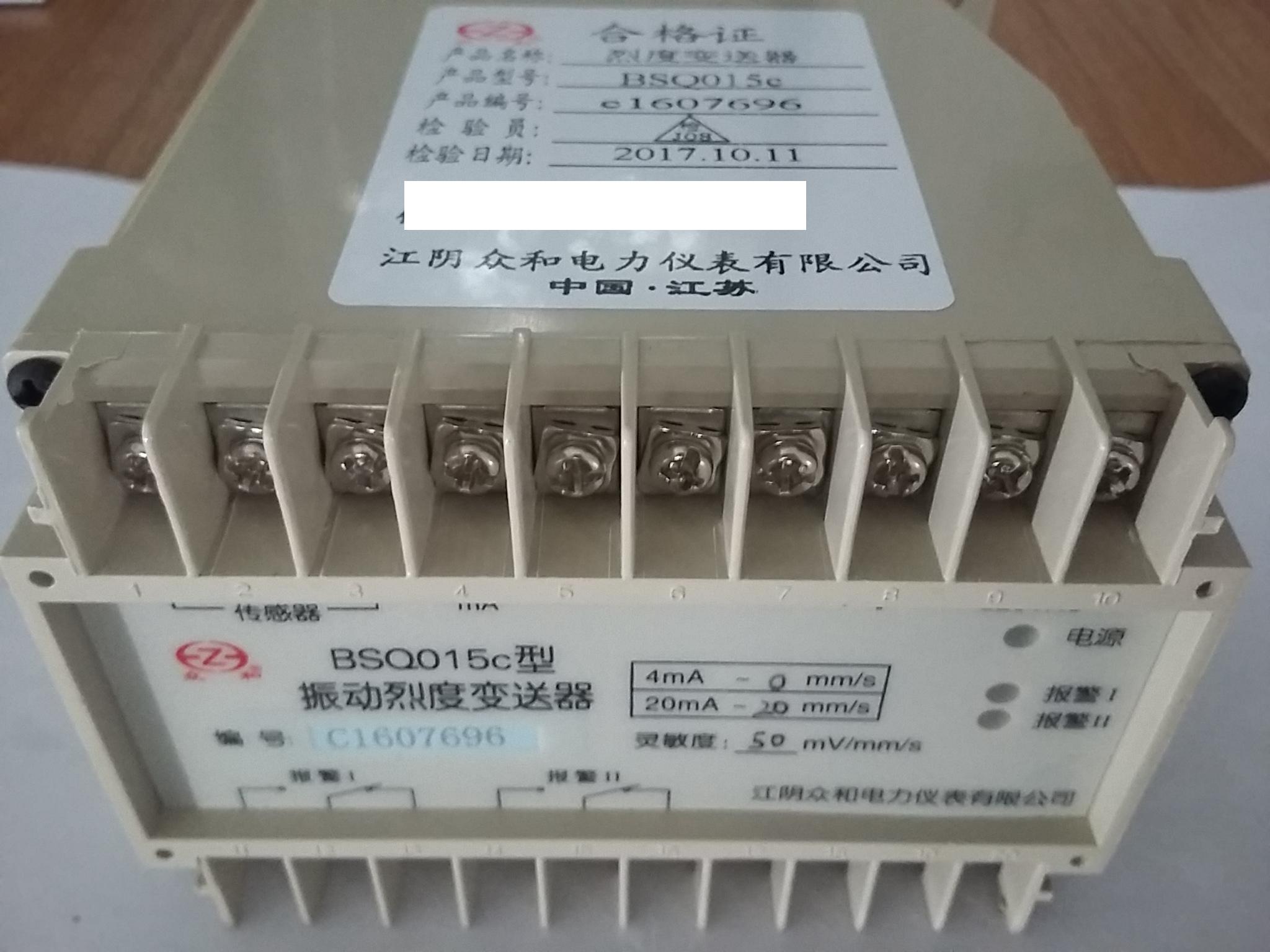

Jiangyin Zhonghe | BSQ015abcd Series Vibration Intensity Transmitter

Overview:

Jiangyin Zhonghe BSQ015abcd series vibration severity transmitter is equipped with SZ-6 series magnetoelectric speed sensor, which can monitor the effective value of bearing speed or peak-to-peak value of vibration displacement of rotating mechanical devices.

Technical Parameters:

Measuring range: 0 ~ 500 μm or any range within 0 ~ 50mm/s ;

Frequency response    : 10 ~ 500Hz ;

Current output: 4 ~ 20mA or 0 ~ 10mA , accuracy: full scale ± 1% , load 500Ω ;

Buffer output: sensor original signal output;

Alarm    : set at any point within the full range, LED alarm indication;

Power supply: +24VDC ± 10% or 220VAC ± 10% , 50Hz , power consumption less than 6W .

Order Code:

BSQ011a–A□□ –B □□ –C □□;   vibration, DC 24V power supply, with alarm function

BSQ011b–A□□ –B □□ –C □□;   vibration, DC 24V power supply, no alarm function

BSQ011c–A□□ –B □□ –C □□;   vibration, AC220V power supply, with alarm function

BSQ011d–A□□ –B □□ –C □□;   vibration, AC220V power supply, no alarm function

BSQ015a–A□□ –B □□ –C □□;   severity, DC 24V power supply, with alarm function

BSQ015b–A□□ –B □□ –C □□;   severity, DC 24V power supply, no alarm function

BSQ015c–A□□ –B □□ –C □□;   intensity, AC220V power supply, with alarm function

BSQ015d–A□□ –B □□ –C □□;   intensity, AC220V power supply, no alarm function

Selection example BSQ015abcd series vibration intensity transmitter :

BSQ011abcd-A02-B01-C01

BSQ015abcd-A02-B01-C01
