Jiangyin Zhonghe | TS-V-36 Two-Wire Integrated Vibration Transmitter

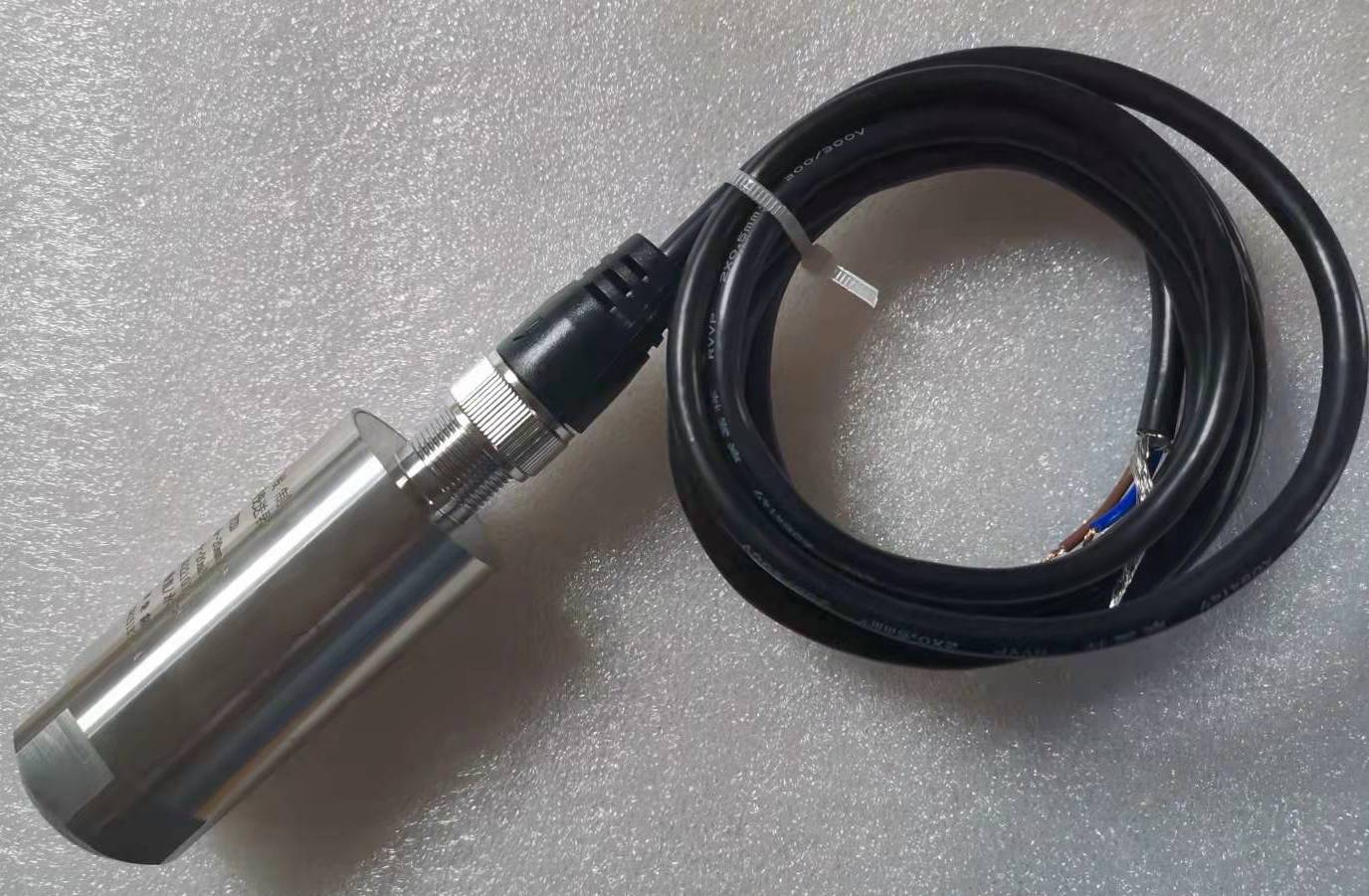

TS-V-36 two-wire integrated vibration transmitter is a vibration measurement system that integrates vibration velocity sensor and precision measurement circuit. This integrated transmitter is mainly used to measure the vibration of the bearing of rotating machinery such as fans and pumps, and outputs a standard 4-20mA current signal, which can be directly sent to PLC , DCS and other monitoring systems. The transmitter adopts a two-wire system and is directly powered by the measurement system, making on-site wiring simpler and more convenient.

TS-V-36 two-wire integrated vibration transmitter production main functions:

Mainly used to measure the bearing vibration of rotating machinery; with 4 ~ 20mA current analog output

The sensor and transmitter are integrated;
the wiring method is fool-proof, and the positive and negative poles are automatically identified.

Technical Parameters:

Measurement range: Frequency: 10 ~ 100Hz ( 600-6000 rpm) or 15 ~ 200Hz ( 600-12000 rpm) Amplitude : 0 ~ 100μm , 0 ~ 200μm* , 0 ~ 500μm (peak -to- peak value) Intensity : 0 ~ 10mm /s , 0 ~ 20mm /s* , 0 ~ 50mm /s (single peak effective value) Measurement accuracy: ±1 level ( linear error at 30Hz or 60Hz )
Frequency response error: 30～60Hz , ≤± 2% ; 20～120Hz , ≤± 4% ; 12～200Hz , ≤± 8%

Measurement method: vertical or horizontal
Current output: 4 ~ 20mA (load ≤500Ω ) Ambient temperature: -10 ~ 65 ℃ (relative humidity ≤85% ) Power supply voltage: DC24 ( 18V ~ 28V ); power consumption ≤1W Dimensions: Φ 38×88 ( mm ) Fixing screw hole: M10×1.5×10 (depth) or M10×1×10
