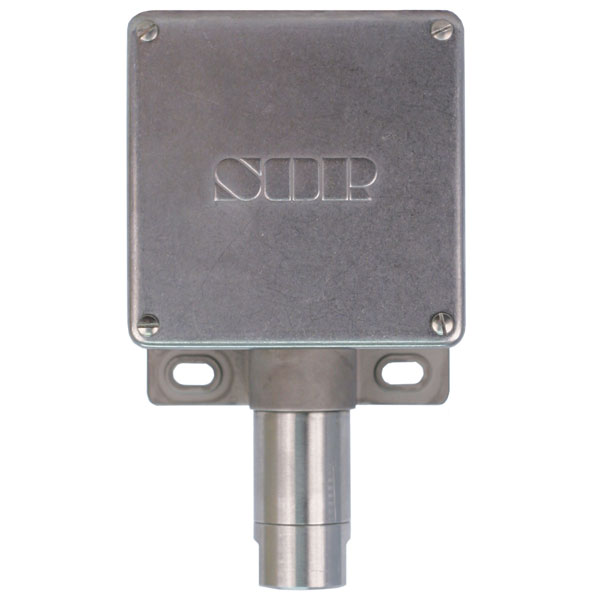

Pressure Switch
OEM : SOR CONTROLS GROUP
Specifications – SOR 12RN-KK614-MI-C2A-XX618
| Attribute | Specification |
|---|---|
| Model | 12RN-KK614-MI-C2A-XX618 |
| Type | Static “O”-Ring Pressure Switch (Weatherproof) |
| Pressure Range | 10–45 inWC (inches of water column) |
| Overrange Pressure | 200 PSI |
| Proof Pressure | 400 PSI |
| Switch Type | SPDT (Single Pole Double Throw) |
| Deadband | ~6.5–7.1 inWC (based on similar models) |
| Set Point Adjustment | Internal screw, factory calibrated |
| Enclosure Rating | NEMA 4 (Weatherproof) |
| Process Connection | 1/4″ NPT Female |
| Wetted Materials | Likely brass or stainless steel (based on KK614 diaphragm code) |
| Temperature Range | –40 to +180°F (–40 to +82°C) |
| Certifications | CSA, UL, SIL (IEC 61508), ATEX (varies by configuration) |
| Application | Low-pressure air, gas, or non-corrosive fluid systems |
