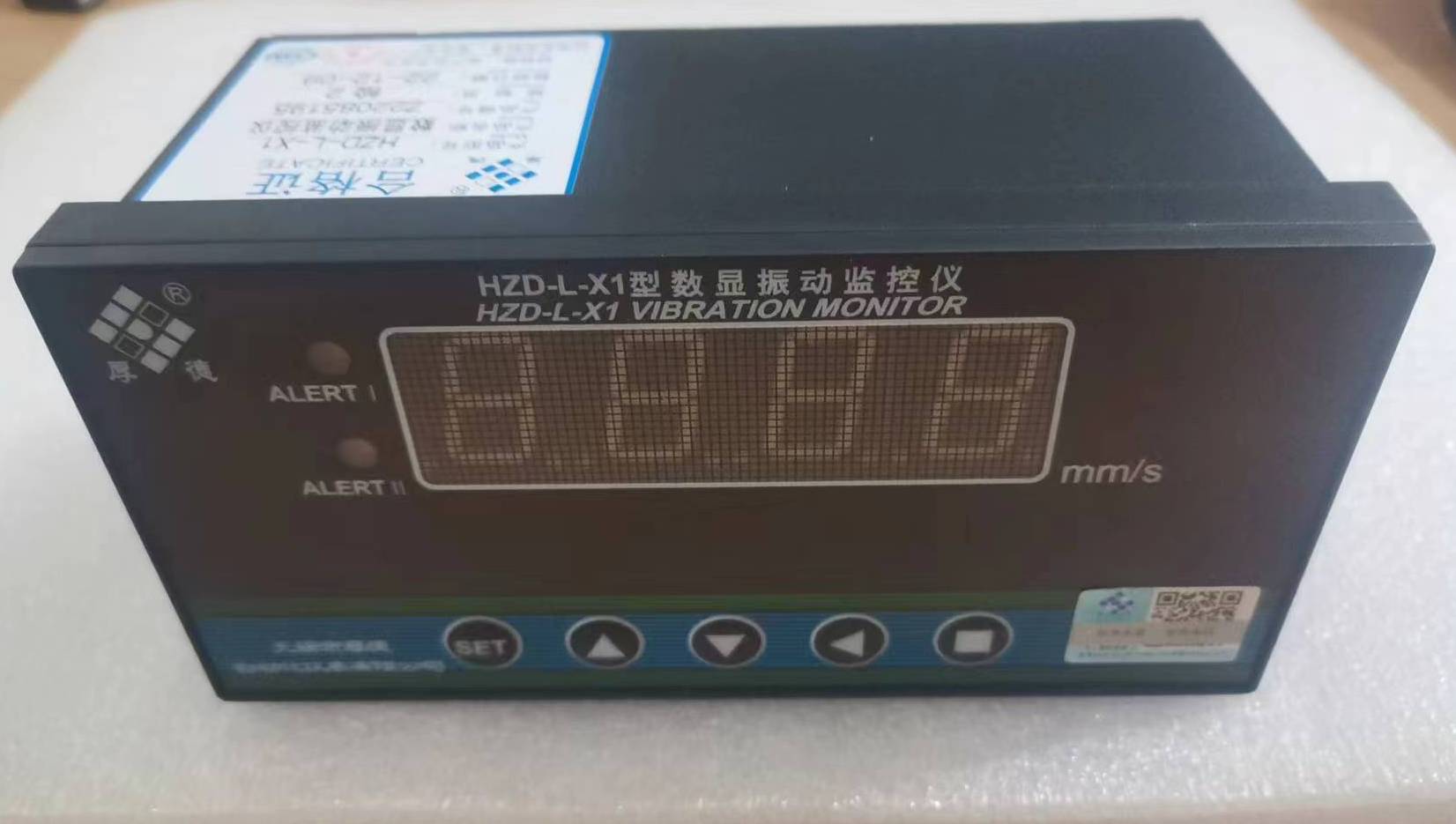

Wuxi Houde | HZD-L-X1 Intelligent Vibration Monitoring and Protection Instrument

HZD-L-X1 Vibration Monitoring and Protection Instrument HZD-L-X1 intelligent vibration monitoring instrument is equipped with ST series magnetoelectric vibration velocity sensor, which can monitor the vertical and horizontal vibration of rotating machinery.

The vibration intensity value is displayed by the meter on the front panel of the instrument. It also has standard current output and can be connected with various DCS and PLC systems.

When the vibration value exceeds the alarm, the instrument can be connected with an external sound and light alarm to prompt the on-site operator to take preventive measures, and has alarm and danger switch output to protect the safe operation of the machine.

Technical indicators:

Power supply   : 220VAC ± 10% 50Hz

Measuring range    : 0 ~ 50.0mm/s ( true effective value )

Accuracy: ± 1% (full scale)

Current output: 4 ~ 20mA , output load ≤ 500Ω

Relay: DC28V/1A or 220VAC/2A , normally open contact

Alarm setting: Any setting within the full range

Temperature range: 0 ℃ ~ +65 ℃ ; Storage: -30 ℃ ~ +80 ℃

Relative humidity: up to 95% , non-condensing

Dimensions: 160 × 80 × 90 mm

Opening size: 152+1 × 76+1mm

Weight    : about 1KG

Ordering Code:

HZD-L-X1 Digital Vibration Monitor; HZD-L-XD Digital Vibration Monitor
