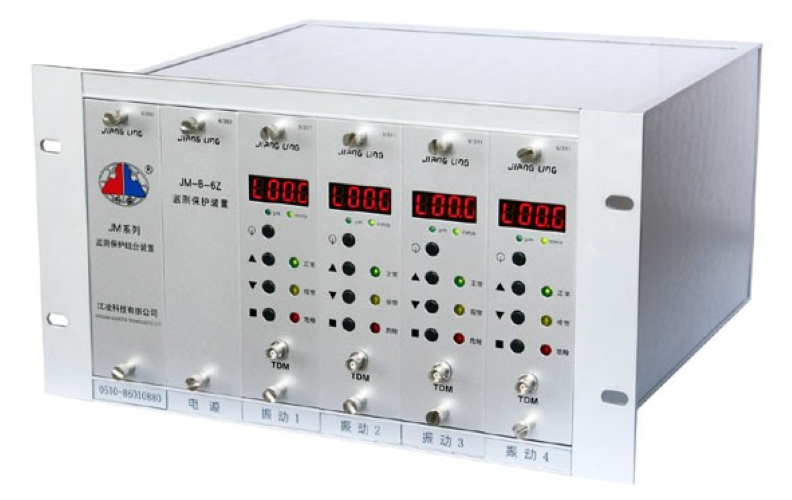

Bearing Vibration Module
JM-B-6Z monitoring and protection device is integrated sensor technology, signal processing, computer application technology, such as a new generation of chemical industry-wide. It has a new generation of high-performance PHILIPS microcontroller as a core processors using high-precision A/D converter chip, so that the instrument is the traditional device monitoring instruments unparalleled advantages.
It is mainly used in large or middle mechanism devices in the power, petrochemical, metallurgy, oil refining, steel and other industrial fields, such as steam turbines, water turbines, compressors, gas turbines, fans, motors, pumps etc. It is for measuring and monitoring of security-related shaft vibration, Vibration-and differential expansion, eccentricity, axis displacement, speed, thermal expansion, oil motivation trip, temperature and other major mechanical parameters. Continuous monitoring equipment running through the important parameters, timely understanding of the operation of equipment for signs of premonitions of the accident to provide important data, the failures have occurred in rapid diagnosis of, timely reasons for that failure, to remind staff to take the necessary operation measures for the safe operation of equipment to provide reliable protection
System Description
Technical Parameters :
| Parameter name | describe |
| Dimensions | (40×chassis surface + 58mm) (length) × 161.5mm (height) × 200mm (depth) |
| Mounting hole location dimensions | (40×chassis surface + 27mm) (length) × 140mm (height) |
| Current output | 4～20mA (load ≤1KΩ) |
| Switching quantity | Secondary switch output (DC27V/2A or AC250V/5A) |
| Power supply | AC220V/50Hz±10% |
| environment | Working temperature: -10～65℃, relative humidity: ≤85% |
Frame chassis code size comparison table:
| Code | Number of channels | Chassis table position | Overall dimensions (mm) L×H×S |
Opening size (mm) L×H |
| 1 | 2 | 4-digit | 218×161.5×200 | 187×140 |
| 2 | 3 | 5th place | 258×161.5×200 | 227×140 |
| 3 | 4 | 6-digit | 298×161.5×200 | 267×140 |
| 4 | 5 | 7-bit | 338×161.5×200 | 307×140 |
| 5 | 6 | 8-bit | 378×161.5×200 | 347×140 |
| 6 | 7 | 9-digit | 418×161.5×200 | 387×140 |
| 7 | 8 | 10-bit | 458×161.5×200 | 427×140 |
| 8 | 9 | 11th place | 498×161.5×200 | 467×140 |
| 9 | 10 | 12-bit | 538×161.5×200 | 507×140 |
| a | 11 | 13th | 578×161.5×200 | 547×140 |
| b | 12 | 14-bit | 618×161.5×200 | 587×140 |
Product Name : Vibration module
Model : JM-B-6Z-6/311
Brand : JIANGLING TECHNOLOGY
