Deskripsi

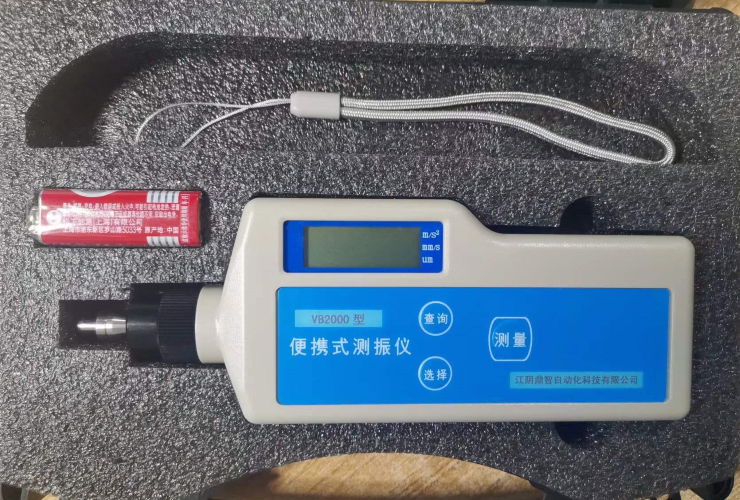

Portable Vibration Tester
- Model: VB2000
- Type: Portable Vibration Tester
- Display mode: digital
- Measuring range: 0-1999
- Measurement accuracy: 5%
- Frequency range: 10-500Hz
- Power supply: DC9V
- Customized processing: Customized processing
- Dimensions: 176×68×31mm
- Weight: 0.3kg
- Brand: Jiangyin Zhonghe
Overview:
VB2000 portable vibration meter is used for routine measurement of mechanical equipment, especially vibration measurement of rotating machinery and reciprocating machinery. It can measure three parameters: vibration displacement, velocity (intensity), and acceleration. It is widely used in machinery manufacturing, electric power, petroleum, chemical industry, metallurgy and other industrial sectors to conduct patrol inspections on various mechanical vibrations.
Features:
Built-in sensors form a complete measurement system
3.5-digit LCD display
Powered by 9V laminated battery, with low battery voltage indication function to ensure measurement accuracy
If there is no input signal for about 1 minute, the machine will automatically shut down.
Small size, light weight, easy to carry
Technical Indicators:
Vibration displacement (peak to peak value): 1 ~ 1999um
Vibration severity (effective value): 0.1 ~ 199.9 mm /s
Vibration acceleration (half peak value): 0.1 ~ 199.9 mm /s 2
System linearity error: ≤± 5%
Frequency response: 5 ~ 1000Hz
Power supply : 6F 22 9V laminated battery
Operating environment: 0 ℃ ~ +45 ℃ , relative humidity: ≤ 85%
Dimensions: 176 × 68 × 31mm
Weight : Approx. 280g
