Integrated Split Vibration Transmitter
- Model: HZD-BIS
- Product Name: Vibration Transmitter
- Type: Transmitter
- Display mode: 4-20mA output
- Measuring range: 0～20.0mm/s
- Measurement accuracy: 2%
- Frequency range: 5～300Hz
- Power supply: AC220V
- Customized processing: Customized processing
- Dimensions: 76×100×65mm
- Brand: Wuxi Houde
Overview:

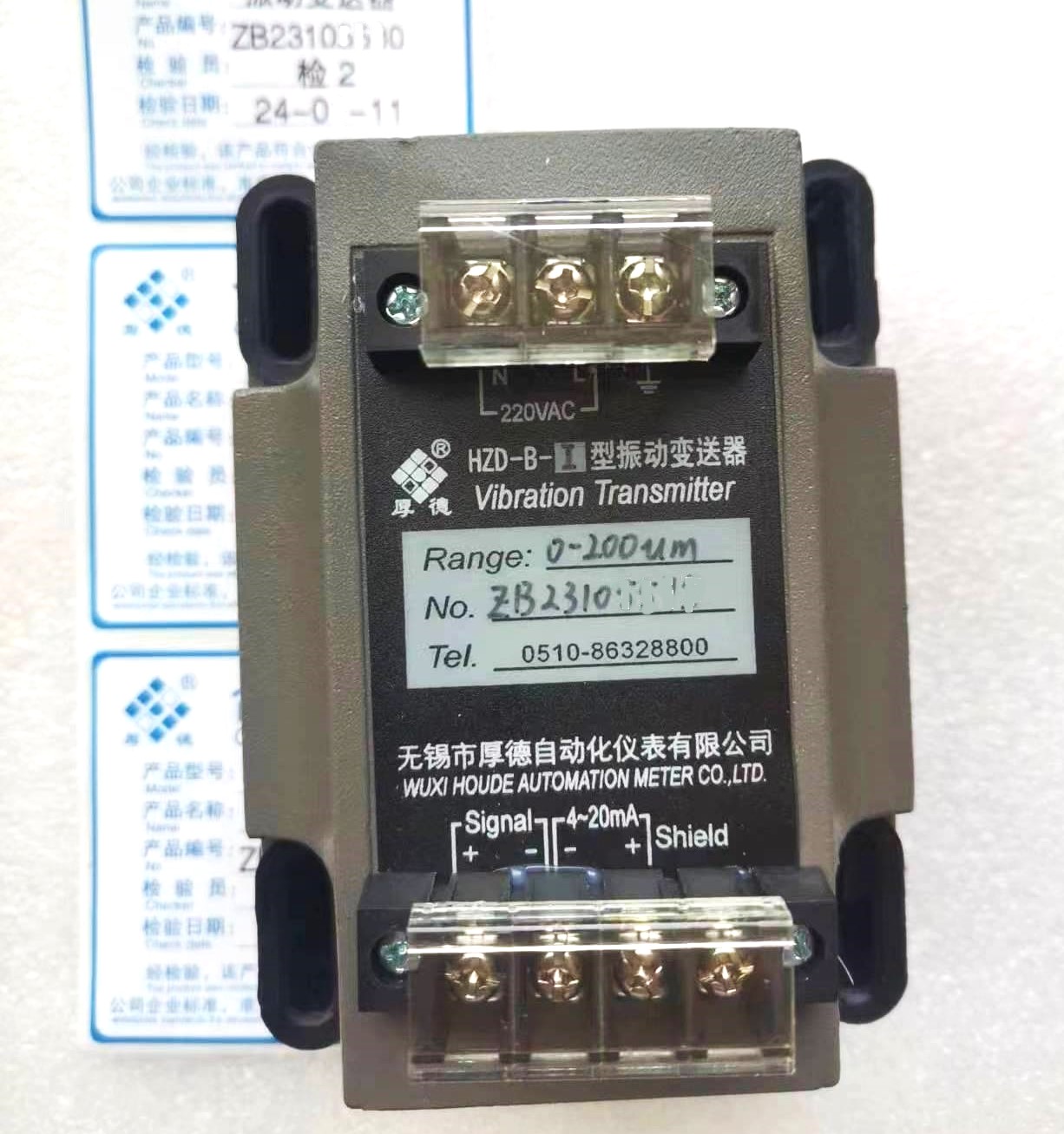

HZD-B-1 HZD-BS integrated split vibration transmitter is used with ST series speed sensor, mainly used to detect vibration of rotating machinery, such as housing vibration, bearing vibration, mechanical vibration, etc.; monitor vibration changes caused by rotor imbalance, misalignment, loose parts, rolling bearing damage, gear damage, etc. It is suitable for large rotating machinery such as steam turbines, water turbines, fans, compressors, oxygen generators, motors, pumps, gear boxes, etc., especially for the transformation of old units.
Technical parameters:
Power supply: 220VAC or 24V DC
Input signal: accepts the signal of a ST series vibration velocity sensor
Sensitivity: 20mv/mm/s
Frequency response : 5 ~ 300Hz
Input impedance : > 100KΩ
Range : 0 ~ 50.0mm /s (true effective value)
Accuracy: ±1 % full scale
Current output: 4 ~ 20mA , output load ≤ 500Ω
Dimensions: 76 × 100 × 65mm
Screw hole size: 64 × 76mm
Weight : 1Kg
Selection example :
HZD-BI vibration transmitter ; HZD-BS vibration transmitter
