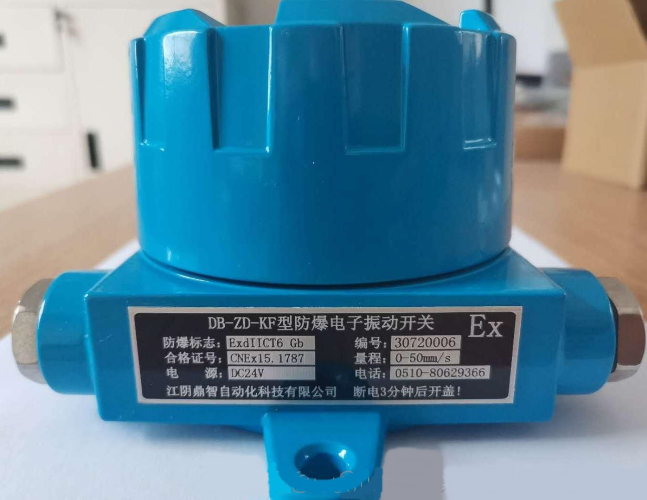

Jiangyin Zhonghe | DB-ZD-KF Explosion-Proof Electronic Vibration Switch (Centrifuge Vibration Protection Device) has Explosion-Proof Certificate

Overview:

DB-ZD-KF explosion-proof electronic vibration switch (centrifuge vibration protection device) has an explosion-proof certificate and can monitor abnormal vibration of the machine and predict damage to the machine. The electronic vibration switch can continuously monitor the vibration of the machine. When the vibration of the machine exceeds the allowable value, the vibration switch will provide an alarm signal or shut down the power supply of the machine to protect the machine. The electronic vibration switch is suitable for various rotating machines, such as motors, centrifuges, fans, water pumps, etc.

DB-ZD-KF explosion-proof electronic vibration switch (centrifuge vibration protection device) has explosion-proof certificate Technical parameters :

Measuring range: 0 ~ 50mm /s ( RMS )

Display mode: 3- digit 0.36 -inch LED digital display

Resolution: 0.1mm /s

Frequency response : 5 ~ 400Hz ( intensity ) , -3dB

Measurement accuracy: ±2 levels ( linear error at 30Hz )

Measuring direction: perpendicular to the installation surface

Current output: 4 ~ 20mA , accuracy ≤± 1% , load ≤ 400Ω

Alarm indication: Alarm value I, Alarm value II, red LED

Alarm output: Two high alarms, normally open

Alarm delay: 3 seconds by default, can be set within 1-9 seconds

Contact capacity: 3A /AC250V , DC28V

Operating environment: temperature 0 ~ 50 ℃, relative humidity 20 ~ 90%

 Explosion-proof mark: Exd Ⅱ C T6 Gb

 Certificate No.: CNEx20.1334X

Protection level: IP65

Power supply: AC100 ~ 260V , DC24V ± 4V ; power consumption ≤3W

Dimensions: 77×140mm , height 92mm

Installation size: 116×116mm (equilateral triangle)

Mounting screw: M6×15 mm

Weight : Approx. 1.5kg
