Deskripsi

Eddy Current Preamplifier

  • Model: WT0112-11
  • Application type: Eddy current
  • Working principle: Inductive
  • Output signal: Analog type
  • Material: Metal film
  • Displacement characteristics: linear displacement
  • Measuring range: small displacement
  • Nominal resistance: 20Ω
  • Repeatability: 2%
  • Linear accuracy: 2%
  • Sensitivity: 4v
  • Linearity: 2%
  • Hysteresis: 1%
  • Repeatability: 1%
  • Drift: 1%
  • Customized processing: Customized processing
  • Brand: Wuxi Houde

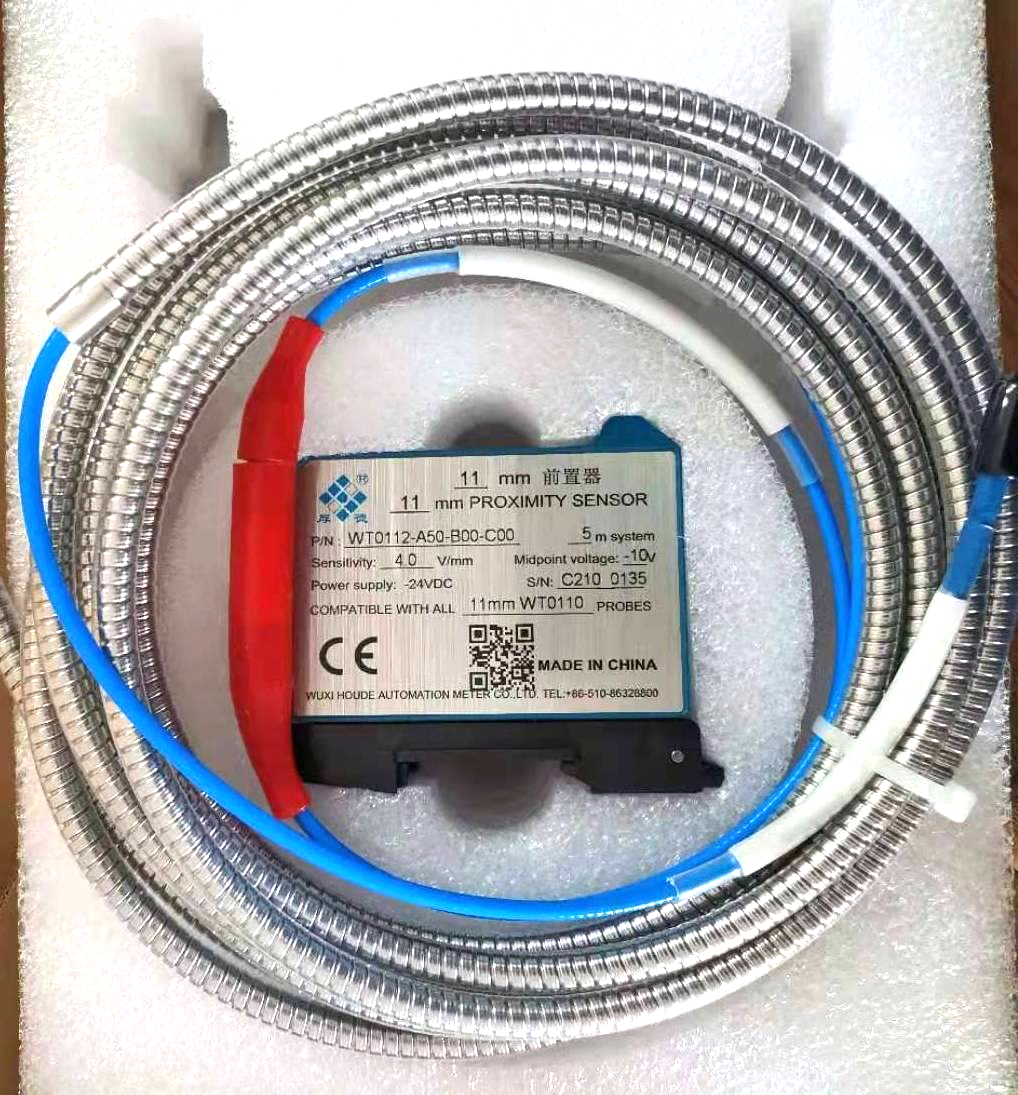

Wuxi Houde’s original WT0112 11mm eddy current preamplifier can measure the relative position between the measured object (must be a metal conductor) and the probe end face. Since the eddy current displacement sensor has good long-term working reliability, high sensitivity, strong anti-interference ability, non-contact measurement, fast response speed, and is not affected by media such as oil and water, it is often used for long-term real-time monitoring of parameters such as shaft displacement, shaft vibration, and shaft speed of large rotating machinery. It can analyze the working condition and cause of failure of the equipment, effectively protect the equipment and perform predictive maintenance.

Selection example of WT0112 11mm eddy current preamplifier :

WT0112 11mm eddy current preamplifier WT-φ5mmaxis vibration eddy current sensor includes:

WT0150 probe: WT0150-A07-B00-C05-D50

WT0152 preamplifier: WT0152-A50-B00-C01, WT0152-A90-B00-C00

WT0181 extension cable: WT0181-A40-B00, WT0181-A80-B01

WT0112 11mm eddy current preamplifier WT-φ8mmshaft vibration axial displacement eddy current sensor includes:

WT0180 probe: WT0180-A07-B00-C05-D50

WT0182 preamplifier: WT0182-A50-B00-C01, WT0182-A90-B00-C00

WT0181 extension cable: WT0181-A40-B00 , WT0181-A80-B01

WT0112 11mm eddy current preamplifier WT-φ11mmaxial displacement eddy current sensor includes:

WT0110 probe: WT0110-A00-B00-C05-D50

WT0112 preamplifier: WT0112-A50-B00-C01, WT0112-A90-B00-C00

WT0181 extension cable: WT0181-A40-B00 , WT0181-A80-B01

WT0112 11mm eddy current preamplifier WT- φ18mmdifferential expansion eddy current sensor includes:

WT0180 probe: WT0186-A00-B00-C05-D50

WT0188 preamplifier: WT0112-A50-B00-C01, WT0112-A90-B00-C00

WT0181 extension cable: WT0181-A40-B00 , WT0181-A80-B01

WT0112 11mm eddy current preamplifier WT-φ25mmdifferential expansion eddy current sensor includes:

WT0120 probe: WT0120-A00-B00-C05-D50

WT0122 preamplifier: WT0122-A50-B00-C01, WT0122-A90-B00-C00

WT0181 extension cable: WT0181-A40-B00 , WT0181-A80-B01
