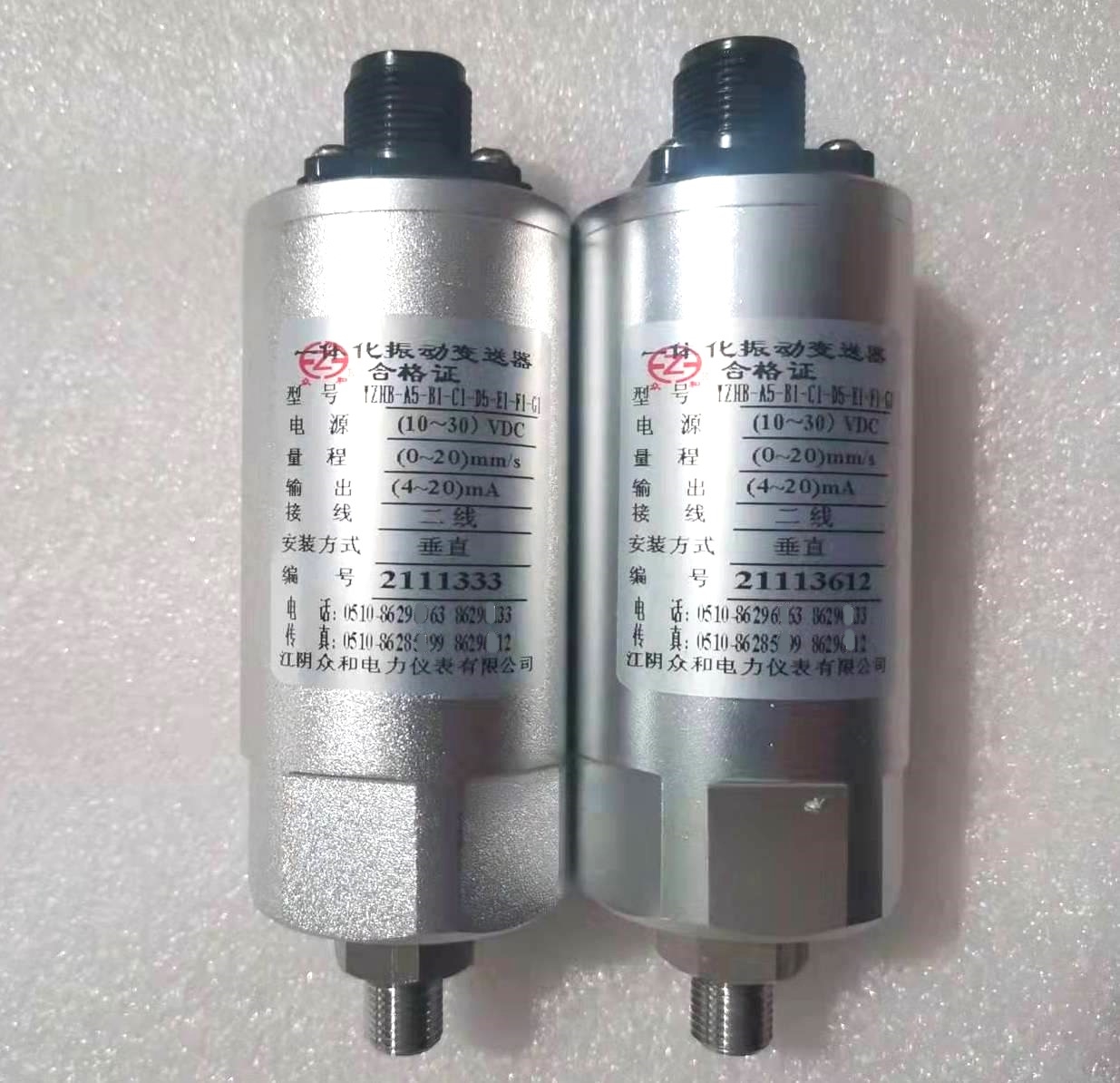

Jiangyin Zhonghe | YZHB-A5 Vibration Monitoring Sensor Transmitter

Overview:

YZHB-A5 vibration monitoring sensor transmitter integrates magnetoelectric speed sensor and precision measurement circuit, realizing the function of the traditional “sensor + transmitter” mode vibration measurement system, suitable for building economical high-precision vibration measurement system. The transmitter can be directly connected to DCS , PLC or other systems, and is an ideal choice for vibration measurement of factory equipment such as fans and water pumps. The reliable intrinsically safe design enables the YZHB integrated vibration transmitter (referred to as transmitter) system to be used in flammable and explosive environments, and the intrinsic safety certification level is Exia Ⅱ CT6 Ga .

To meet the measurement needs, YZHB-A5 vibration monitoring sensor transmitterWe provide two-wire, vibration velocity and vibration displacement transmitters with multiple ranges. According to the use environment and installation requirements, we provide three basic appearances and multiple specifications of mounting threads. The transmitter complies with GB3836.1-2010 “Explosive Atmospheres Part 1 : General Requirements for Equipment” and GB3836.4-2010 ” Explosive Atmospheres Part 4 : Equipment Protected by Intrinsically Safe ” i “” standards; the explosion-proof mark is Exia Ⅱ CT6 Ga , which is suitable for Zone 0 , Zone 1 , Zone 2 , containing IIA ~ IIC , T1 ~ T6 explosive gas mixtures.

YZHB-A5 vibration monitoring sensor transmitter order code:

YZHB-A□ -B □ -C □ -D □ -E □ -F □ -G □

YZHB-A5 vibration monitoring sensor transmitter

Selection example:   YZHB-A2-B1-C1-D5-E1-F1-G1 , YZHB-A5-B1-C1-D5-E1-F1-G1
