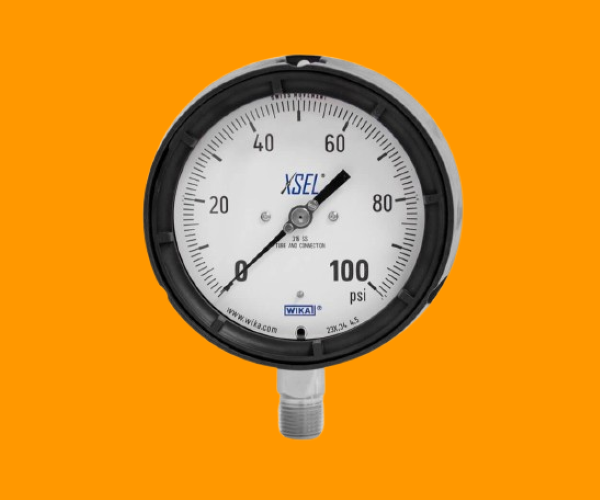

WIKA | 232.34, 233.34 Bourdon Tube Pressure Gauge, Stainless Steel XSEL® Process Pressure Gauge

• Excellent load-cycle stability and shock resistance
• Safety version with solid baffle wall designed in compliance with the requirements and test conditions of ASME B 40.100
• With case filling (model 233.34) for applications with high dynamic pressure loads and vibrations
• Scale ranges from 0 … 10 to 0 … 30,000 psi [0 … 0.6 to 0 … 2,000 bar]
• QR code on dial links to instrument-specific information
• Brand : WIKA Alexander Wiegand

Description:

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.
The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries.
Scale ranges of 0 … 10 to 0 … 30,000 psi [0 … 0.6 to 0 … 2,000 bar] ensure the measuring ranges required for a wide variety of applications.
WIKA manufactures and qualifies the pressure gauge in accordance
with the standard ASME B40.100. As a safety function, this instrument has a solid baffle wall with blow-out back.
In the event of a failure, the operator is protected at the front
side, as media or components can only be ejected via the
back of the case.
The glass-fibre reinforced POCAN® case offers the necessary stability for reproducible measurements, even under aggressive ambient conditions.
With the model 233.34, the case filling in combination with a screwed-in restrictor enables use in applications with highly dynamic pressure loads and vibrations

Applications:

■ For applications with highly dynamic pressure loads and
vibrations
■ For gaseous and liquid aggressive media that are
not highly viscous or crystallising, also in aggressive
environments
■ Process industry: Plant construction, chemical industry,
petrochemical industry, power plants, mining, on-/offshore
and environmental technology
■ Machine building and general plant construction
