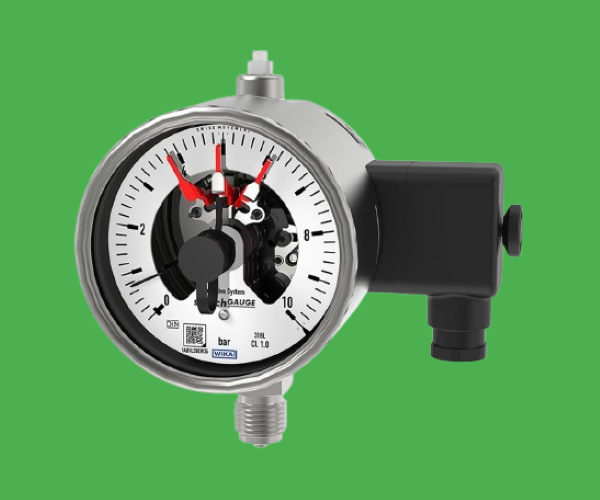

Bourdon Tube Pressure Gauge with Switch Contacts
- Also available with case filling for high dynamic pressure loads or vibrations
- Instruments with inductive contacts for use in hazardous areas
- Instruments with contacts for PLC applications
- Safety version with solid baffle wall (Solidfront) available
- QR code on dial links to instrument-specific information
- Brand : WIKA Alexander Wiegand
Description:
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, this switch GAUGE finds its use.
Switch contacts (electrical switch contacts) make or break an electric control circuit dependent upon the pointer position of the indicating measuring instrument. The switch contacts are adjustable over the full extent of the scale range (see DIN 16085), and are mounted predominantly below the dial, though also partly on top of the dial. The instrument pointer (actual value pointer) moves freely across the entire scale range, independent of the setting.
The set pointer can be adjusted using a removable adjustment key in the window.
Switch contacts consisting of several contacts can also be set to a single set point. Contact actuation is made when the actual value pointer travels beyond or below the desired set point.
As switch contacts, magnetic snap-action contacts, reed switches, inductive contacts and electronic contacts are available. Inductive contacts can be used in hazardous areas. For triggering programmable logic controllers (PLC), electronic contacts and reed switches can be used.
The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.
Applications:
■ Control and regulation of processes
■ Monitoring of plants and switching of circuits
■ For gaseous and liquid aggressive media that are
not highly viscous or crystallising, also in aggressive
environments
■ Chemical industry, petrochemical industry, power plants,
mining, on-/offshore, environmental technology, machine
building and general plant construction
Specifications:
| Connection location | ■ Lower mount (radial) ■ Lower back mount |
|---|---|
| Nominal size | 4″, 6″ |
| Scale ranges | 0 … 0.6 kPa to 0 … 1600 kPa, or other equivalent units of pressure, vacuum or compound |
| Accuracy | ±2.5% F.S.、±1% F.S. |
| Process connection | 316L SS, Monel 400 1/4, 1/2 G, R, NPT |
| Window | Safety glass, plastic |
| Movement | Stainless steel |
| Ambient temperature | -20℃ … 100℃ |
| Medium temperature | -20℃ … 60℃ |
| Ingress protection per IEC/EN 60529 | IP65, IP66 |
