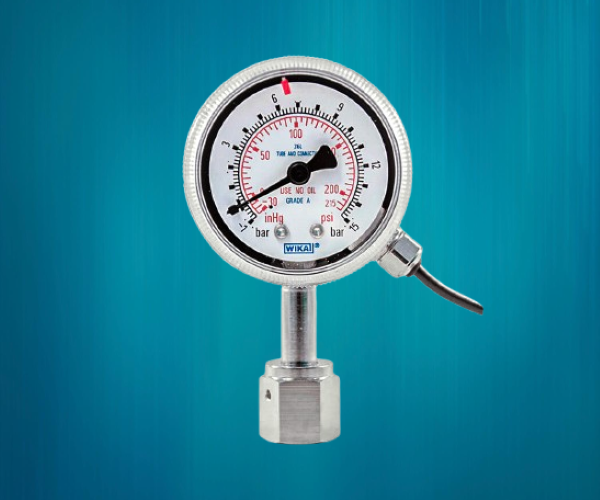

UHP Series Bourdon Tube Pressure Gauge Stainless Steel Version
Model: 230.15
- VCR® compatible face seal fittings
- Helium leak tested
- Electropolished case
- Process connection surface finish Ra ≤ 0.25 μm
- Brand : WIKA Alexander Wiegand
Description:
■ For gaseous and liquid, also aggressive media for demanding high purity applications, also in aggressive ambience ■ For all UHP (ultra high purity) applications ■ Semiconductor and flat panel industry ■ Gas distribution systems, medical gases ■ Hook-up application
Specifications:
| Connection location | ■Lower mount ■Centre back mount |
|---|---|
| Nominal size | ■1 ½” ■2″ |
| Scale ranges | 0 … 1 to 0 … 400 bar ([0 … 15 to 0 … 6,000 psi] or all other equivalent vacuum or combined pressure and vacuum ranges |
| Accuracy | ■NS 1.5″: Grade B per ASME B40.1 ■NS 2″: Grade A per ASME B40.1 |
| Process connection | Stainless steel 316L, lower mount (LM) or centre back mount (CBM) VCR® compatible face seal fitting optionally: with union nut with male nut or with male thread 9/16-18 UNF fixed |
| Case | ■Stainless steel, ■electropolished |
| Window | Polycarbonate NS ■1.5″: Snap-in window NS ■2″: Cleaning Screw-fitted on case (twist lock) |
| Dial | Aluminium, white, black lettering, with pointer stop pin |
| Pointer | Aluminium, black |
| Movement | Stainless steel |
| Ambient temperature | -40 … +60 °C |
| Medium temperature | +100 °C maximum |
| IP rating | IP 54 per EN 60529 / lEC 529 |
