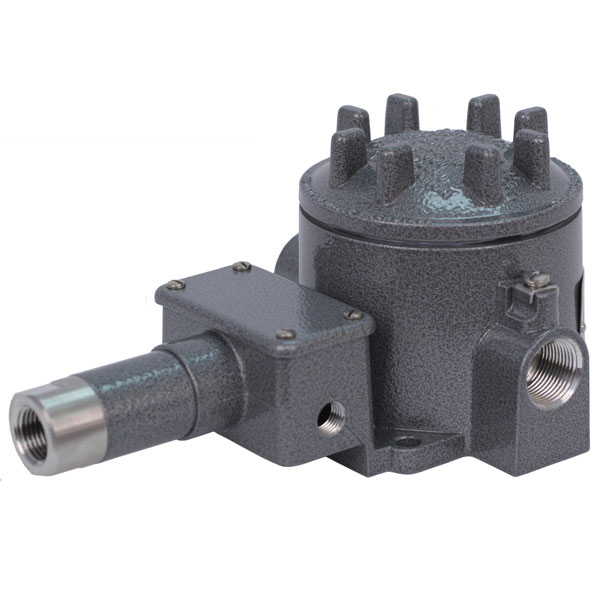

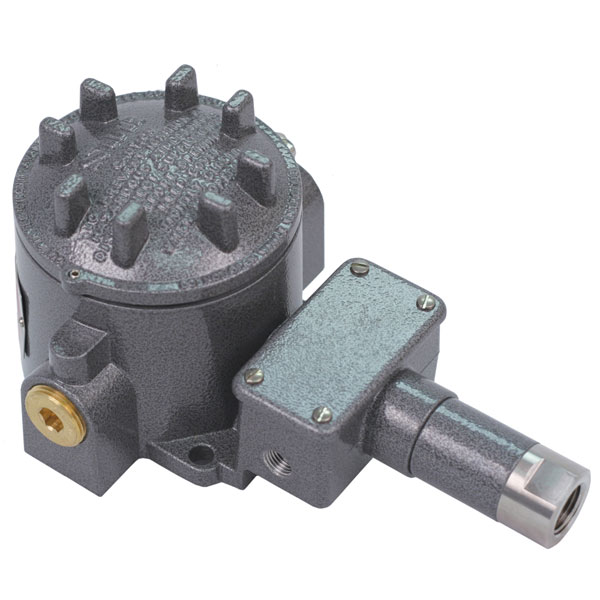

Weatherproof Pressure Switch
OEM : SOR CONTROLS GROUP
Specifications – SOR 5B3-KK45-MI-C2A-C1XX616
| Attribute | Specification |
|---|---|
| Model | 5B3-KK45-MI-C2A-C1XX616 |
| Type | Weatherproof Pressure Switch |
| Pressure Range | 45–505 PSI (adjustable) |
| Overrange Pressure | 1500 PSI |
| Proof Pressure | 2500 PSI |
| Switch Type | SPDT (Single Pole Double Throw) |
| Electrical Rating | 15A @ 250 VAC, 5A @ 30 VDC |
| Enclosure Rating | NEMA 4 (Weatherproof) |
| Process Connection | 1/4″ NPT Female |
| Wetted Materials | Likely stainless steel or brass (based on KK45 diaphragm code) |
| Temperature Range | –40 to +180°F (–40 to +82°C) |
| Certifications | CSA, UL, SIL (IEC 61508), INMETRO (varies by configuration) |
| Application | Oil & gas, compressors, pumps, hydraulic systems, general industrial use |
