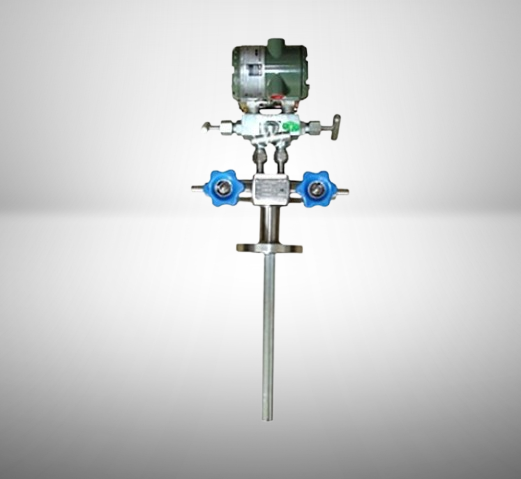

Verabar Averaging Pitot Tubes
Model : SI-3703
Brand : SINO INSTRUMENT
| Diameter | DN8～DN8000 |
| Accuracy | ±1.0% |
| Temp. range | – 100 ° C ~ 800 ° C |
| Pressure | 0 ~ 40Mpa |
| Medium | air, gas, flue gas, natural gas, tap water, boiler feed water,
containing rot solution; saturated steam, superheated steam, etc |
Feature :
1. The VERIS verbal flowmetercan be used for flow measurement, of various media such as liquid, gas and steam flow;
2.VERIS verbal flowmeter structure, small pressure loss, easy installation and disassembly, small maintenance;
3. Suitable for flow measurement of large pipelines and irregular pipelines;
4. The pressure loss is small (compared with the orifice plate, only 5% or less of the orifice plate), greatly reducing the power consumption, and the energy-saving effect is remarkable.
5. Integrated structure, good set;
6. The pipe diameter adapts to a large range. When the pipe diameter is larger, the plug-in structure is adopted, and its superiority is more prominent;
7. Accuracy and long-term stability are good, the accuracy can reach 1%, and the stability can reach ±0.1%;
8. Multi-parameter intelligent transmission, full dynamic temperature and pressure automatic compensation. Unaffected by pressure and temperature changes.
9. On-site instructions and remote transmission are compatible, which facilitates system setup and network access.
10. Open digital platform, multi-purpose serial access.
Specifications :
1. The ranges ratio of 20:1
2. General pipe diameter: 8mm ~ 8000mm;
3. Measurement accuracy: ±1.0%;
4. Repeatability: ± 0.1%;
5. Working pressure: 0 ~ 40Mpa;
6. Working temperature: -100 ° C ~ 800 ° C;
7. Applicable medium: air, gas, flue gas, natural gas, tap water, boiler feed water, containing rot solution; saturated steam, superheated steam, etc.
8. Reference standards: ISO 3966-197, JB/T5325-1991, and GB/T2624-2006
9. Connection method: plug-in flange connection, plug-in threaded connection, pipe flange connection, pipe thread connection.
