Deskripsi
Servo Valve
- Series : 072
- Model : 072-1202-43
- Brand : MOOG Inc.
The 72 series flow control servo valve is suitable for three-way and, ideally, four-way applications. It features a high-performance two-stage design, covering a rated flow range of 95 to 225 l/min (25 to 60 gpm) under a pressure drop of 35 bar (500 psi) per valve face. The output stage employs a closed four-way sliding valve core structure, while the pilot stage is equipped with a symmetrical dual-nozzle and baffle mechanism, driven by a dual-air-gap dry torque motor. Valve core position is mechanically fed back via a cantilever spring.
Performance characteristics :
Two-stage flow control mechanical feedback (MFB) valve
Low-friction dual-nozzle pilot stage achieves high dynamic response, high resolution, and low hysteresis characteristics.
High valve core driving force and robust design ensure long service life.
Dry torque motor
Optional fifth port for pilot fuel supply
Available in both models with and without filter cartridges.
Filter cartridges can be replaced on-site, making maintenance more convenient.

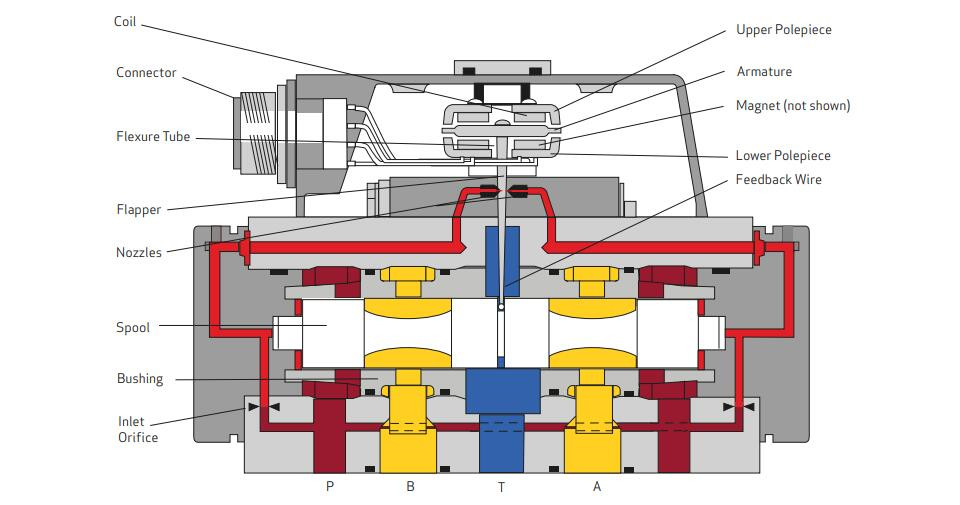

Product Structure and Details :
Optional features and accessories :
Intrinsically safe, high zero bias, magnetic zero-point adjustment, reverse polarity, high-temperature coil, dual gain
Technical Parameters :
| Origin | USA |
| Hydraulic parameters | |
| Environmental parameters | Valve core platform ∆p 35 bar; 500 psi |
| Rated flow rate | 95 to 225 l/min; 25 to 60 gpm |
| Standard configuration | 95, 150, 225 l/min; 25, 40, 60 gpm |
| Max work pressure | 210, 350, or 490 bar; 3,000, 5,000, or 7,000 psi |
| Performance parameters | |
| System pressure | 3,000 psi |
| Step response | 11 to 33 ms |
| Frequency response with 90° phase lag | 80 to 85 Hz |
| Electrical parameters | |
| Single coil rated signal | 8 to 200mA |
| Standard configuration | 8, 15, 40 mA |
| physical parameters | |
| Dimensions (mounting hole spacing) | No. 6 (ISO 10372-06-05-0-92) |
| Steel valve body weight | 7.26 kg; 16.0 lbs |
| Aluminum valve body weight | 3.52 kg; 7.8 lbs |
| Valve structure | The two-stage structure includes a valve core, bushing, and dry torque motor. |
| pilot valve | Standard dynamics of nozzle baffle |
| Installation Specifications | ISO 10372-06-05-0-92 |
| Installation location | Any location, fixed or movable |
| Storage temperature range | -40 to +60 ℃; -40 to +140 ℉ |
| Ambient temperature range | -29 to +135 ℃; -20 to +275 ℉ |
| Vibration resistance | 30 g, triaxial, 10 Hz to 2 kHz |
| Impact resistance | 30 g, triaxial |

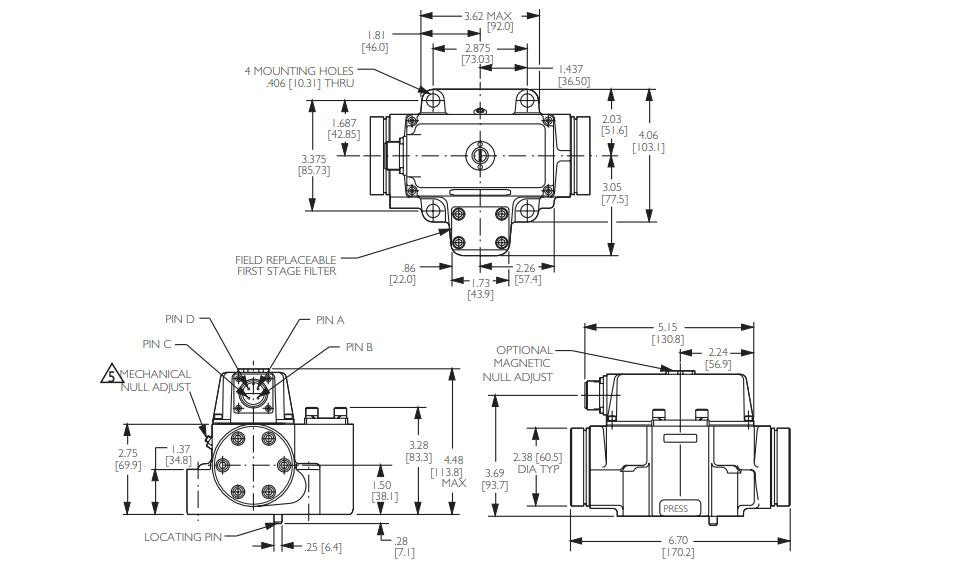

Product Dimensions :
