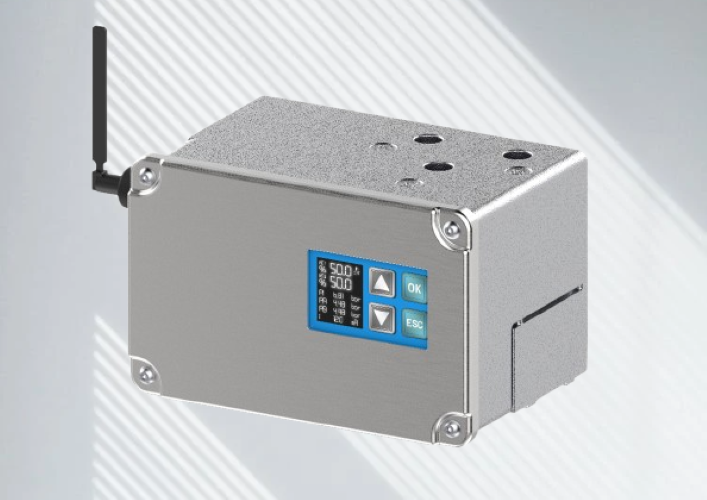

Smart High Performance Positioner
SHP is a high-capacity and high-precision digital-pneumatic positioner, mainly used as valve care controller. Its flow rate, the highest on the market, and its control algorithm system and logic, patented by STI, guarantee unique dynamic performances and very low stroking time at the same time. Advanced diagnostic (On-Line & Off-Line) developed to meet all customer needs.
Specifications :
- Type: Positioner
- Model: SHP
- Series: PT Series
- Input Signal: 4-20 mA with HART 7 protocol
- Standard operating temperature: -55°C to 85°C
- Supply pressure: 2.5÷10.4 Bar – 150 Psi
- Pneumatic connections: 1/2″ NPTF
- Power (2 wire from signal): 10/30 Vdc (Ex ia), 17/30 Vdc (Ex ia fail freeze), 18/30 Vdc (Ex d)
- Air consumption: CV=2.3 1.5 Nm3/h at 6 bar, CV=0.3 0.5 Nm3/h at 6 bar
- Hysteresis + deadband: ±0.10%
- Repeatibility: ±0.05%
- Linearity: ±0.3%
- Sensitivity: ±0.1%
- Brand: IMI STI
