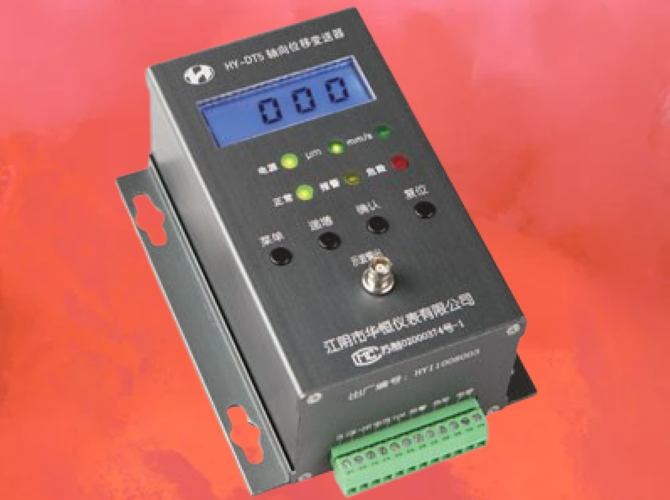

Axial Displacement/Differential Expansion Transmitter (LCD Display)
• Model: HY-DT5
• Series: HY Series
• Manufacturer: Jiangyin Instrument Co., Ltd.
HY-DT5 series displacement transmitter is used with CWY-DO eddy current sensor to measure axial displacement and differential expansion of various rotating machinery. It outputs standard 4-20 mA current signal to PLC and DCS system and has LCD display function.
Specifications :
Measuring range: 0-10mm;
Input signal: Equipped with CWY-DO series eddy current sensor;
Measurement accuracy: Class 0.5, linearity error ≤±0.5%;
Output signal: Current output: 4-20mA, load resistance ≤850Ω;
Display: LCD
Operating environment: -40°C to 65°C, relative humidity ≤95% (non-condensing);
Supply voltage: DC24V, power consumption ≤1W;
Mounting method: Baseplate mounting or DIN35 rail mounting
Dimensions: 130mm long x 95mm wide x 55mm high;
Baseplate mounting dimensions: 82mm long x 85mm wide;
Fixing holes: 4 x Φ4mm.

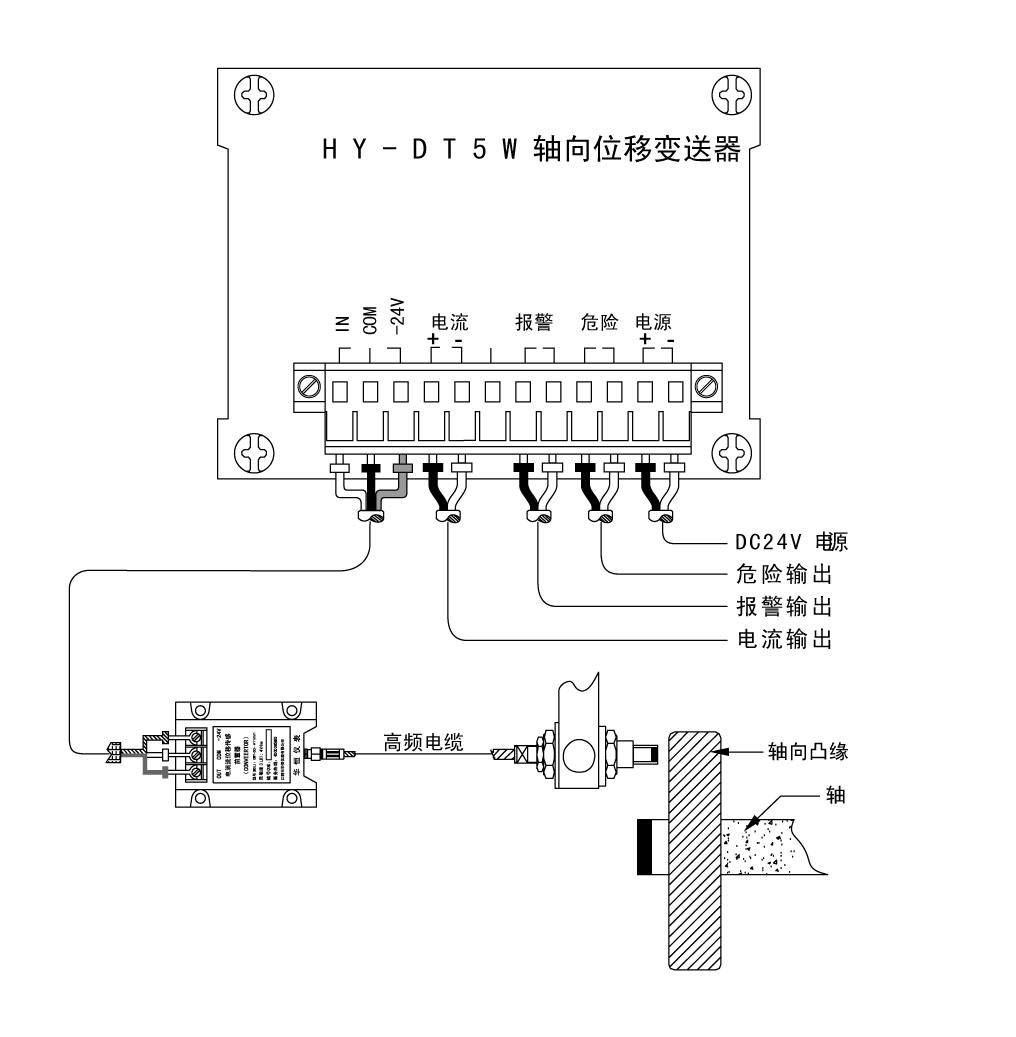

Schematic :
