Clyde | DN250 P30675D-00 Dome Valve

Deskripsi

Dome Valve

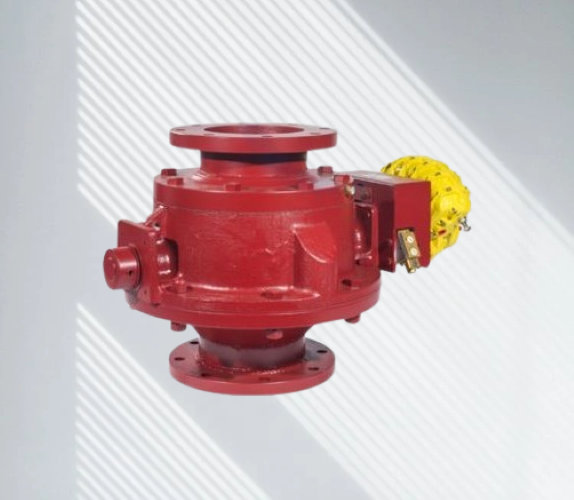

Model : DN250 P30675D-00

Product Name :  Pneumatic Dome Valve

Use : Pneumatic Conveying, Dedicated for Power Plants

Brand : CLYDE VALVE

Introduction to dome valve:

The DN250 P30675D-00 dome valve is designed for pneumatic conveying systems and can also be supplied as a standalone product. Industrial applications include power generation, food, pharmaceuticals, chemicals, plastics, mining, and steel. Commonly used conveying materials include abrasives, granules, powders, ash, chemicals, ores, coal, and fragile items.

Dome valve DN250 P30675D-00 main configuration: fan-shaped cylinder DN250 A1537, limit switch A1011 , shaft seat DN250 CP1915D-00, transmission shaft DN250 CP1910C-00, dome DN250 CP2957A-00, top joint DN250 P29758B-00, collar DN250 CP29619D-00, support ring  DN250 CP29618D-00, insert seal DN250 P2936A-01, valve body DN250 CP17330A-01, combined bearing DN250 P8012D-00, spacer ring DN250 CP4963B-01, O -ring DN250 M5207 , quick exhaust valve DN250 1/2” PD, TD pump  A1067 , etc.

Dome valve principle:

①. The exhaust dome valve can cut off the flowing material flow or static material column entering the pressure tank, and then close to achieve sealing. This ensures that the filling rate in the tank is 100% , and there is no need to rely on the level meter of the sending tank, so the control principle is simple and reliable.

② When handling abrasive materials, the expandable pressure seal ring embedded in the dome valve seat ensures the working pressure difference before and after the valve. The elastic expandable seal ring can be sunken into the material particles, avoiding the sliding of the material particles due to the pressure difference and the wear of the valve seat and seal ring.

③ When slurry, bulk powder, particles, lumps or dust filled with gas will wear the seal ring, resulting in ineffective sealing. The expandable seal ring provides continuous wear compensation. The pressure difference will accelerate the wear of the traditional hard seal valve, and the expandable seal ring provides continuous wear compensation.

④. Thermal expansion will hinder the continuous operation of the dome valve; the expandable sealing ring can provide wear compensation in the temperature range of -40 ℃ to 320 ℃; the specially constructed dome valve can perform work above this temperature range.

⑤ The displacement of the rotating dome valve core in the valve body enables the dense material column to rotate, so that the dome valve completely filled with material can pass through the filled material to close and seal.

Characteristics of dome valve:

① Unhindered material flow throughout the chamber

②. Simple and reliable design

③. Flexible opening and closing, can shut down dynamic and static material columns

④. Complete specifications and sizes: DN50-DN300

⑤. A strong pressure seal can be formed when closed

⑥, can withstand temperatures from -20℃ to 480℃

⑦. Long service life and low maintenance

⑧. The material conveying system of the power plant operates normally, and the service life of the plug-in seal ring is more than one year
