Electric Actuator Switch Type
M8210, M8211, M8220, M8221, M8222, M8230, M8231, M8232, M8240, M8241, M8250, M8251, M8252,
M8260, M8261 series modular intelligent switch type multi-turn actuator (electric device)
M8210+A8005KD, M8210+A8010KD, M8210+A8020KD, M8220+A8020KD, M8220+A8040KD, M8230+A8040KD, M8230+A8090KD, M8240+A8090KD, M8240+A8260KD, M8250+A8610KD, M8250+A8200KD,
M8240+A8400+G6804KD, M8250+A8400+G6804KD module intelligent switch type direct-connected angle stroke actuator
M8210+A8005KL, M8210+A8010KL, M8210+A8020KL, M8220+A8020KL, M8220+A8040KL, M8230+A8040KL, M8230+A8090KL, M8240+A8090KL, M8240+A8260KL, M8250+A8610KL, M8250+A8200KL,
M8240+A8400+G6804KL, M8250+A8400+G6804KL module intelligent switch type lever type angle travel actuator
M8210C+A8005KD, M8210C+A8010KD, M8210C+A8020KD, M8220C+A8020KD, M8220C+A8040KD, M8230C+A8040KD, M8230C+A8090KD, M8240C+A8090KD, M8240C+A8160KD, M8250C+A8610KD, M8250C+A8200KD, M8240C+A8400+G6804KD, M8250C+A8400+G6804KD Module Intelligent Switch Type Direct-connected Angular Travel Actuator with 4-20mA Output
M8210C+A8005KL, M8210C+A8010KL, M8210C+A8020KL, M8220C+A8020KL, M8220C+A8040KL, M8230C+A8040KL, M8230C+A8090KL, M8240C+A8090KL, M8240C+A8160KL, M8250C+A8610KL, M8250C+A8200KL, M8240C+A8400+G6804KL, M8250C+A8400+G6804KL Module Intelligent Switch Lever Type Angle Travel Actuator with 4-20mA Output

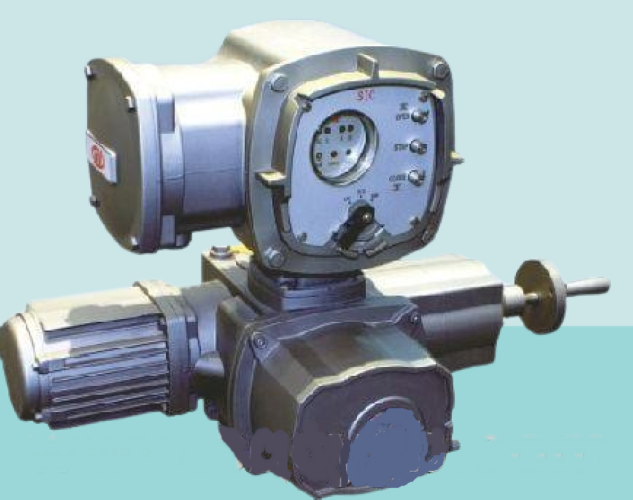

M8210, M8211, M8220, M8221, M8222, M8230, M8231, M8232, M8240, M8241, M8250, M8251, M8252, M8260, M8261, M8200 series switch type electric actuator:
M8200 series module intelligent switch type electric actuator is suitable for 24V switch quantity and passive node control.
This product is an intelligent electric actuator developed by Chongqing Chuanyi Company in cooperation with internationally renowned companies. It is a special device for driving terminal control units (valves, baffles, etc.). It is widely used in metallurgy, chemical industry, petroleum, power stations, heating and water supply systems and sewage treatment systems.
Features
Adopting special motor drive, with good damping characteristics;
Self-locking worm gear transmission;
Speed configurations to meet different needs of users;
Mechanical position detection and indication;
Accept a variety of switch quantity control, including passive / active switch quantity;
With mechanical over-torque protection device;
Stroke end position protection;
The transmission sleeve can be disassembled and processed according to the user’s specific requirements;
Seven output speed options: 0.9/2.3/6.0/15/38/100/250 ;
Protection grade: IP67 ; IP68 optional .
Usage Environment :
——Ambient temperature: -25 ℃～+70 ℃.
——Relative humidity: not more than 95% (25 ° C);
——Atmospheric pressure: 86kPa ~ 106kPa ;
——There is no corrosive medium in the surrounding environment; ——Voltage : 380 × ( 1 ± 10% ) Va.c .;
——Frequency : 50 × ( 1 ± 1% ) Hz ;
——Harmonic content: less than 5% .
Main specifications and parameters :
| Actuator | Output | journey
( r ) |
Flange
( ISO5210 ) |
Motor power kW | Current
A |
Weight kg | |||
| Rated torque Nm | Cutting torque Nm | Speed rpm | Cast Aluminum | cast iron | |||||
| M8 □ 10 | 50 | 70 | 36 | 0~250 | F10 | 0.5 | 0.88 | 25 | 55 |
| M8 □ 11 | 70 | 100 | twenty four | 0.5 | |||||
| M8 □ 20 | 100 | 140 | 36 | 0.85 | 1.75 | 27 | 57 | ||
| M8 □ 21 | 140 | 160 | twenty four | 0.85 | |||||
| M8 □ 22 | 120 | 150 | 12 | 0.5 | 0.88 | 25 | 55 | ||
| M8 □ 30 | 200 | 250 | 36 | F14 | 2 | 3.5 | 38 | 92 | |
| M8 □ 31 | 300 | 375 | twenty four | 2 | |||||
| M8 □ 32 | 300 | 420 | 12 | 0.85 | 1.75 | 38 | 92 | ||
| M8 □ 40 | 400 | 500 | 36 | F16 | 3 | 7.0 | 60 | 150 | |
| M8 □ 41 | 600 | 750 | twenty four | 3 | |||||
| M8 □ 50 | 600 | 750 | 36 | 5 | 10.5 | 75 | 165 | ||
| M8 □ 51 | 900 | 1000 | twenty four | 5 | |||||
| M8 □ 52 | 900 | 1000 | 12 | 3 | 7.0 | 60 | 150 | ||
| M8 □ 60 | 1000 | 1250 | 36 | F25 | 7.5 | 17.5 | 140 | 260 | |
| M8 □ 61 | 1400 | 1600 | twenty four | 7.5 | |||||
