Dome Valve

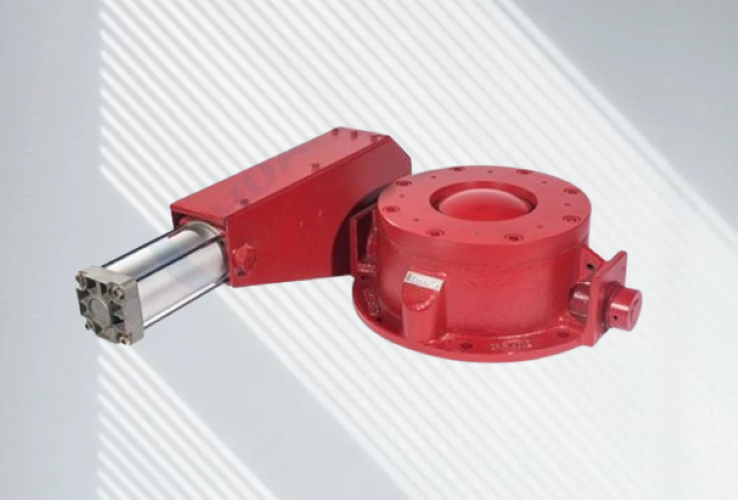

Model : DN200 CH0571D-03
Product Name : Pneumatic Dome Valve
Use : Pneumatic Conveying, Dedicated for Power Plants
Brand : CLYDE VALVE
Introduction to dome valve:
Dome valve DN200 CH0571D-03 is specially used in pneumatic conveying system, and can also be provided to customers as an independent product. Its application fields in industry include power, food, medicine, chemical, plastic, mining, steel and other industries. Commonly used conveying materials are: abrasives, particles, powders, ash, chemicals, ores, coal, fragile products, etc.
Dome valve DN200 CH0571D-03 main configuration: linear cylinder DN200 P22457E-00 , limit switch A1011 , valve body DN200 CP26999B-01, dome DN200 CP1158B-00, transmission shaft DN200 CP1016D-00, combined bearing DN200 P8011D-00, V -type dust ring ￠75 DN200 M3415 , shaft seat DN200 CP19642E-00, VARI sealing ring ￠50 DN200 M1171 , spacer ring DN200 CP2147C-00, spring cylindrical pin￠14X80 DN200 GB879-86, O -type shaft sealing ring ￠50 DN200 M1162 , top plate DN200 CP29669D-00, top joint DN200 P29757B-00, collar DN200 CP29617D-00, support ring DN200 CP29616D-00, plug-in seal DN200 P5524C-01, O -ring DN200 M5206 , casting coupling DN200 CP21761C-00, coupling DN125 DN 150 CP19643E-00, Y plug-in sleeve ￠25 x ￠20 x ￠20 DN200 M3017 , spring cylindrical pin￠14X90 DN200 GB879-86, high temperature plug-in seal DN200 P17460C-01, seal assembly DN200 M3231, bottom joint DN200 CP4355B-00, cylinder repair kit DN200/100 A2376, cylinder upper bracket 200mm dome valve CP21584B-00 , etc.
Dome valve principle:
①. The exhaust dome valve can cut off the flowing material flow or static material column entering the pressure tank, and then close to achieve sealing. This ensures that the filling rate in the tank is 100% , and there is no need to rely on the level meter of the sending tank, so the control principle is simple and reliable.
② When handling abrasive materials, the expandable pressure seal ring embedded in the dome valve seat ensures the working pressure difference before and after the valve. The elastic expandable seal ring can be sunken into the material particles, avoiding the sliding of the material particles due to the pressure difference and the wear of the valve seat and seal ring.
③ When slurry, bulk powder, particles, lumps or dust filled with gas will wear the seal ring, resulting in ineffective sealing. The expandable seal ring provides continuous wear compensation. The pressure difference will accelerate the wear of the traditional hard seal valve, and the expandable seal ring provides continuous wear compensation.
④. Thermal expansion will hinder the continuous operation of the dome valve; the expandable sealing ring can provide wear compensation in the temperature range of -40 ℃ to 320 ℃; the specially constructed dome valve can perform work above this temperature range.
⑤ The displacement of the rotating dome valve core in the valve body enables the dense material column to rotate, so that the dome valve completely filled with material can pass through the filled material to close and seal.
Characteristics of dome valve:
① Unhindered material flow throughout the chamber
②. Simple and reliable design
③. Flexible opening and closing, can shut down dynamic and static material columns
④. Complete specifications and sizes: DN50-DN300
⑤. A strong pressure seal can be formed when closed
⑥, can withstand temperatures from -20℃ to 480℃
⑦. Long service life and low maintenance
⑧. The material conveying system of the power plant operates normally, and the service life of the plug-in seal ring is more than one year
