Electric Actuator Switch Type
M8110, M8111, M8120, M8121, M8122, M8130, M8131, M8132, M8140, M8141, M8150, M8151, M8152, M8160,
M8161 position control switch type multi-turn actuator (electric device)
M8110+A8005KD, M8110+A8010KD, M8110+A8020KD, M8120+A8020KD, M8120+A8040KD, M8130+A8040KD, M8130+A8090KD, M8140+A8090KD, M8140+A8160KD, M8150+A8610KD, M8150+A8200KD,
M8140+A8400+G6804KD, M8150+A8400+G6804KD Position Control Switch Direct-Connected Angular Travel Actuator
M8110+A8005KL, M8110+A8010KL, M8110+A8020KL, M8120+A8020KL, M8120+A8040KL, M8130+A8040KL, M8130+A8090KL, M8140+A8090KL, M8140+A8160KL, M8150+A8610KL, M8150+A8200KL,
M8140+A8400+G6804KL, M8150+A8400+G6804KL Position Control Switch Lever Type Angular Travel Actuator
Sichuan Instrument M8100 switch type electric actuator :
M8110, M8111, M8120, M8121, M8122, M8130, M8131, M8132, M8140, M8141, M8150,
M8151, M8152, M8160, M8161

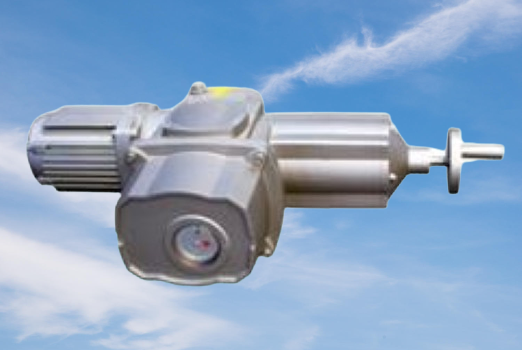

M8100 series switch type electric actuator:
M8100 series position control switch type electric actuator is suitable for 380V active control (MCC cabinet).
This product is an intelligent electric actuator cooperated by Chongqing Sichuan Instrument Company and internationally renowned companies. It is a special equipment for driving terminal control units (valves, baffles, etc.). It is widely used in metallurgy, chemical industry, petroleum, power stations, heating and water supply systems and sewage treatment systems.
Features :
Adopting special motor drive, with good damping characteristics;
Self-locking worm gear transmission;
Speed configurations to meet different needs of users;
Mechanical position detection and indication;
Accept a variety of switch quantity control, including passive / active switch quantity;
With mechanical over-torque protection device;
Stroke end position protection;
The transmission sleeve can be disassembled and processed according to the user’s specific requirements;
Seven output speed options: 0.9/2.3/6.0/15/38/100/250 ;
Protection grade: IP67 ; IP68 optional .
Usage Environment :
——Ambient temperature: -25 ℃～+70 ℃.
——Relative humidity: not more than 95% (25 ° C);
——Atmospheric pressure: 86kPa ~ 106kPa ;
——There is no corrosive medium in the surrounding environment; ——Voltage : 380 × ( 1 ± 10% ) Va.c .;
——Frequency : 50 × ( 1 ± 1% ) Hz ;
——Harmonic content: less than 5% .
Main specifications and parameters :
| Actuator | Output | journey
( r ) |
Flange
( ISO5210 ) |
Motor power kW | Current
A |
Weight kg | |||
| Rated torque Nm | Cutting torque Nm | Speed rpm | Cast Aluminum | cast iron | |||||
| M8 □ 10 | 50 | 70 | 36 | 0~250 | F10 | 0.5 | 0.88 | 25 | 55 |
| M8 □ 11 | 70 | 100 | twenty four | 0.5 | |||||
| M8 □ 20 | 100 | 140 | 36 | 0.85 | 1.75 | 27 | 57 | ||
| M8 □ 21 | 140 | 160 | twenty four | 0.85 | |||||
| M8 □ 22 | 120 | 150 | 12 | 0.5 | 0.88 | 25 | 55 | ||
| M8 □ 30 | 200 | 250 | 36 | F14 | 2 | 3.5 | 38 | 92 | |
| M8 □ 31 | 300 | 375 | twenty four | 2 | |||||
| M8 □ 32 | 300 | 420 | 12 | 0.85 | 1.75 | 38 | 92 | ||
| M8 □ 40 | 400 | 500 | 36 | F16 | 3 | 7.0 | 60 | 150 | |
| M8 □ 41 | 600 | 750 | twenty four | 3 | |||||
| M8 □ 50 | 600 | 750 | 36 | 5 | 10.5 | 75 | 165 | ||
| M8 □ 51 | 900 | 1000 | twenty four | 5 | |||||
| M8 □ 52 | 900 | 1000 | 12 | 3 | 7.0 | 60 | 150 | ||
| M8 □ 60 | 1000 | 1250 | 36 | F25 | 7.5 | 17.5 | 140 | 260 | |
| M8 □ 61 | 1400 | 1600 | twenty four | 7.5 | |||||
