Deskripsi

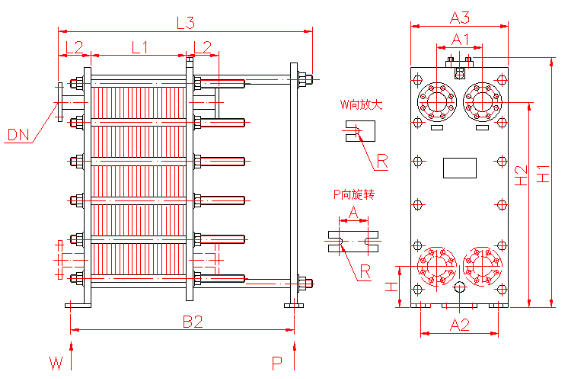

Plate Heat Exchanger
• Type: Plate Heat Exchanger for Lubricating Oil
• Model: BR0.1-4
• Serie : BR Series
• Manufacturer: Yunan County Heat Exchanger
Spare Parts List :
- Heat transfer plates (stainless steel or titanium)
- Sealing gaskets (NBR, EPDM, Viton, etc.)
- Frame components (pressing plates, guide rods)
- Clamping bolts and studs
Technical Specifications :
| Attribute | Value |
|---|---|
| Plate Dimensions | 612 × 266 × 0.5 mm |
| Plate Spacing | 3.5 mm |
| Heat Transfer Area (per plate) | 0.109 m² |
| Channel Cross Section | 0.000758 m² |
| Max Flow Capacity | 3–35 m³/h |
| Flange Diameter | DN40 mm |
| Angle Hole Diameter | 50 mm |
| Working Temperature | ≤180°C |
| Working Pressure | 0.6 MPa / 1.0 MPa |
| Number of Plates | 4 |
| Estimated Weight | ~122 kg |
