Deskripsi

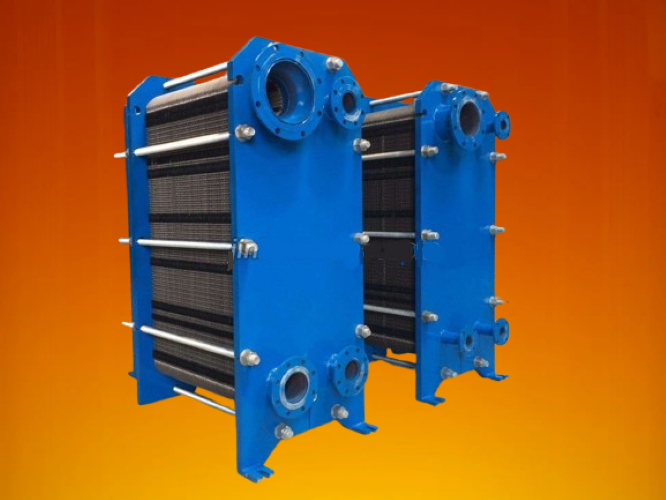

Plate Heat Exchanger
• Type: Plate Heat Exchanger for lubricating oil

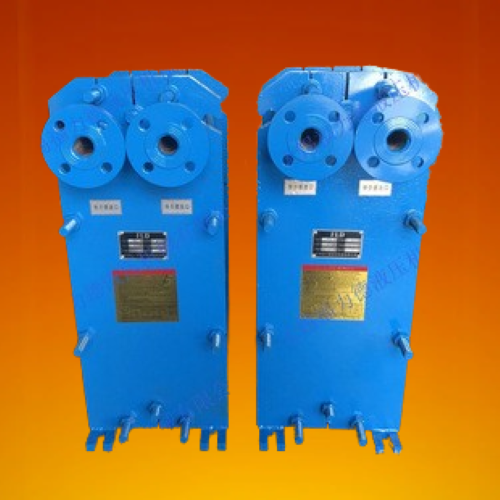

• Model: BR0.2-24
• Serie : BR Series
• Manufacturer: Yunan County Heat Exchanger
Spare Parts List :
• Stainless steel heat transfer plates
• Sealing gaskets (NBR, EPDM, Viton, etc.)
• Frame components (pressing plates, guide rods)
• Clamping bolts and studs
• End covers and support rods
Technical Specifications :
| Attribute | Value |
|---|---|
| Plate Dimensions | 856 × 326 × 0.5 mm |
| Plate Spacing | 4.1 mm |
| Heat Transfer Area (per plate) | 0.208 m² |
| Channel Cross Section | 0.00103 m² |
| Max Flow Capacity | 10–60 m³/h |
| Flange Diameter | DN65 mm |
| Angle Hole Diameter | 67 mm |
| Working Temperature | ≤180°C |
| Working Pressure | 0.6 MPa / 1.0 MPa |
| Number of Plates | 24 |
| Estimated Weight | ~340–378 kg |
