Deskripsi

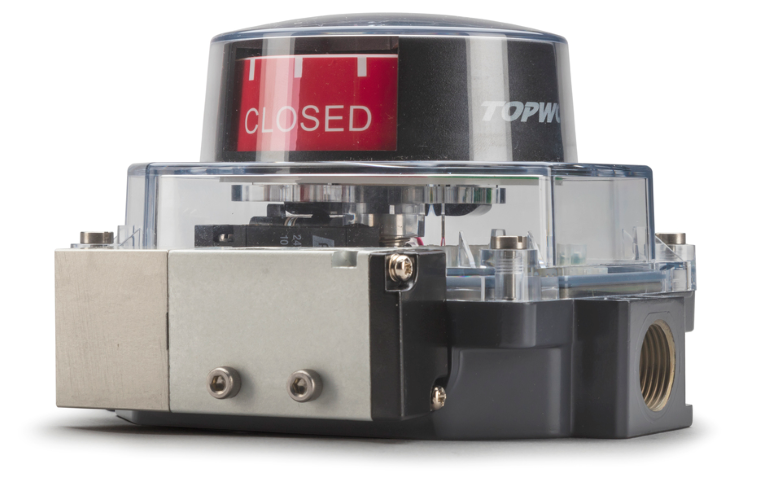

Valve Controller

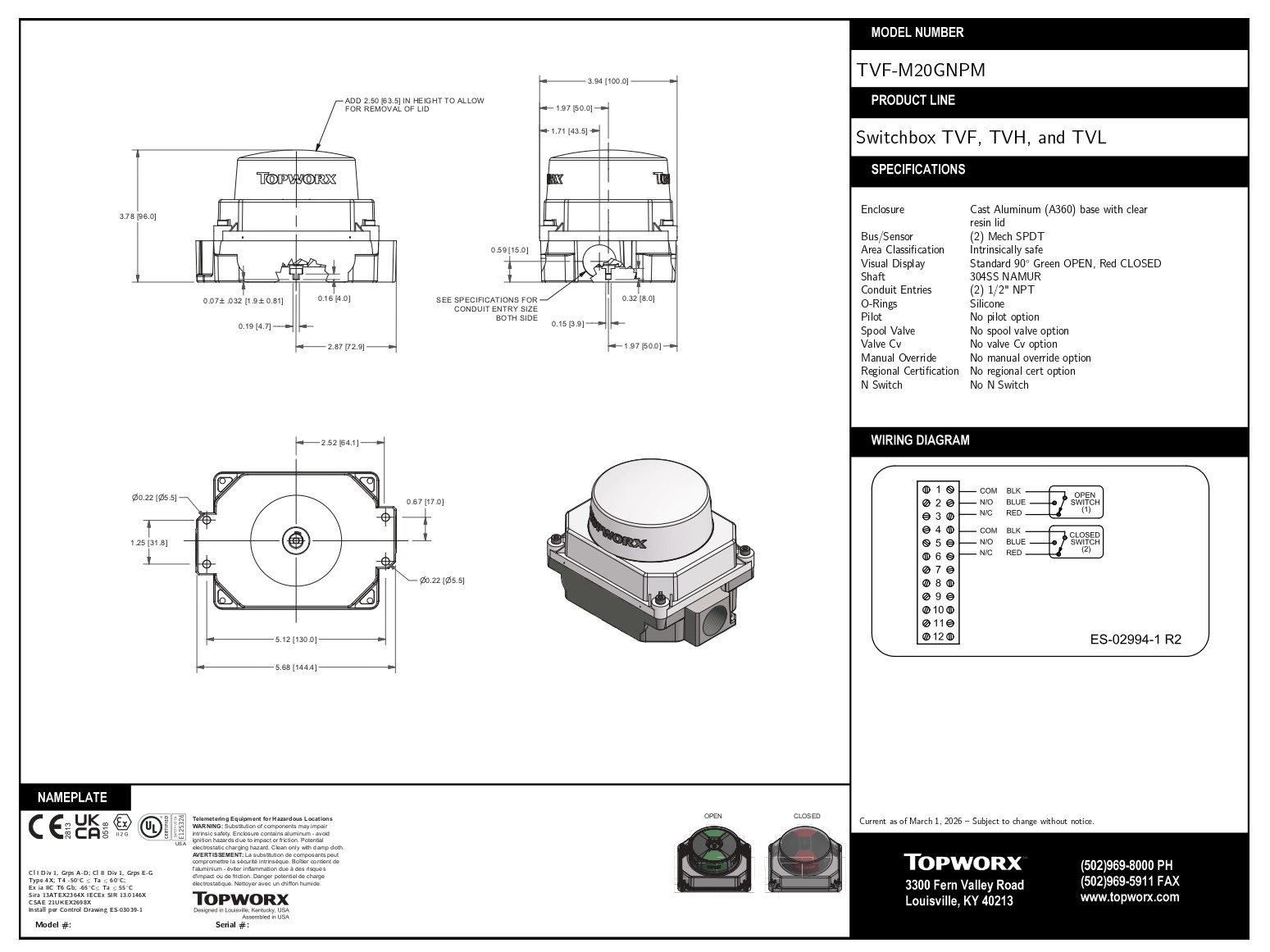

Model: TVF-M20GNPM
- Series : TV-Series
- Enclosure : Cast Aluminum (A360) base with clear resin lid
- Bus/Sensor : (2) Mech SPDT
- Area Classification : Intrinsically safe
- Visual Display : Standard 90◦ Green OPEN, Red CLOSED
- Shaft : 304SS NAMUR
- Conduit Entries : (2) 1/2″ NPT
- O-Rings : Silicone
- Pilot : No pilot option
- Spool Valve : No spool valve option
- Valve Cv : No valve Cv option
- Manual Override : No manual override option
- Regional Certification : No regional cert option
- N Switch : No N Switch
- Brand : TopWorx – EMERSON
The TopWorx™ TVF is ideal for non-incendive applications.
Our TX-Series switchboxes deliver outstanding value by providing full functionality in compact, direct-mount enclosures. Available with a variety of position sensors, integral solenoid valves, and bus networks, the TX-Series is suitable for use in all hazardous areas and carry IECEx, ATEX, and UL certifications.
The GO Switch offering in the TX- Series line offers the same reliability as existing GO Switches with improved features and benefits. The 36 GO Switch will offer the option of 2 or 4 switch configurations for the TX and TV Enclosures. Integrated solenoid valves are optional in the 2-switch configuration for even more control.
Features :
- Intrinsically Safe and suitable for all environments
- Variety of Bus Networks and Sensor Options
- Impact resistant highly visable display
- Color coded twist-set cams provide the easiest adjustment
- Reliability in environment extermes
