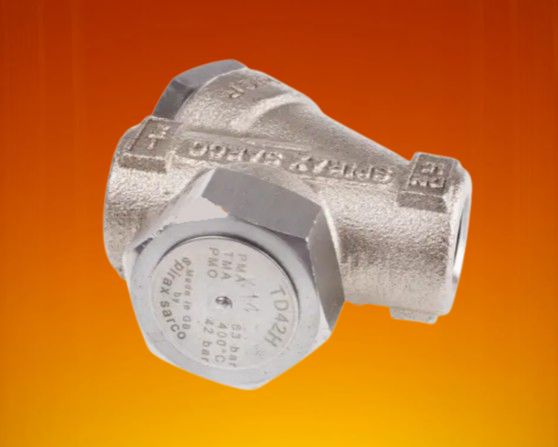

Thermodynamic Steam Trap
- Part No.: 1534097
- Model : TD42H
-
Series : TD Series Stainless Steel
- Trap Type : Thermostatic
- Connection Standard A : BSP
- Connection Size A : 12.7 mm
- Orientation : Horizontal
- Connection Type A : Screwed BSP or NPT or API
- Connection Gender A : Female
- Maximum Operating Pressure : 42 bar
- Connection Gender B : Female
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : 400°C
- Body Material : Stainless Steel
- Gasket Material : Graphite
- Standards/Approvals : No
-
Brand : SPIRAX SARCO
Thermodynamic Steam Traps. TD42L and TD42H
TD42L designed for relatively small condensate loads and ideal for mains drainage applications. TD42H is ideal for process type loads
Screwed BSP with in-built strainer
Compact and lightweight, reducing installation costs
Positive discharge with clean tight shut-off. No back-up of condensate ensures maximum plant efficiency
Robust construction to guarantee long life against superheat, water-hammer, freezing and vibration
Can be installed in both horizontal and vertical positions reducing installation problems
Note :
TD42L version
365-6296 , 365-6280
TD42H version
365-6325 , 365-6319
365-6296 , 365-6280
TD42H version
365-6325 , 365-6319
