Deskripsi

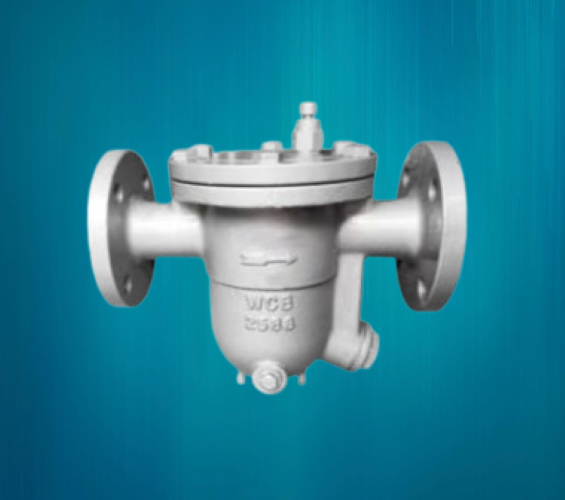

Automatic Steam Trap
- Type: Mechanical Free-Float Steam Trap
- Model: CS41H-40
- Nominal Diameter: DN25
- Pressure Rating: PN40 (40 bar)
- Connection: Flanged
- Application: Steam pipelines, condensate removal, automatic air venting
- Brand : Harbin Electric Valve
Material Composition :
- Body: Cast Iron or WCB (carbon steel), depending on variant
- Float: Stainless steel hollow float (finely ground)
- Seat & Valve Internals: Stainless steel or alloy steel
- Gasket & Seals: High-temperature resistant alloy or graphite-based
Dimensional Drawing :
- Length (L): ~215 mm
- Height (H1/H2): ~105 mm
- Width (W): ~140 mm
| Specifications | |
| brand | Harbin Electric Valve HD CNHD |
| Material | cast iron |
| Connection method | flange |
| Connection size | DN25 |
| category | steam trap |
| Working pressure (KG) | 40 |
| Seal material | alloy steel |
| Nominal diameter (DN) | DN25 |
