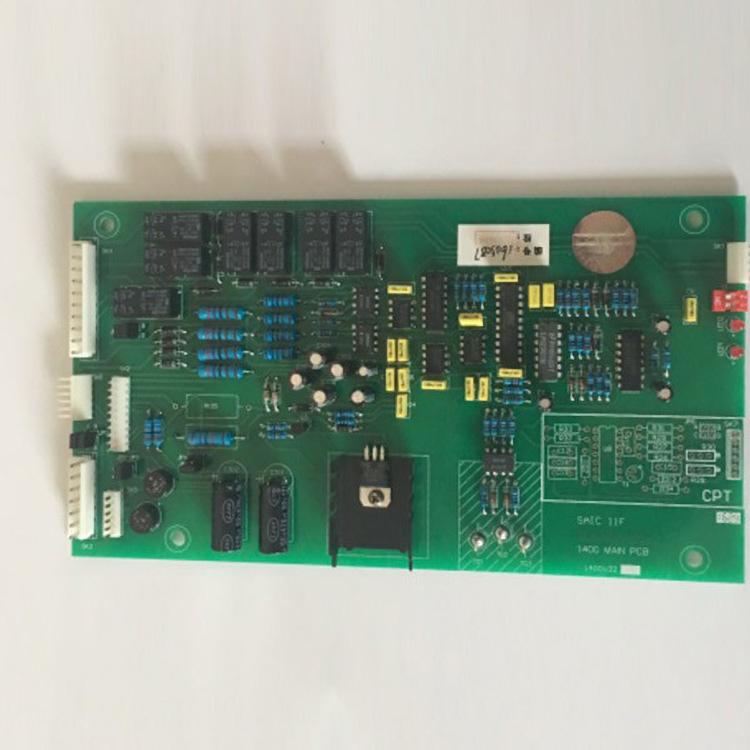

SHANGYI | Q/YXBM 470 AIMI Actuator-Power Board Transformer-Main Board

AI and MI series intelligent electric actuators are a new generation of intelligent, digital and multifunctional electric actuators developed by our company based on the introduction of A and M series products from the British ROTORK company and using ultra-large-scale integrated circuits.

Product implementation standard: Q/YXBM 470-2006 “AI, MI intelligent electric actuators and flameproof intelligent electric actuators”.

Working principle of AI and MI intelligent electric actuators:

AI and MI series intelligent electric actuators are driven by three-phase asynchronous motors, which reduce speed through worm gears and drive the hollow output shaft to output

The reducer has a manual/electric switching mechanism. When the switching handle is in the manual position, the handwheel drives the hollow output shaft to rotate through the clutch; when it is operated electrically, the switching mechanism will automatically fall back to the electric position, the clutch and the worm gear will engage, and the three-phase motor will drive the hollow output shaft to rotate.

The rotation of the output shaft of the actuator is transmitted to the Hall effect pulse sensor through the speed increasing mechanism, and the axial force generated by the motor worm

The displacement is transmitted to the mechanical torque control mechanism (switch mechanism) to achieve valve position and torque control.

The intelligent controller of the electric actuator accepts standard analog current control signals or switch control signals or bus signals to

The output shaft of the structure is positioned at a position corresponding to the input signal; it can also be positioned at a position preset by the control system according to interlocking control, two-line control or emergency ESD event signal.

Main features of AI and MI intelligent electric actuators:

Classic mechanical torque protection device, stable and reliable operation

Hall effect pulse sensor has high accuracy and strong adaptability

The use of ultra-large-scale integrated chips gives the actuator powerful functions

Provide Chinese and English menus. Can be set and debugged by remote control, easy to operate

Non-intrusive design – double seal structure and shell without through-shaft design.

There is no need to open the control box cover during debugging, and the protection level reaches IP68

Working system:

1) AI (S2 reversible, intermittent operation, 25% connection duration, connection times ≤ 630 times/hour)

2) MI (S4 reversible, intermittent operation, 25% connection duration, 630 times/hour≤connection times≤1200 times/hour)

Input signal:

1) Analog signal: 4~20mA.DC Input impedance 250Ω

2) Pulse switch signal ≥ 150ms

3) Profibus-DP, HART (optional)

Output signal:

1) 4-20mA.DC Load impedance ≤750Ω

2) Profibus-DP, HART (optional)

Mechanical output:

1) AI multi-turn ≥6 turns

2) MI multi-turn type ≥6 turns

3) AI angular travel 0～90°

4) MI angular travel 0～90°

5) MIL linear travel ≤100mm

34～8000Nm

17～544Nm

300～60000Nm

116～6884Nm

7.94～41.4kN

Basic error: 1) AI, MI multi-turn electric actuator ≤±1%

2) AI, MI angular travel electric actuator ≤±1%

3) MIL linear electric actuator (stroke ≥ 25mm) ≤ ±1%

Dead Zone:

0.1～9.9% adjustable (default setting is 0.5%)

Technical Parameters

Midway limit:

1) The open limit setting range is 60% to 100%

2) The setting range of the closing limit is 0% to 40%

Mechanical Clearance:

1) AI, MI multi-turn electric actuator ≤1°

2) AI, MI angular travel electric actuator ≤ 1°

3) MIL linear electric actuator (stroke ≥ 25mm) ≤ 1mm

Prohibit running time: 0~99 seconds adjustable

Power supply: three-phase three-wire, 380V.AC±10%, 50Hz±1%

Explosion-proof grade: 1) Remote controller – intrinsically safe type ExibⅡBT4

(Flameproof type 2) Actuator – Flameproof type ExdⅡBT4

Output contact capacity: 250V.AC, 5A; 30V.DC, 5A (bus products are 220V.AC, 0.5A; 30V.DC, 1A)

Environmental conditions:

1) Ambient temperature: -25℃～+70℃ (flameproof type: -20℃～+60℃)

2) Relative humidity: 5% to 95%

3) Atmospheric pressure: 86~106kPa

4) Air medium: There is no corrosive gas in the surrounding air

Anti-interference index:

1) External magnetic field ≤400A/m, 50Hz

2) Common mode interference 250V, 50Hz

3) Cross-mode interference: AC signal with an effective value of 1V, a frequency of 50Hz, and a phase of 0 to 360°

4) Electrostatic discharge: 4kV

5) Electrical fast transient pulse group: power supply end 1000V; signal input end: 500V

6) Radio frequency interference: frequency 80～1000MHz, test field strength 3V/m, distance 1m

7) Surge interference: 1kV
