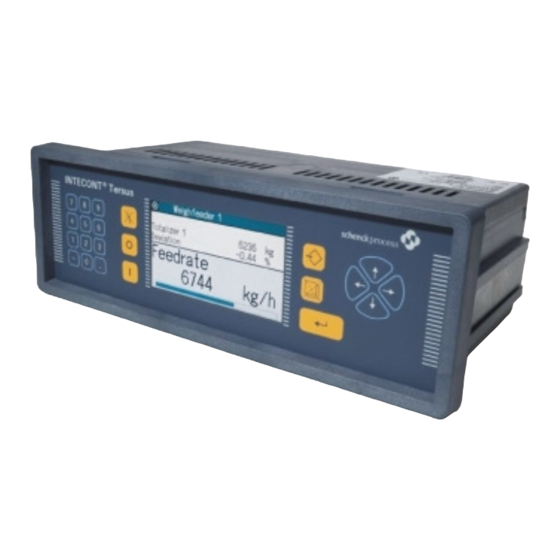

INTECONT® Tersus series Electronic Belt Scale
Model : BV-H2464GB
Series : INTECONT® Tersus Series
MFR : Schenck Process
INTECONT® Tersus series — a high-precision belt weighing system used in bulk material handling.
Components & Spare Parts List :
| Component | Function |
|---|---|
| Weighing Frame | Supports load cells and belt structure |
| Load Cells (2–4 units) | Measures belt load (strain gauge type) |
| Speed Sensor / Tachometer | Measures belt speed via pulse output |
| INTECONT Tersus Controller | Processes weight and speed signals |
| Junction Box | Connects load cells and sensors to controller |
| Display Panel | Operator interface with TFT screen |
| Calibration Weights | Used for span and zero calibration |
| Mounting Hardware | Bolts, brackets, and vibration isolators |
| Communication Modules | PROFIBUS, Modbus, Ethernet/IP (optional) |
Specification :
| Parameter | Value |
|---|---|
| Model | BV-H2464GB |
| Accuracy | ±0.25% (legal-for-trade optional) |
| Belt Width Compatibility | 400–1400 mm |
| Speed Range | 0.1–3.5 m/s |
| Load Cell Capacity | 100–500 kg (per cell) |
| Controller Voltage | 24 VDC / 90–264 VAC (optional) |
| Operating Temp | −25 °C to +60 °C |
| Protection Class | IP65 (controller), IP68 (load cells) |
| Estimated System Weight | ~120–180 kg (depending on frame size) |
