Deskripsi

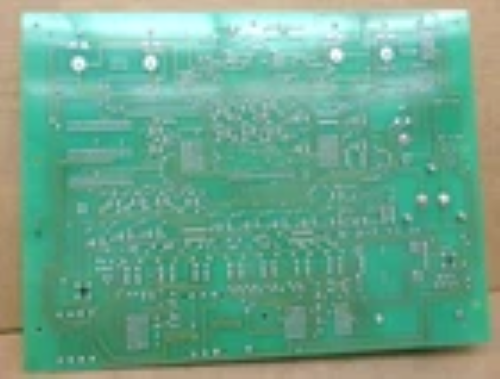

Power Supply Board
Brand : STOCK Equipment
Technical Specifications :
| Attribute | Description |
|---|---|
| Model | D21231-1 |
| Type | Industrial Power Supply Board |
| Application | 9224-type coal feeder (also compatible with CS2024, EG24, EG36 feeders) |
| Input Voltage | 100–240V AC |
| Output Voltage | 24V DC |
| Output Current | Up to 10A |
| Efficiency | ≥92% |
| Protection Features | Overvoltage, undervoltage, overcurrent, short-circuit |
| Operating Temperature | –20°C to +50°C |
| Certifications | CE, UL, FCC |
| Dimensions | Approx. 150 × 100 × 30 mm |
| Mounting | Panel or DIN rail (varies by enclosure) |
