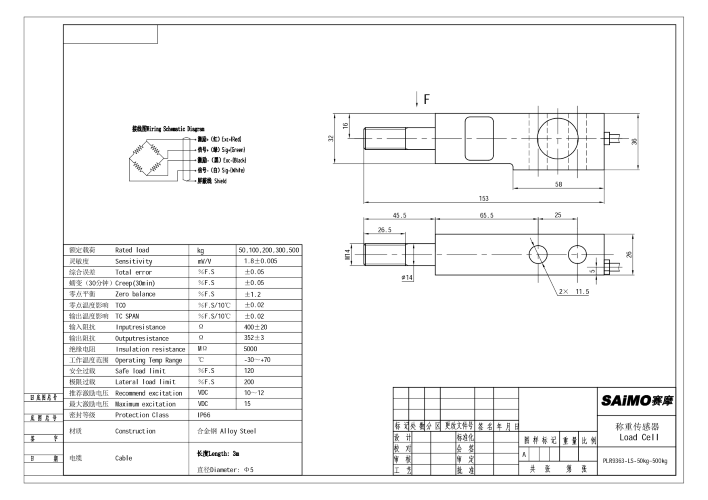

Load Cell PLR9363-LS / PLR9363-CS / PLR9363-AS
Model : PLR9363-LS-100
Use and characteristics :
One end fixed, one end loaded, sealed well;;
Automatically adjusted by the force of the heart, simple to install, easy to use, good interchangeability;
It can be used for the production of ultra-thin electronic truck scale, monorail crane scale, hopper scales, etc. .
Range :
50,100,200,300,500 kg; 1,2,3,5,10,15,20 t
cantilever weighing sensor technology parameters
| Rated load | 0.05 to 20t |
| Comprehensive accuracy | 0.02 0.03 (linear + lag + repeatability) |
| Sensitivity | 2.0 mV / V |
| Creep | ± 0.02% F · S / 30min |
| Zero output | ± 1% F · S |
| Zero temperature effect | ± 0.02% F · S / 10 ℃ |
| Output temperature | ± 0.02% F · S / 10 ℃ |
| Operating temperature | -20 ° C to + 65 ° C |
| Input resistance | 380 ± 10 Ω |
| Output impedance | 350 ± 3 Ω |
| Insulation resistance | > 5000 MΩ |
| Safety overload | 150% F · S |
| For the bridge voltage | Recommended 10VDC |
| Material | Alloy steel or stainless steel |
| Wiring | Input (+): Red line input (-): Black line |
| Output (+): Green line output (-): White line | |
| Signal amplifier wiring | Power: Red Common: Green Output: Yellow |
