Vibration Velocity Sensor
- Model: SZ-6
- Output signal: Analog type
- Production process: thick film
- Material: Stainless steel
- Physical properties of materials: magnetic materials
- Material crystal structure: single crystal
- Degree: ±5%
- Sensitivity: 20mV/mm/s
- Repeatability: 2%
- Name: Vibration velocity sensor
- Brand: Jiangyin Zhonghe
Overview:
SZ-6-6A-6G vibration velocity sensor uses the principle of magnetoelectric induction to convert vibration signals into voltage signals, and the voltage value is proportional to the vibration velocity value. It can be used to measure the vibration of the bearing seat, housing or structure (relative to the vibration of the inertial space). It is directly installed outside the machine and is extremely convenient to use and maintain.
SZ-6-6A-6G vibration velocity sensor technical parameters:
Sensitivity: 20mV/mm/sec±5%, 50mV/mm/sec±5%;
Amplitude limit: ≤2000μm (peak-to-peak);
Frequency response: (10～1000) Hz;
Acceleration: 10g;
Measuring direction: vertical or horizontal; (universal)
Installation method: Fix the sensor with a M10×1 screw in the center hole at the bottom of the sensor;
Output wiring method: SZ-6 aviation connector
Environmental conditions: dust and moisture proof
Operating temperature: (-30～120)℃;
Relative humidity: ≤95% (non-condensing);
Dimensions: SZ-6: Φ35×78mm;

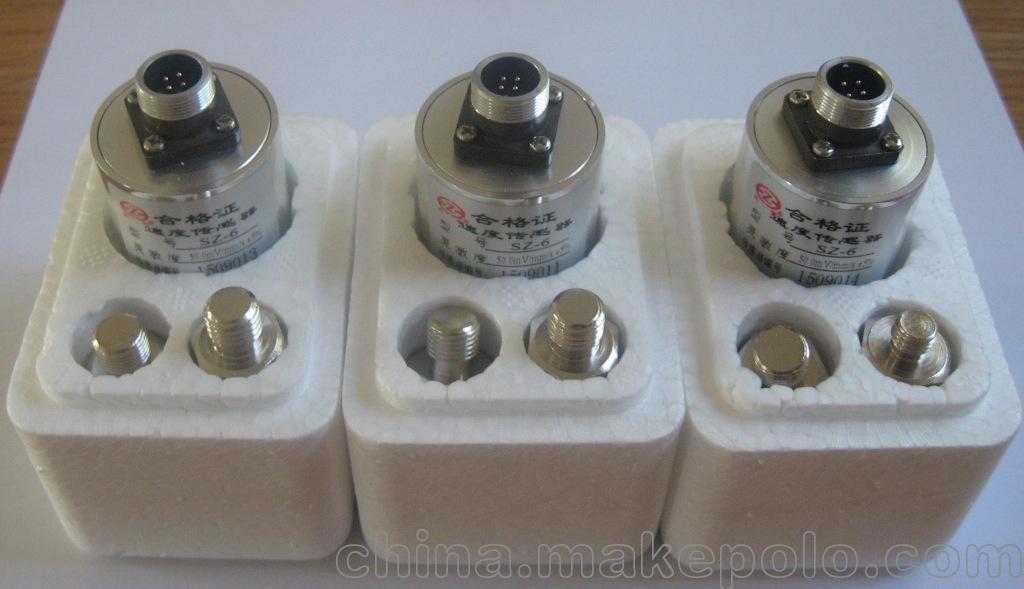

SZ-6-6A-6G vibration velocity sensor
Ordering code: SZ-6; SZ-6A; SZ-6G.
