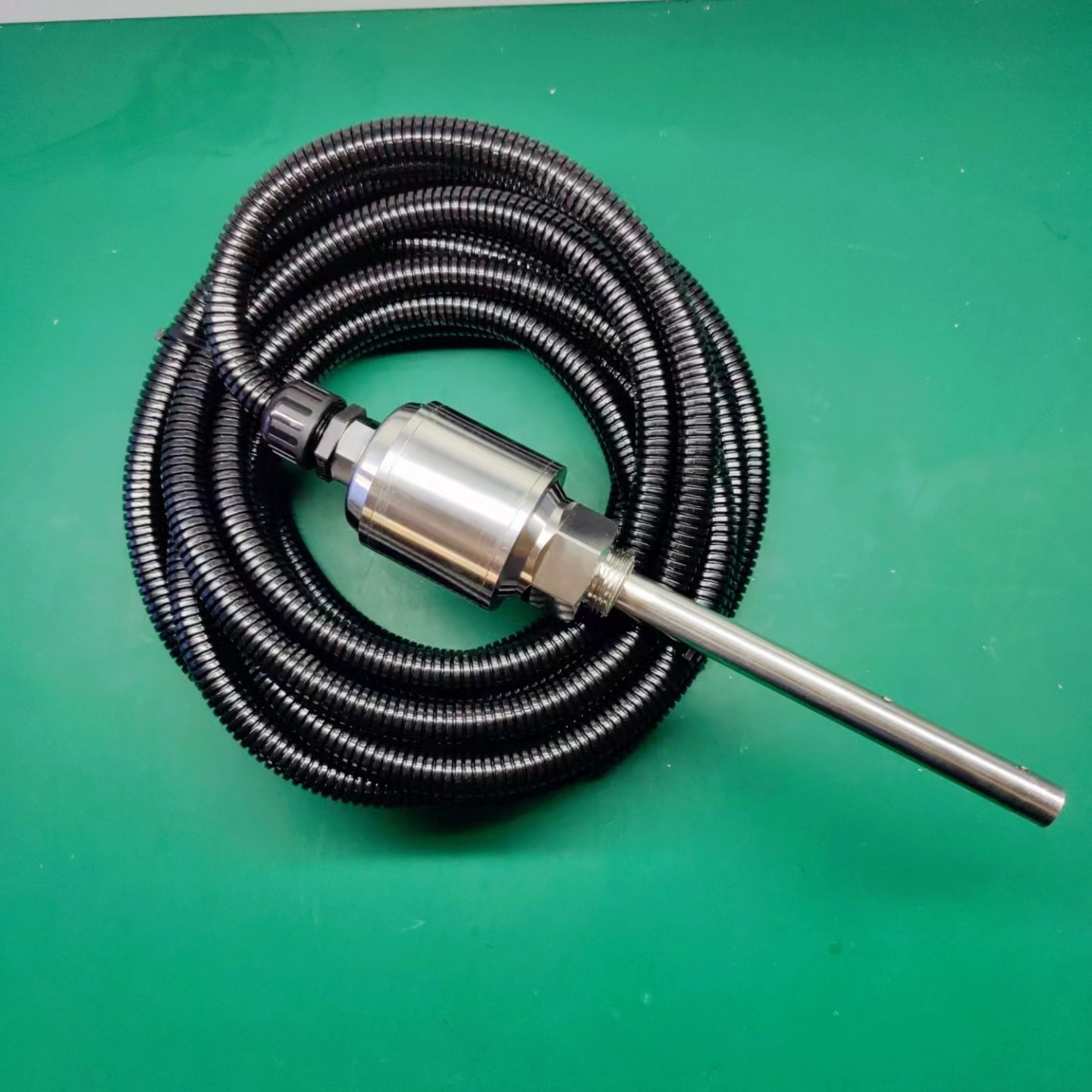

Integrated Three-Parameter Combination Probe
- Model: KR-939SB3
- Name: Three-parameter combination
- Output signal: Analog type
- Production process: thick film
- Material: Stainless steel
- Physical properties of materials: magnetic materials
- Material crystal structure: single crystal
- Accuracy: ±5%
- Sensitivity: 20mV/mm/s
- Repeatability: 2%
- Brand: Jiangyin Zhonghe
Overview:
KR-939S3 integrated three-parameter combination probe KR939SB3 is a non-bus structured general-purpose combination probe used by our company in the cooling tower fan safety monitoring system. It can be connected and used with a variety of general-purpose secondary instruments or computer data acquisition and control systems (DCS , PLC , etc. ) .
KR-939S3 integrated three-parameter combination probe KR939SB3 is a combination probe used for monitoring the safe operation of fan reducer. It integrates the sensing, conversion and transmission circuits for measuring oil temperature, oil level and vibration signals, and directly outputs 4 to 20mA standard current signals corresponding to these safety parameters. It can be connected to various general-purpose secondary instruments or computer digital acquisition monitoring systems.
KR-939S3 integrated three-parameter combination probe KR939SB3 technical parameters:
Temperature measurement:
Measuring range: 0 ~ 100 ℃, error: ± 1 ℃
Oil level measurement:
Measuring range: -10～40 mm, error: <= ± 1 mm
Vibration Measurement:
Measuring range: 0 ~ 20 mm /s , frequency response: 10 ~ 1000HZ , maximum error: <= ± 1 mm /s
Signal output:
Active current output: DC4 ~ 20mA , requires passive resistive load. Maximum load resistance: < 300 ohms
Power supply characteristics:
Working voltage: DC/24V ± 4V , rated current: DC/80mA, built-in voltage polarity reverse protection
Environmental characteristics:
Temperature range: -20 ~ 80 ℃ , ambient humidity range: 0 ~ 100 %
