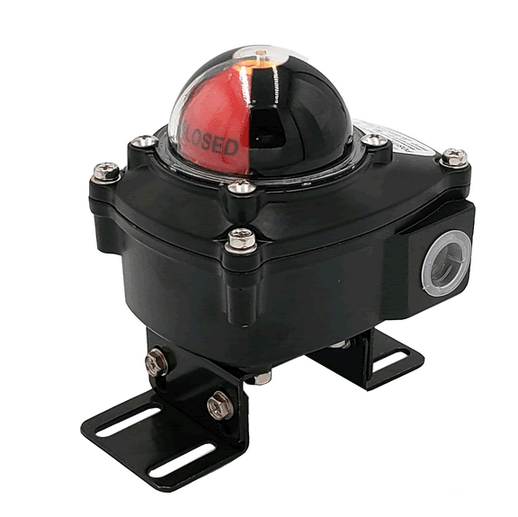

Position Monitoring Switch
ITS position monitoring switch is used for the valve and actuators which rotates 90degree quarter turn. The first function of ITS is to provide the visual indication of the current position of the valve and actuator. Dome indicator unit shows current position by color indication.
Secondly ITS provide electrical signal at the fully open or closed position by activating mechanical switches (SPDT, SPST), Proximity sensors and other magnetic sensors which independently makes function.
Technical Specifications :
| Attribute | Description |
|---|---|
| Model | ITS-102 |
| OEM | HIYAMECH |
| Type | Rotary Position Monitoring Switch / Limit Switch Box |
| Ingress Protection | IP67 (Weatherproof, O-ring sealed) |
| Enclosure Coating | Epoxy-Polyester (inside and outside) |
| Ambient Temperature | -20°C to +80°C (optional: -40°C to +100°C) |
| Cable Entries | 2 × PT1/2″ (optional: NPT1/2″, PF1/2″, M20x1.5, PG13.5) |
| Terminal Block | 8 terminals (6 for switches, 2 for solenoid valve) |
| Switch Type | 2-SPDT mechanical switch (Form C) standard; optional proximity sensors (P&F, Autonics) |
| Position Indicator | Dome type, 0°–90° visual feedback |
| Mounting Bracket | Stainless steel, NAMUR standard (VDI/VDE3845) |
| Weight | Approx. 2 kg |
| Applications | Pneumatic actuators, quarter-turn valves, industrial automation |
