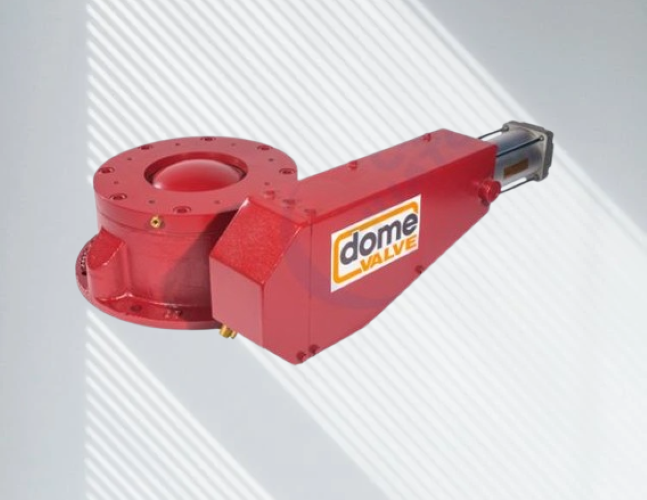

High Pressure Dome Valve
Model : DN300 CH2156D-00
Product Name : Dome Valve
Use : Pneumatic Conveying, Dedicated for Power Plants
Brand : CLYDE VALVE
Introduction to dome valve:
High pressure dome valve DN300 CH2156D-00 is specially used in pneumatic conveying system, and can also be provided to customers as an independent product. Its application fields in industry include power, food, medicine, chemical, plastic, mining, steel and other industries. Commonly used conveying materials are: abrasives, particles, powders, ash, chemicals, ores, coal, fragile products, etc.
High-pressure dome valve DN300 CH2156D-00 main configuration: linear cylinder￠160X250 DN300 P22458E-00, valve body DN300 CP26995A-00, spring cylindrical pin DN300 GB879-86, dome DN300 CP2401A-00, drive shaft DN300 CP2479C-00 , combined bearing DN300 P8013D-00 , spacer ring DN300 CP3721C-00, coupling DN300 CP17199B-00, top plate DN300 CP29671D-00, collar DN300 CP29621D-00, support ring DN300 CP29620D-00 , plug-in seal DN300 P1826C-01. , O -ring DN300 M5208 plug-in seal RED DN300 P17461C-01 , cylinder repair kit DN300 A2214, seal assembly DN300 M3233, quick exhaust valve DN300 1/2” PD, TD pump A1067 , etc.
Dome valve principle:
①. The exhaust dome valve can cut off the flowing material flow or static material column entering the pressure tank, and then close to achieve sealing. This ensures that the filling rate in the tank is 100% , and there is no need to rely on the level meter of the sending tank, so the control principle is simple and reliable.
② When handling abrasive materials, the expandable pressure seal ring embedded in the dome valve seat ensures the working pressure difference before and after the valve. The elastic expandable seal ring can be sunken into the material particles, avoiding the sliding of the material particles due to the pressure difference and the wear of the valve seat and seal ring.
③ When slurry, bulk powder, particles, lumps or dust filled with gas will wear the seal ring, resulting in ineffective sealing. The expandable seal ring provides continuous wear compensation. The pressure difference will accelerate the wear of the traditional hard seal valve, and the expandable seal ring provides continuous wear compensation.
④. Thermal expansion will hinder the continuous operation of the dome valve; the expandable sealing ring can provide wear compensation in the temperature range of -40 ℃ to 320 ℃; the specially constructed dome valve can perform work above this temperature range.
⑤ The displacement of the rotating dome valve core in the valve body enables the dense material column to rotate, so that the dome valve completely filled with material can pass through the filled material to close and seal.
Characteristics of dome valve:
① Unhindered material flow throughout the chamber
②. Simple and reliable design
③. Flexible opening and closing, can shut down dynamic and static material columns
④. Complete specifications and sizes: DN50-DN300
⑤. A strong pressure seal can be formed when closed
⑥, can withstand temperatures from -20℃ to 480℃
⑦. Long service life and low maintenance
⑧. The material conveying system of the power plant operates normally, and the service life of the plug-in seal ring is more than one year
