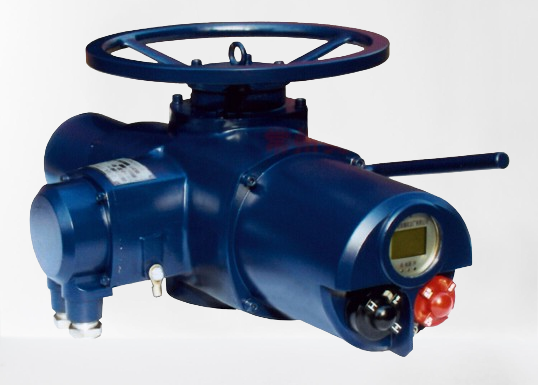

Changzhou Power Station | SND-ZTD350-18S-TC Intelligent Multi-Turn Electric Actuator

The intelligent multi-turn SND-Z series electric actuator is suitable for the control of stop valves, gate valves, throttle valves, sluice gates, etc. The switch type model is SND-Z, and the regulating type model is SND-ZTD.

Switch type:
SND-Z5 SND-Z10 SND-Z15 SND-Z20 SND-Z30 SND
-Z40 SND-Z45 SND-Z60 SND-Z90 SND-Z120 SND-Z180 SND-Z250
SND-Z350 SND-Z500 SND-Z800 SND-Z1000

Regulating type:
SND-ZTD5 SND-ZTD8 SND-ZTD10 SND-ZTD15
SND-ZTD20 SND-ZTD30 SND-ZTD40 SND-ZTD45
SND-ZTD60 SND-ZTD90

Product Features, Working Environment and Technical Parameters :

Non-intrusive design, simple and intuitive design 1. Power supply: 380 ±10%V 50 ±10%Hz Optional electric
stroke, torque measurement is accurate and reliable Source: 380～660V 50, 60Hz (please specify when ordering).
Chinese and English language selection for the operation interface 2.
Lock function of working environment control status 2.1 Ambient temperature: -20～60 ℃ Optional ambient temperature: -40～70℃
With dual speed (variable speed slow closing) function 2.2 Relative humidity: ≤90% (25℃)
Comprehensive data recording 2.3 Protection level: IP68 (7 meters underwater for 72 hours).
Self-diagnosis adaptive function 2.4 Explosion-proof mark: ExdΙ, ExdibⅡBT4 and ExdibⅡCT4.
Fault diagnosis function during operation. There is a dangerous
network transmission function in Zone 1 or Zone 2 with explosive and flammable gas of Class IIB to IIC. The temperature group is T1 to T4.
Motor overheat protection 3. Working mode: S5 (intermittent working mode, with electric brake),
instantaneous reversal protection. The minimum load duration is 25%, and the maximum number of operations is 1200 times/hour.
It can achieve the high-speed closing requirement of the valve. 4. Input: 4-20mA DC (regulating type) Output: 4-20mA DC
Protection level IP68 (72 hours at 7 meters underwater) 5. Dead zone: 0.5-9% adjustable
