Rodless Pneumatic Cylinder

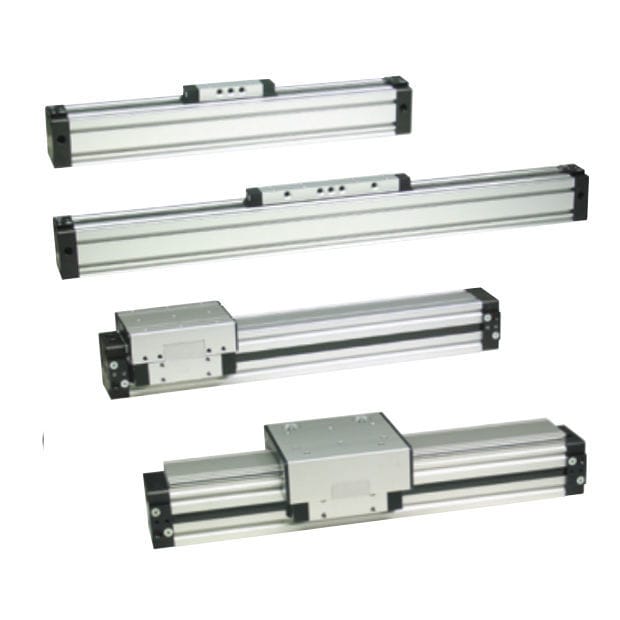

The AIRTEC ZX‑25‑SG‑2350‑01 is a rodless pneumatic cylinder from the ZX series by AIRTEC Pneumatic GmbH (Germany). It is a double‑acting, guided, rodless cylinder with a 25 mm bore and a 2350 mm stroke length, designed for long‑stroke linear motion in compact spaces.
- Type: Rodless Pneumatic Cylinder (guided)
- Series: ZX
- Model: ZX‑25‑SG‑2350‑01
- Part Number: ZX‑25‑SG‑2350‑01
- Configuration: Double‑acting, with slide carriage and integrated guide
- Brand: AIRTEC
- Manufacturer: AIRTEC Pneumatic GmbH
Product Overview:
The ZX‑25‑SG‑2350‑01 is a rodless pneumatic cylinder designed for long stroke applications where a conventional piston rod cylinder would be too long. The SG version includes a guided carriage, ensuring precise linear motion and resistance to side loads. With a 2350 mm stroke, it is suitable for handling, positioning, and transport tasks in automation systems.
Specifications:
| Feature | Specification |
|---|---|
| Bore Diameter | 25 mm |
| Stroke Length | 2350 mm |
| Type | Double‑acting rodless cylinder with guide |
| Operating Pressure | 1 … 8 bar |
| Medium | Filtered compressed air, lubricated or non‑lubricated |
| Temperature Range | −10 °C … +70 °C |
| Max Speed | up to 1 m/s |
| Cushioning | Adjustable pneumatic cushioning |
| Tube Material | Anodized aluminum |
| Seals | NBR, PU |
| Options | ATEX versions available |
Dimensions & Weight:
- Cylinder Profile Width: ~40 mm
- Overall Length: Stroke + ~300 mm (≈ 2650 mm total for 2350 mm stroke)
- Carriage Width: ~60 mm
- Weight: ~8 – 10 kg (depending on stroke and guide option)
Applications:
- Material handling and transfer systems
- Packaging machinery
- Pick‑and‑place automation
- Assembly lines
- Long‑stroke positioning tasks
- Robotics and gantry systems
