Deskripsi

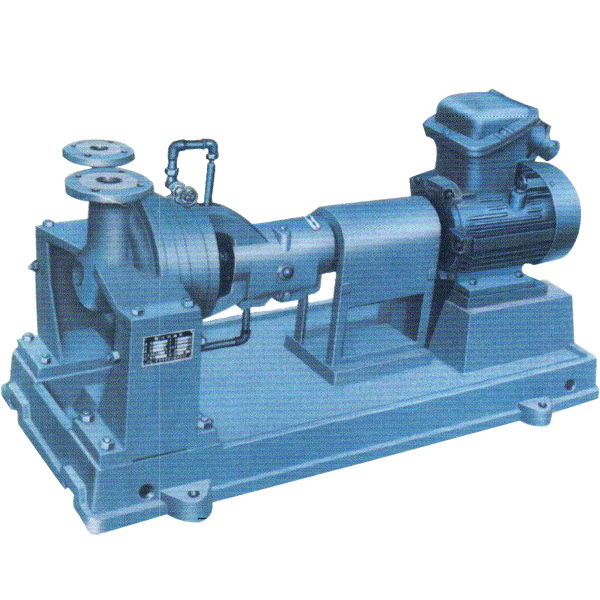

Centrifugal Oil Pump
Type : 80YL-120T
MFR : Zhejiang Pump General Works
Components & Spare Parts List :
| Component | Material / Function |
|---|---|
| Pump Casing | Cast steel or ductile iron |
| Impeller | Stainless steel or bronze, closed type |
| Shaft | High-strength alloy steel |
| Bearings | SKF/NSK deep groove ball bearings |
| Mechanical Seal | Carbon/ceramic or silicon carbide |
| Coupling | Flexible or rigid type for motor connection |
| Baseplate | Welded steel frame |
| Gaskets & O-rings | NBR or Viton |
Specification :
| Parameter | Value |
|---|---|
| Model | 80YL-120T |
| Type | Horizontal centrifugal oil pump |
| Flow Rate | ~120 m³/h |
| Head | ~80–100 m |
| Speed | 2900 rpm |
| Inlet/Outlet Diameter | DN80 / DN65 |
| Temperature Range | −20 °C to +250 °C |
| Pressure Rating | PN16–PN25 |
| Motor Power | ~22–30 kW |
| Estimated Weight | ~280–350 kg |
