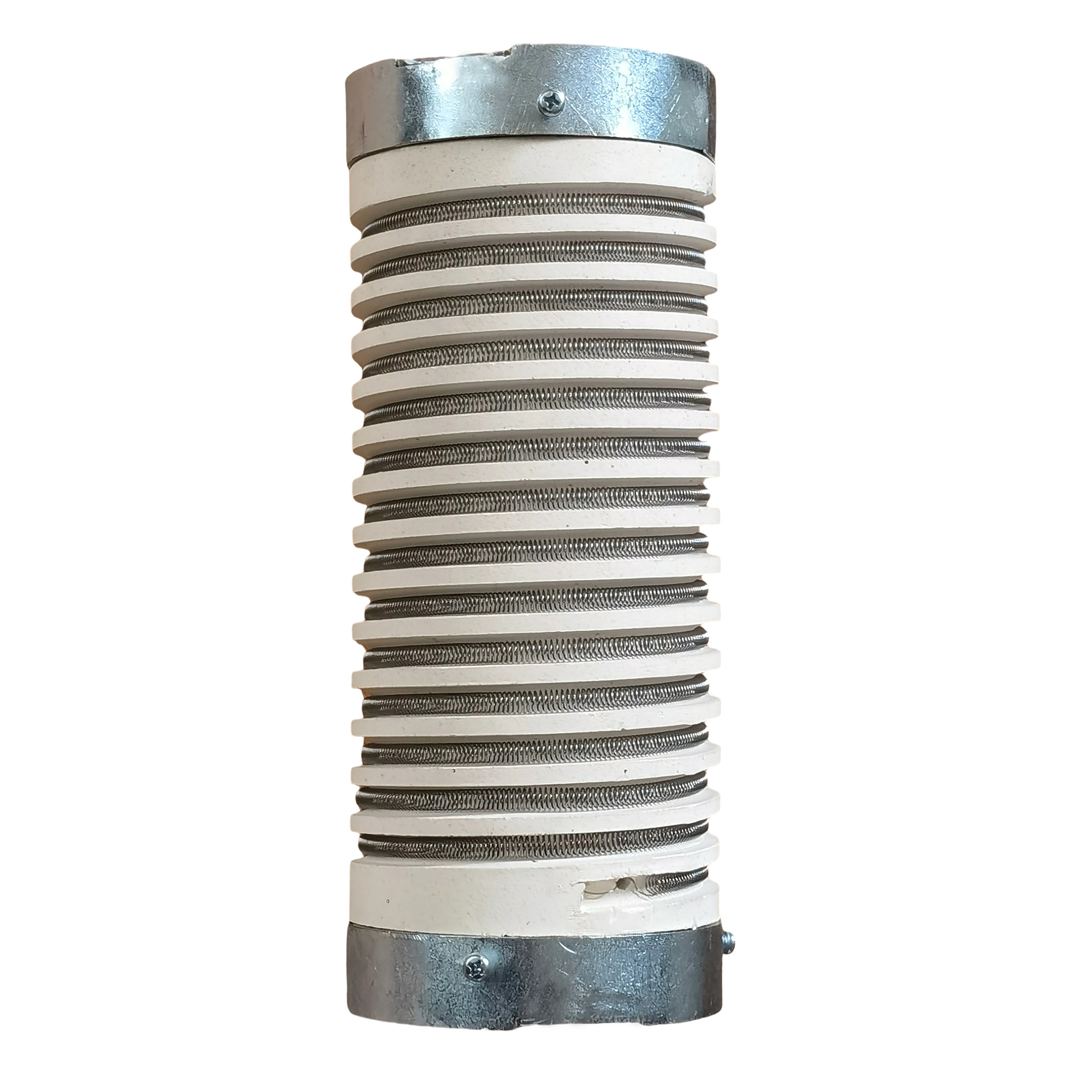

Damping resistor electrostatic precipitator high voltage
Model : ZG12ZG4
Size : Φ100*380L
Rated Power ( mW ) : 200-4000
Frequency character : Low Frequency
Resistor Materials : ceramics
Power characteristic : High Power
Resistor Type : Circuit Breaker
Application : Electrostatic precipitator
Number of terminals : 2
Tolerance : ±5%
Temperature range : -40°C ~ 100°C
Series : Electrostatic precipitator high voltage power supply series
Shape : Tube
Brand : Fujian Hongchang Environmental
The high-voltage damping resistors for the high-voltage silicon rectifier power supply of the electrostatic precipitator produced by Hongchang Environment are compatible with GGAJ02 electrostatic precipitator equipment and various specifications of high-voltage dust removal isolation switch control cabinets and high-voltage introductions from environmental protection manufacturers across the country.
Commonly used high-voltage silicon rectifier power supply supporting high-voltage damping resistor size specifications:
| Serial No. | Specifications and dimensions of matching porcelain bottles |
| Ⅰ Damping resistor | Corundum porcelain bottle Φ75mm×210mm(length)×M18 (M16, M14, M12) |
| Ⅱ Damping resistor | Corundum porcelain bottle Φ98mm×210mm(length)×M18 (M16, M14, M12) |
| Ⅲ Damping resistor | Corundum porcelain bottle Φ130mm×210mm(length)×M18 (M16, M14, M12) |
| Ⅳ Damping resistance | Corundum porcelain bottle Φ98mm×225mm(length)×M18 (M16, M14, M12) |
| Ⅴ Damping resistor | Corundum porcelain bottle Φ98mm×300mm(length)×M18 (M16, M14, M12) |
| Ⅵ Damping resistor | Corundum porcelain bottle Φ75mm×380mm(length)×M18 (M16, M14, M12) |
| Ⅶ Damping resistor | Corundum porcelain bottle Φ98mm×380mm(length)×M18 (M16, M14, M12) |
| Nickel-chromium resistance wire | Φ0.25mm～Φ0.65mm |
Specifications of high voltage damping resistors for commonly used high voltage silicon rectifier power supplies:
| Name | Parameters | Common dimensions (for reference only, subject to actual order) |
| Damping resistor | ZG11-100W/2KΩ | Φ40×Length 210 |
| Damping resistor | ZG12-250W/700Ω | Φ75×Length 230 |
| Damping resistor | ZG12-250W/800Ω | Φ75×Length 230 |
| Damping resistor | ZG12-250W/1KΩ | Φ100×Length 230 |
| Damping resistor | ZG12-350W/500Ω | Φ75×Length 230 |
| Damping resistor | ZG12-400W/800Ω | Φ100×Length 230 |
| Damping resistor | ZG12-500W/300Ω | Φ75×Length 230 |
| Damping resistor | ZG12-500W/800Ω | Φ100×Length 230 |
| Damping resistor | ZG12-500W/1KΩ | Φ100×Length 230 |
| Damping resistor | ZG12-500W/2KΩ | Φ100×Length 300 |
| Damping resistor | ZG12-600W/300Ω | Φ75×Length 230 |
| Damping resistor | ZG12-750W/600Ω | Φ100×Length 230 |
| Damping resistor | ZG12-800W/400Ω | Φ100×Length 230 |
| Damping resistor | ZG12-1000W/150Ω | Φ75×Length 230 |
| Damping resistor | ZG12-1000W/180Ω | Φ75×Length 230 |
| Damping resistor | ZG12-1000W/500Ω | Φ100×Length 230 |
| Damping resistor | ZG12-1000W/600Ω | Φ100×Length 230 |
| Damping resistor | ZG12-1100W/500Ω | Φ100×Length 230 |
| Damping resistor | ZG12-1200W/1KΩ | Φ100×Length 380 |
| Damping resistor | ZG12-1500W/150Ω | Φ75×Length 230 |
| Damping resistor | ZG12-1500W/250Ω | Φ100×Length 230 |
| Damping resistor | ZG12-1500W/500Ω | Φ100×Length 230 |
| Damping resistor | ZG12-1500W/600Ω | Φ100×Length 230 |
| Damping resistor | ZG12-1500W/700Ω | Φ75×Length 380 |
| Damping resistor | ZG12-1600W/250Ω | Φ100×Length 230 |
| Damping resistor | ZG12-1800W/250Ω | Φ100×Length 230 |
| Damping resistor | ZG12-2000W/180Ω | Φ100×Length 230 |
| Damping resistor | ZG12-2000W/280Ω | Φ100×Length 230 |
| Damping resistor | ZG12-2000W/300Ω | Φ100×Length 300 |
| Damping resistor | ZG12-2000W/350Ω | Φ100×Length 300 |
| Damping resistor | ZG12-2000W/400Ω | Φ100×Length 300 |
| Damping resistor | ZG12-2000W/450Ω | Φ100×Length 300 |
| Damping resistor | ZG12-2000W/500Ω | Φ100×Length 300 |
| Damping resistor | ZG12-2500W/500Ω | Φ100×Length 380 |
| Damping resistor | ZG12-2800W/180Ω | Φ100×Length 230 |
| Damping resistor | ZG12-2800W/400Ω | Φ100×Length 300 |
| Damping resistor | ZG12-2800W/700Ω | Φ100×Length 380 |
| Damping resistor | ZG12-3000W/450Ω | Φ100×Length 300 |
| Damping resistor | ZG12-3000W/500Ω | Φ100×Length 380 |
| Damping resistor | ZG12-3000W/600Ω | Φ100×Length 380 |
| Damping resistor | ZG12-4000W/350Ω | Φ100×Length 230 |
| Damping resistor | ZG12-4000W/500Ω | Φ100×Length 380 |
