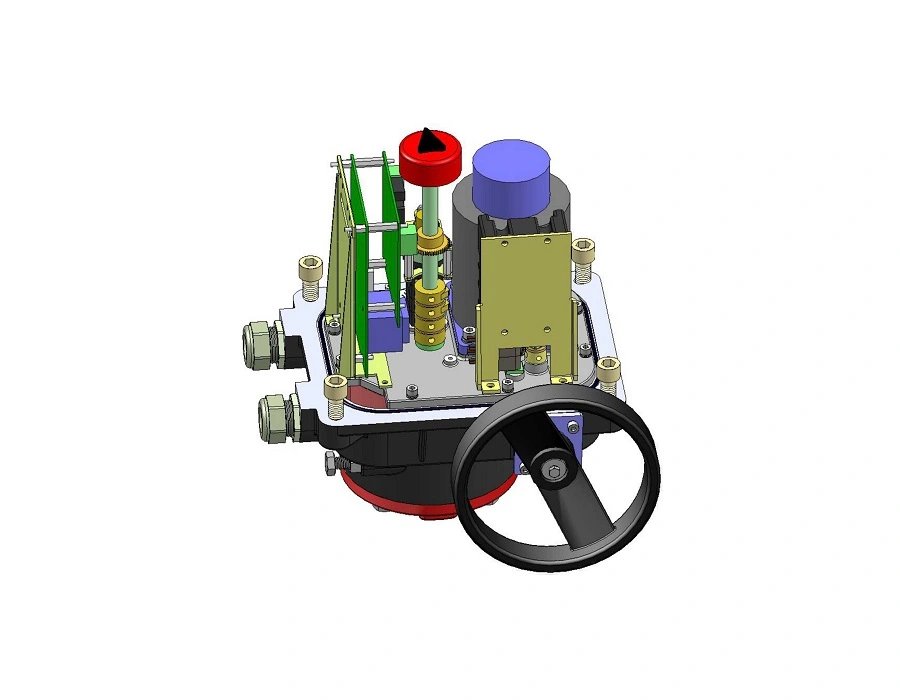

SDQ Unitary Part-Turn Electric Actuator
Series : SDQ
Name : Unitary Part-Turn Electric Actuator
Acting Form : Part-turn，rotary
Operating Mode : On-off-type
Explosion-Proof Type : BT4
Power : 380V AC；220V AC
Protection Grade : IP65
Hand Wheel : Yes
Torque : 0-800 Nm
Rotational Speed : 0.83-2.5 r/min
Scope Of Supply : Actuator Only, Not Include Valve
Brand : YEPEF
Main Technical Data :
Ambient temperature : -30℃～+60℃（accept special order)
Mode of operation : Regulating type : S5 (intermittent duty)
On-off type:S2(short-time duty)
Position repeatability deviation : ≤±1%
Torque repeatability deviation : ≤±10%
Power supply : Three-phase 380V AC±10% 50Hz
Single-phase 220V AC±10% 50Hz
Plugs :
a. Terminals : 24-pin
b. Contacts : Power/signal 500VAC/DC 16A
c. Cable section area : Power/signal 1～3mm²
Input/output signal :
a. Binary input : Voltage 24VDC±20% Current≤10mA
Pulse width＞100ms
Photoelectricity isolation
b. Binary output : Electrical independent contact
Capacity 250VAC 5A/125VDC 3A
c. Analog input : 4～20mA, Input resistance 100Ω
d. Position feedback output : 4～20mA, Load capacity≤750Ω, Degree of linearity≤0.3%
Control : Dead zone : 0.6%～9.9% adjustable
