Electric Actuator

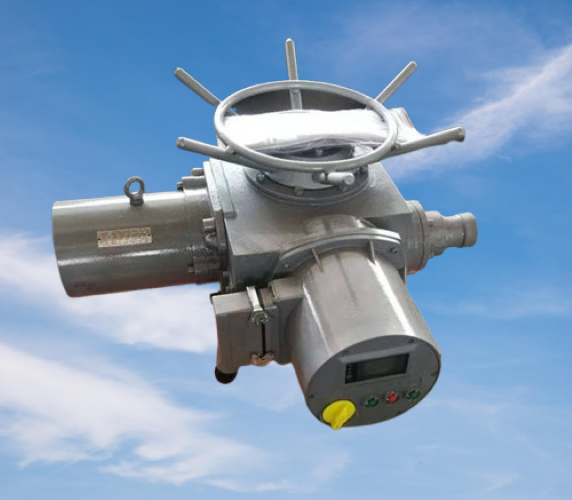

The YEPEF F‑DZW30 Electric Actuator is a heavy‑duty multi‑turn valve actuator manufactured by Yangzhou Electric Power Equipment Manufacture Factory (YEPEF, China). It is designed for gate, globe, and ball valve automation in power plants, chemical plants, and water treatment facilities.
Model : F-Dzw30
Series : DZW Valve Electric Actuator
Displacement form : Corner type
Energy Forms : electric
Movement patterns : Regulating type
Input control signal : Analog signal
Actuator protection level : IP67
Explosion-proof rating of actuator : Exdllct4
Maximum output torque : 300 N.m
Stressful environment : Atmospheric pressure
Temperature environment : -20℃~80℃
Rotational speed : 24rpm
Applicable media : Available for multiple media
Design : Grey/blue housing with handwheel, digital display, and control buttons
Acting Form: Multi‑turn, part‑turn, rotary
Operating Mode: On‑off type
Power Supply: 380 V AC or 220 V AC
Handwheel: Manual override included
Operating Mode: On‑off type
Power Supply: 380 V AC or 220 V AC
Handwheel: Manual override included
Dimensions: Approx. 400 × 300 × 250 mm (varies by torque rating)
Estimated Weight: ~80–120 kg
Estimated Weight: ~80–120 kg
Scope Of Supply : Actuator Only, Not Include Valve
Brand : YEPEF
Application:
• Power plants – steam turbine valve automation
• Chemical plants – process valve control
• Water treatment plants – pump and valve automation
• Steel mills – heavy‑duty valve actuation
