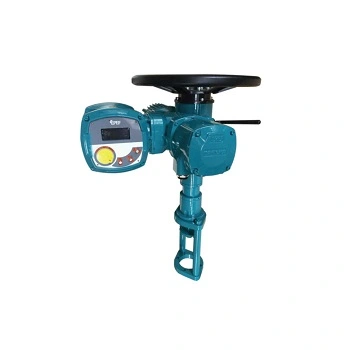

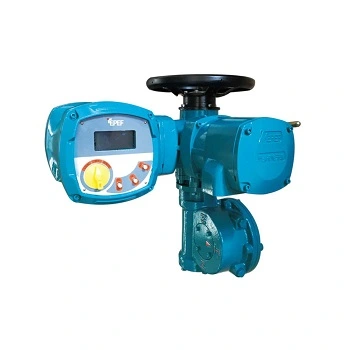

Intelligent Flexible Speed Regulation Electric Actuator
Series : 2SA8
Name : intelligent flexible speed regulation electric actuator
Acting Form : Multi-turn，part-turn，rotary，linear
Operating Mode : Regulating-type
Explosion-Proof Type : CT4
Power : 380V AC；220V AC
Protection Grade : IP68
Hand Wheel : Yes
Torque : 0-90000 Nm
Rotational Speed : 0.07-40 r/min
Scope Of Supply : Actuator Only, Not Include Valve
Brand : YEPEF
Main Technical Data :
Ambient temperature : -25℃～+70℃（accept special order)
Mode of operation : Regulating type : S5 (intermittent duty)
On-off type:S2(short-time duty)
Position repeatability deviation : ≤±5°(2SA8),≤±1°(2SQ8)
Torque repeatability deviation : ≤±7%(2SA8),≤±10%(2SQ8)
Power supply : Three-phase 380V AC±10% 50Hz
Single-phase 220V AC±10% 50Hz
Plugs :
a. Terminals : 57-pin
b. Contacts : 660VAC/DC 25A
c. Cable section area : Signal≤2.5mm², Power≤6mm²
Input/output signal :
a. Binary input : Voltage 24VDC±20% Current≤10mA
Pulse width＞100ms
Photoelectricity isolation
b. Binary output : Electrical independent contact
Capacity 250VAC 5A/125VDC 3A
c. Analog input : 4～20mA, Input resistance 100Ω
d. Position feedback output : 4～20mA, Load capacity≤750Ω, Degree of linearity≤0.3%
Control : Dead zone : 0.1%～5% adjustable
