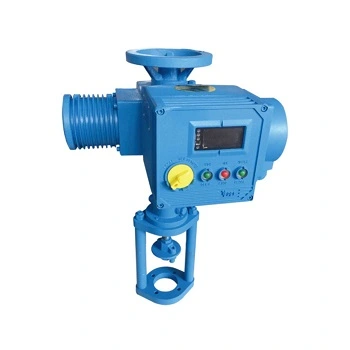

Electric Actuator
Series : 2SA3
Name : Valve Electric Actuator
Acting Form : Multi-turn，part-turn，rotary，linear
Operating Mode : Regulating-type
Explosion-Proof Type : N/A
Power : 380V AC；220V AC
Protection Grade : IP67
Hand Wheel : Yes
Torque : 0-1000 Nm
Rotational Speed : 5-40 r/min
Scope Of Supply : Actuator Only, Not Include Valve
Brand : YEPEF
Main Technical Data :
Ambient temperature : -20℃～+70℃（accept special order）
Mode of operation : Regulating type:S4 or S5(intermittent duty)
On-off type:S2(short-time duty)
Position repeatability deviation : ＜5%(rotary),≤1°(part-turn),＜0.1mm(linear)
Torque repeatability deviation : ≤7%(rotary),≤10%(part-turn)
Power supply : Three-phase 380V AC±10% 50Hz
Single-phase 220V AC±10% 50Hz
Plugs :
a. Terminals : 24-pin, 6-pin
b. Contacts : 500VAC/DC 16A, 600VAC/DC 35A
c. Cable section area : ≤2.5mm², ≤6mm²
Cable section area :
a. Motor power<1kW : ≥1mm²
b. 1kW≤Motor power＜3kW : ≥1.5mm²
c. 3kW≤Motor power＜7.5kW : ≥4mm²
d. Motor power≥7.5kW : 6mm²
Input/output signal :
a. Binary input : Dry contact
Voltage 24VDC±20% Current≤10mA
Photoelectricity isolation
b. Binary output : Dry contact
Capacity 125VAC/30VDC 5A
c. Analog input : 4～20mA, Input resistance 100Ω
d. Position feedback output : 4～20mA, Load capacity≤750Ω, Degree of linearity≤0.3%
Control : Dead zone : 0.6%～0.9% adjustable
